Utility-25 MAXX

00U25-MAXX-B

Regular price $195.00 CAD Sale price $145.00 CAD Save $50.00 CAD
/
Free Shipping on orders over $200.

Lazer Utility Series ยท Designed & Manufactured in Britain ๐Ÿ‡ฌ๐Ÿ‡ง

Compact Light. Proper Engineering.

The Utility-25 MAXX puts 4,560 raw lumens into an 80 mm work light, then controls that output across a wide, even beam. Built for trucks, canopies, service bodies and camp setups where useful light matters more than a headline number.

4,560 lmRaw output
78ยฐ ร— 78ยฐWide work beam
80 ร— 80 mmCompact footprint
Made in BritainUK design & manufacture

Light Where the Work Is

Designed for the Space Around the Vehicle.

The MAXX is not trying to be a long-range driving light. Its job is to make the area beside and behind the vehicle genuinely usable after dark.

That broad distribution makes sense on a truck cap, canopy, service body or rack, and around camp when you need to load gear, cook, recover a vehicle or simply see what you are doing.

Lazer Utility-25 MAXX wide work-light beam at night

The Lazer Difference

British Engineering, Built in Britain.

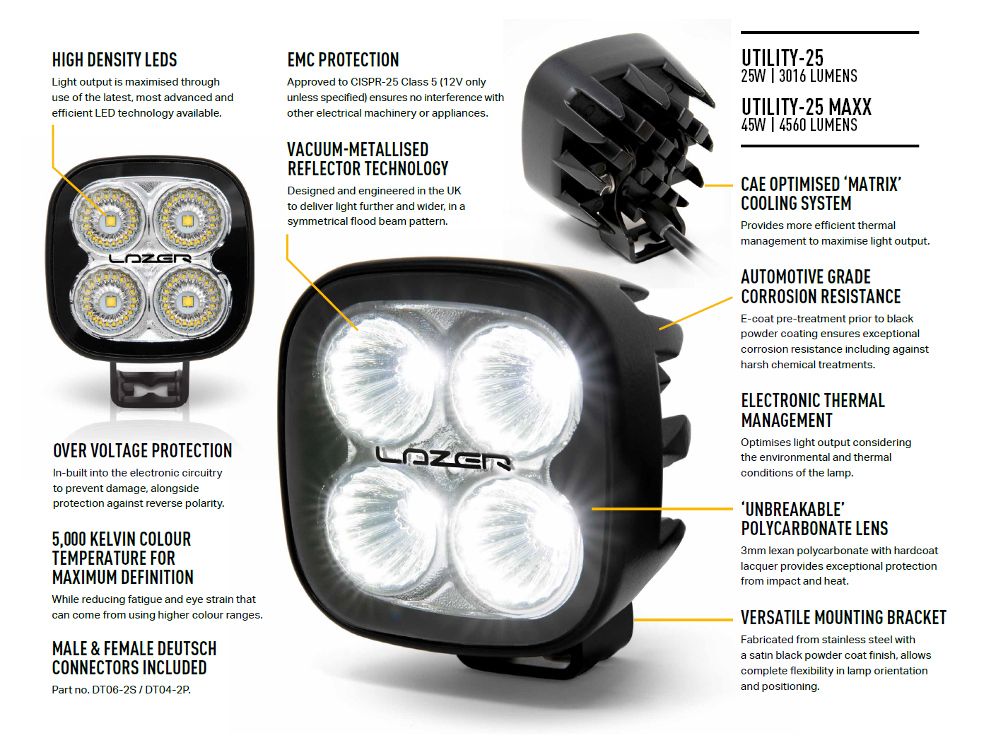

Lazer designs and manufactures the Utility-25 MAXX in Britain. The housing, optics, electronics and thermal management are developed as a complete system, with a hard-coated polycarbonate lens, automotive EMC performance, corrosion resistance and IP68/IP69K environmental protection.

That is the reason to buy Lazer: not because LEDs are difficult to find, but because controlling them properly is.

Compact by Design

Small Enough to Put Where You Actually Need It.

At just 80 ร— 80 ร— 56 mm, the MAXX can disappear into installations where a traditional work lamp becomes the focal point. The centre mounting bracket keeps the package tidy while the Deutsch DT connection suits a permanent vehicle installation.

For a clean build, that matters. The best work light is often the one you notice only when you switch it on.

Compact Lazer Utility work light installed on a vehicle

Built for the Vehicle

The Details Behind the Premium.

The specification matters because this lamp is expected to live outside, wired into a vehicle, through Canadian winters and years of use.

IP68 / IP69KProtected against dust, immersion and high-pressure wash-down.
-40ยฐC to +90ยฐCOperating range suited to serious year-round vehicle use.
CISPR-25 Class 4Automotive-grade electromagnetic compatibility.
50,000 hoursLED life backed by active thermal management.

Complete the Installation

Useful Add-Ons, Not Accessory Clutter.

The lamp includes its mounting bracket and Deutsch connector. These are the additions worth considering depending on how you plan to use it.

Installing a single MAXX? The lamp includes mating Deutsch connectors, so a universal harness is not automatically required. Your installer can wire the lamp appropriately for the vehicle and application.

Technical Specifications

Utility-25 MAXX

Raw Light Output4,560 lumens
Beam Angle78ยฐ horizontal ร— 78ยฐ vertical
1 Lux Distance71 m
Colour Temperature5,000K
Voltage10โ€“32V DC
Power / Current45W / 3.1A at 14.4V
Dimensions80 ร— 80 ร— 56 mm
Weight0.36 kg
Connector2-pin Deutsch DT with 28 cm cable
Environmental ProtectionIP68 / IP69K
OriginDesigned and manufactured in Britain

The Cap-it Take

Premium Makes Sense When the Product Earns It.

There are cheaper ways to put light around a truck. The Utility-25 MAXX makes sense when the installation is permanent and you care about beam quality, packaging, electrical compatibility and long-term durability as much as raw output.

For a compact, high-output work light on a quality build, this is the Lazer we'd start with.

See It in Action

Utility-25 MAXX

Lazer Lamps at Cap-it

Build the Lighting Into the Truck.

Shop Lazer Lamps online across Canada, or work with a participating Cap-it location to plan mounting, wiring and professional installation.
