STEDI MICRO TOUCH V2
STEDI Micro Touch V2 Dual Colour LED Work Light | 7.8" & 13.9"
White. Amber. Blended. Dimmed. One compact light that adapts to the job.
The STEDI Micro Touch V2 is one of those lighting products that solves problems you probably haven't thought about yet.
Available in 7.8" and 13.9" versions, it combines crisp 5700K white light, warm 1500K amber light, colour blending and smooth dimming in an ultra-low-profile housing.
Mount it beneath a roof rack, inside or outside a truck canopy, over a tailgate, along a camper, beside a work area or virtually anywhere a conventional work light feels too bulky.
WHY MICRO TOUCH?
A Work Light You Actually Control.
Most compact work lights give you one choice: on or off.
Micro Touch V2 adds an integrated touch interface that lets you switch between white and amber output, blend the two colour temperatures together and smoothly dim the light to match what you're doing.
Bright white when you're loading gear or working. Warm amber when you're around camp. Less output when you only need enough light to see what you're doing.
CHOOSE YOUR MICRO
7.8" or 13.9"?
Both versions share the same Micro Touch concept and wide flood beam. The difference is packaging and output. Choose the compact 7.8" when installation space is tight, or step up to the 13.9" when you want more illuminated area and output.
COMPACT
Micro Touch V2 | 7.8"
Ideal for tight installations, underside rack lighting, smaller canopies and locations where keeping the fixture almost invisible matters.
- 12W power consumption
- 1,323 effective lumens
- 197.8 mm overall length
- 0.3 kg weight
- 6 white + 6 amber LEDs
MORE OUTPUT
Micro Touch V2 | 13.9"
Better suited to larger canopies, broad work areas and roof-rack installations where additional fixture length and output can be put to use.
- 24W power consumption
- 1,679 effective lumens
- 353 mm overall length
- 0.5 kg weight
- 24 LED configuration
Compact Outside. Purpose-Built Inside.
WHY AMBER?
Maximum Brightness Isn't Always Better.
Crisp white lighting is excellent when you're working, loading gear or trying to illuminate an area clearly.
Around camp, however, full white output can feel unnecessarily harsh.
Micro Touch lets you move toward a warm 1500K amber, blend the colour temperature, and dim the fixture until the light matches the situation instead of forcing the situation to match the light.
Where Micro Touch Makes Sense
Low-profile perimeter and camp lighting.
Interior or exterior task lighting.
Light up gear, cooking and work areas.
White when working, amber when relaxing.
Compact task lighting around equipment.
Useful exterior lighting without bulky fixtures.
WIDE FLOOD OPTICS
Built to Light the Area Around You.
Micro Touch isn't designed to throw light a kilometre down the road. Its 30° vertical x 120° horizontal flood beam spreads useful illumination across the immediate work or camp area.
Beam diagram shown for the 7.8" Micro Touch V2.
SIZE COMPARISON
Choose the Size That Fits Your Build.
Both Micro Touch V2 lights share the same low-profile design and dual-colour functionality. The 7.8" is ideal where installation space is tight, while the 13.9" provides more output and a larger illuminated area.
7.8" Micro Touch V2
Overall mounted width: approx. 216 mm
13.9" Micro Touch V2
Overall mounted width: approx. 372 mm
Technical Specifications
| Specification | 7.8" | 13.9" |
|---|---|---|
| Operating Voltage | 10-28V DC | 10-28V DC |
| Power Consumption | 12W | 24W |
| Effective Lumens | 1,323 lm | 1,679 lm |
| Colour Temperature | 1500K-5700K | 1500K-5700K |
| Beam Pattern | 30° x 120° Flood | 30° x 120° Flood |
| IP Rating | IP68 | IP68 |
| Housing | Extruded Aluminium | Extruded Aluminium |
| Lens | Hardened Polycarbonate | Hardened Polycarbonate |
| Housing Dimensions | 197.8 x 25.9 x 40.6 mm | 353 x 26.3 x 39.2 mm |
| Approx. Overall Mounted Width | 216 mm | 372 mm |
| Weight | 0.3 kg | 0.5 kg |
| Cable Length | 400 mm | 400 mm |
| Rated Lifetime | 30,000 hrs | 30,000 hrs |
| Certification | CISPR25 | CISPR25 |
| Warranty | 24 Months | 24 Months |
WHAT'S INCLUDED
Everything You Need at the Light.
- 1 x STEDI Micro Touch V2 Dual Colour LED Work Light
- 2 x 46 mm side mounting brackets
- Mounting bolts, nuts and washers
- Male and female Deutsch connectors
Vehicle wiring, switches and application-specific mounting brackets may be required depending on your installation.
See Micro Touch in Action
See the touch interface, colour blending and dimming functionality in real-world use.
PROFESSIONAL INSTALLATION
The Best Installation Is the One You Barely Notice.

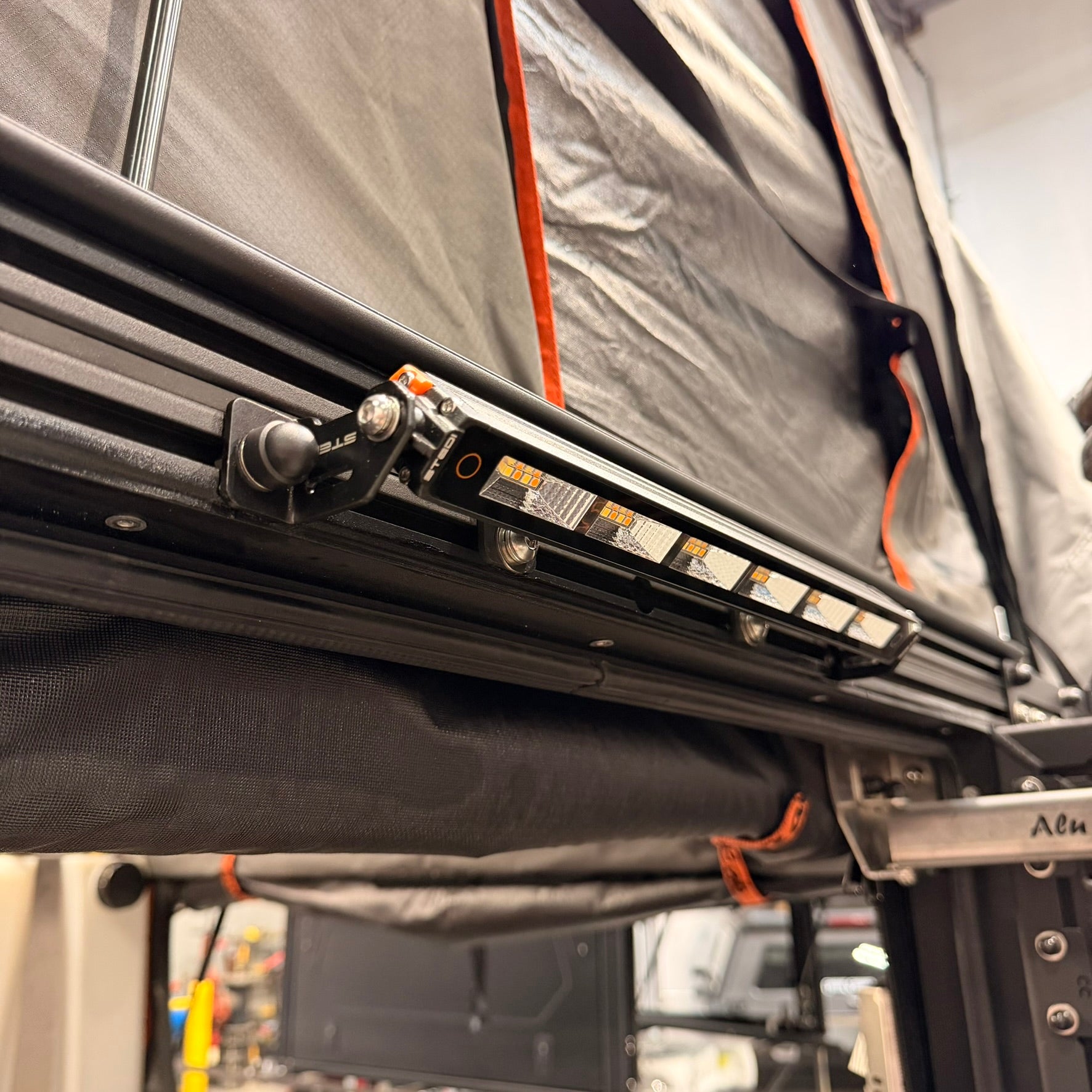

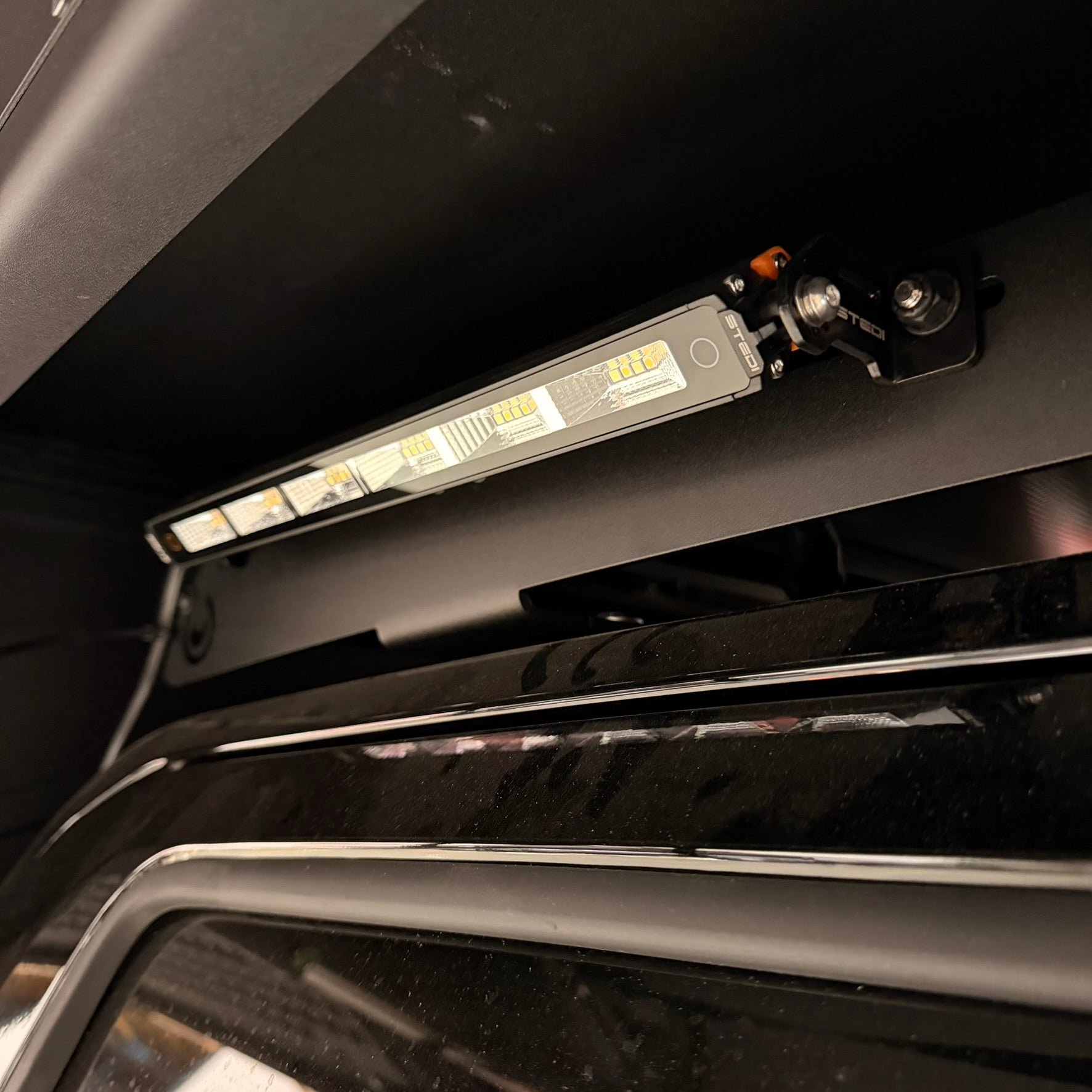

Micro Touch lends itself to extremely clean installations because of its low-profile housing.
Wiring can be routed through racks, canopies and vehicle structures, while optional Micro V2 ecosystem brackets support common rack systems and custom mounting applications. STEDI also supports the Micro V2 with compatible wiring and mounting accessories, making it easier to integrate into a finished vehicle build.
Participating Cap-it locations can help determine the right location, switching and wiring strategy, then professionally integrate the lights into your build.
THE CAP-IT TAKE
This Is the Light You'll Find More Uses for After You Install It.
Micro Touch isn't the light you buy because you need to see farther down the highway.
It's the light you buy because you're tired of loading gear, cooking, working or setting up camp in the dark.
We particularly like it for truck canopies and roof-rack installations. White gives you proper task lighting when you're working. Amber lets you tone everything down around camp. Dimming means you aren't blasting full output when you don't need it.
Small enough to disappear into the build. Useful enough that you'll wonder why you didn't install it sooner.
