STEDI WORK & CAMP LIGHTING
Small Light. Serious Utility.

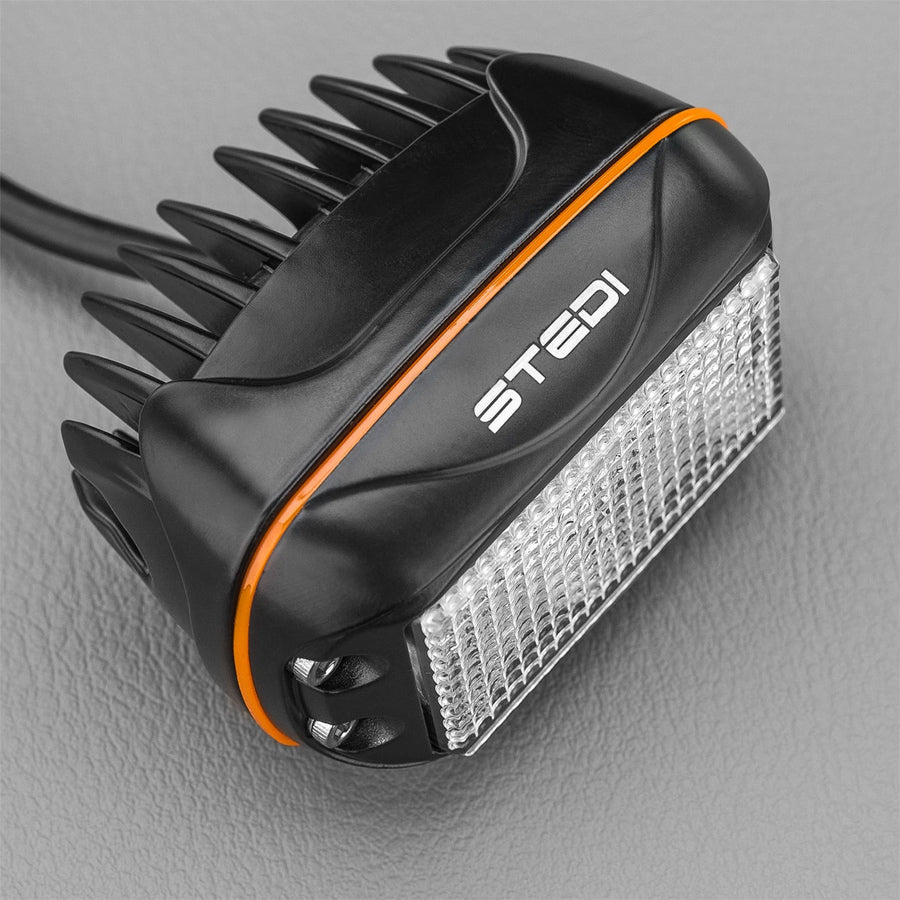

Compact 10W flood lighting built for reverse lights, truck and canopy work areas, and camp setups. Two Osram LEDs provide a broad 40° beam from a lightweight aluminium housing.
Purpose-Built for Tough Conditions

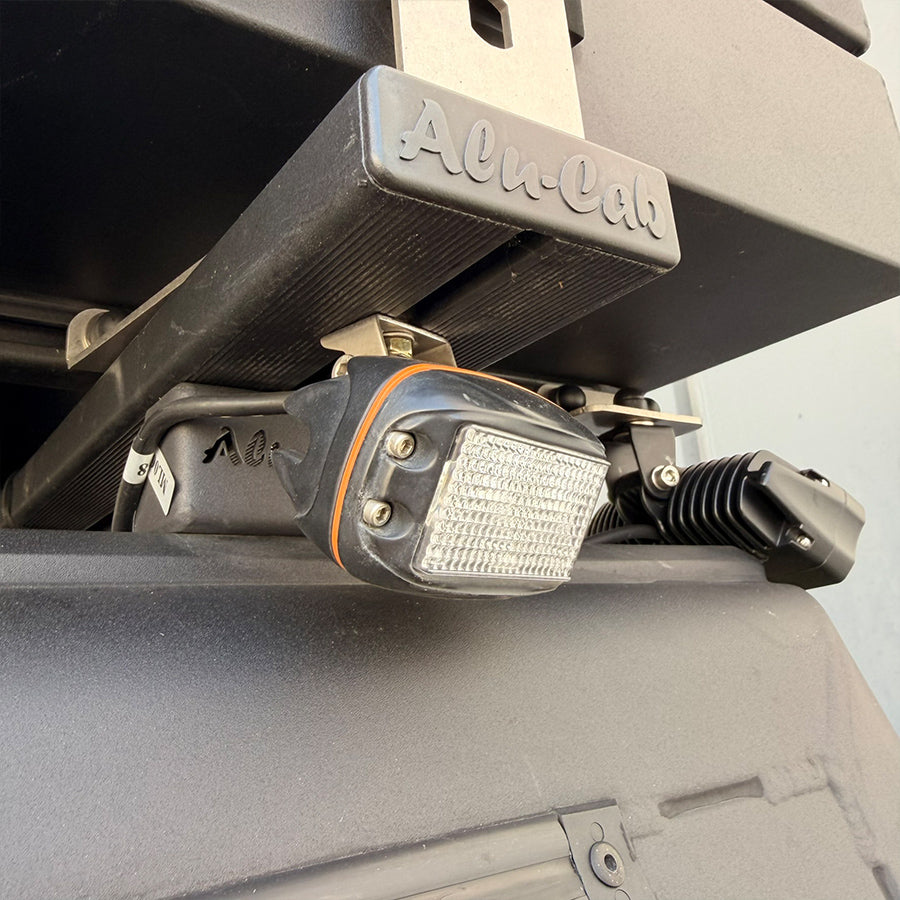

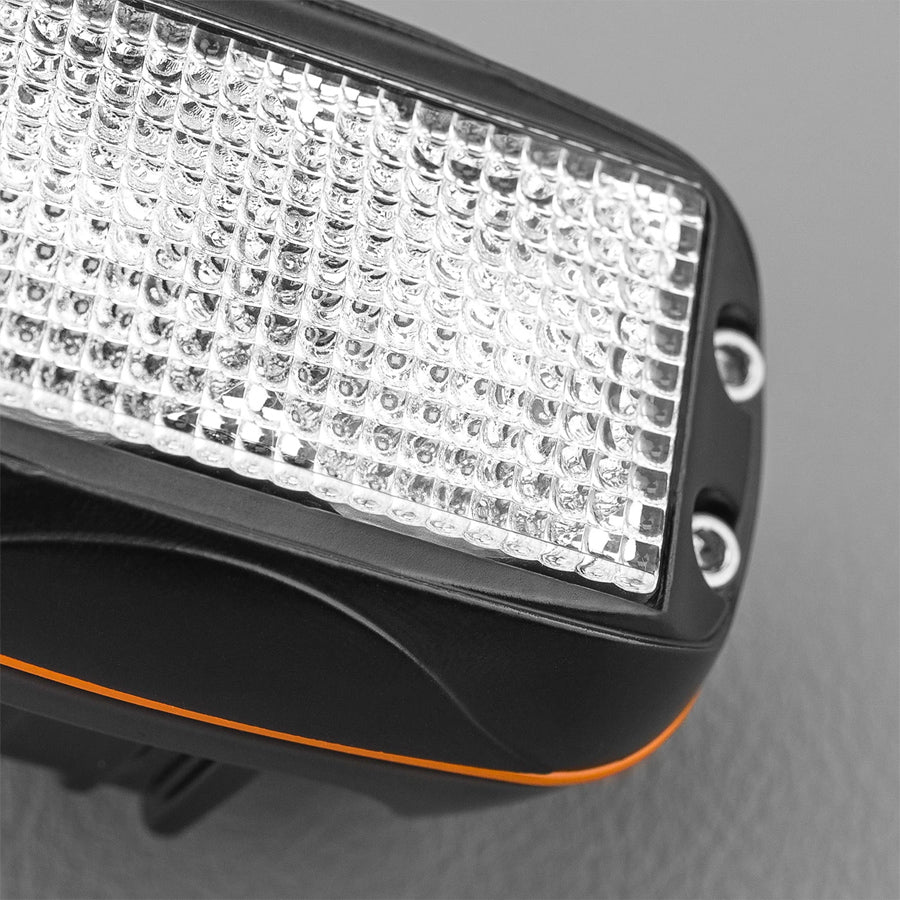

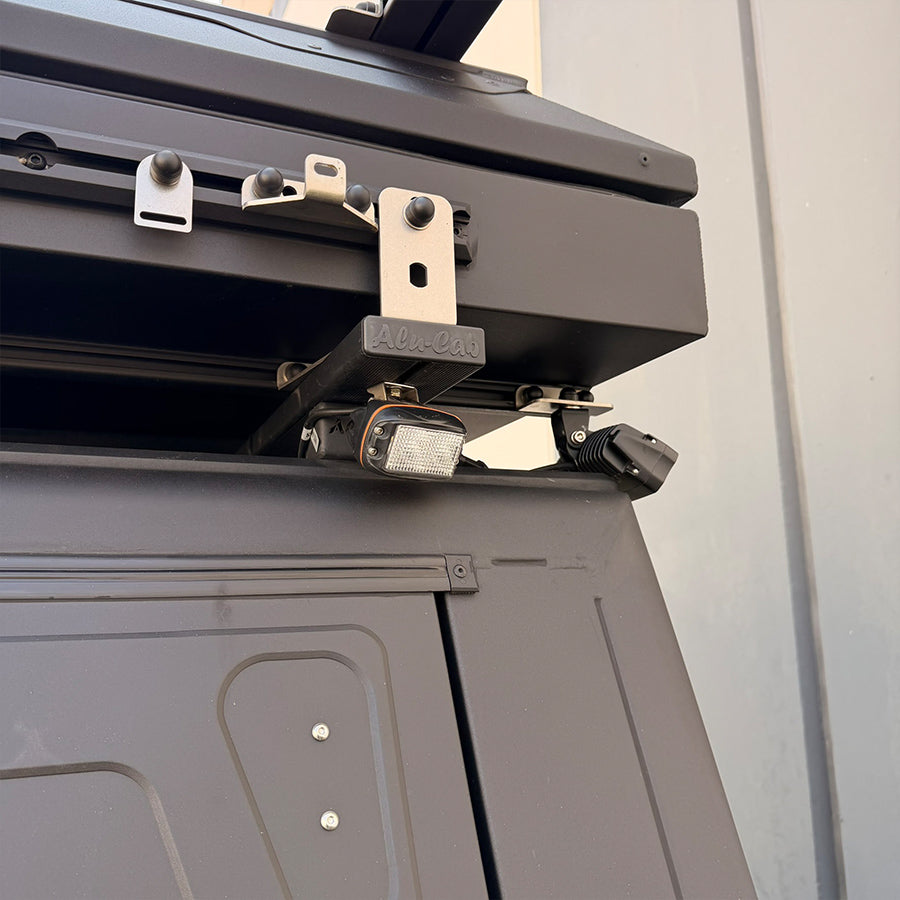

Water-resistant connectors, a stainless-steel mounting bracket and the upgraded Mini V2 lens fasteners bring confidence to installations on working vehicles and off-road builds.
SEE IT IN ACTION
STEDI 10W Mini V2 | Real-World Lighting
See the compact Mini V2 work light in action, including its practical flood lighting applications.
Technical Specifications
| SKU | MINI-OSRM10W |
|---|---|
| LED configuration | 2 × 5 W Osram |
| Rated power | 10 W |
| Raw lumens | 1,000 lm |
| Colour temperature | 5700 K |
| Beam | 40° flood |
| Operating voltage | 12 V / 24 V |
| Current draw | 0.5 A at 13.8 V |
| Water protection | IP67 |
| Operating temperature | -40°C to 60°C |
| Lens | Optical polycarbonate |

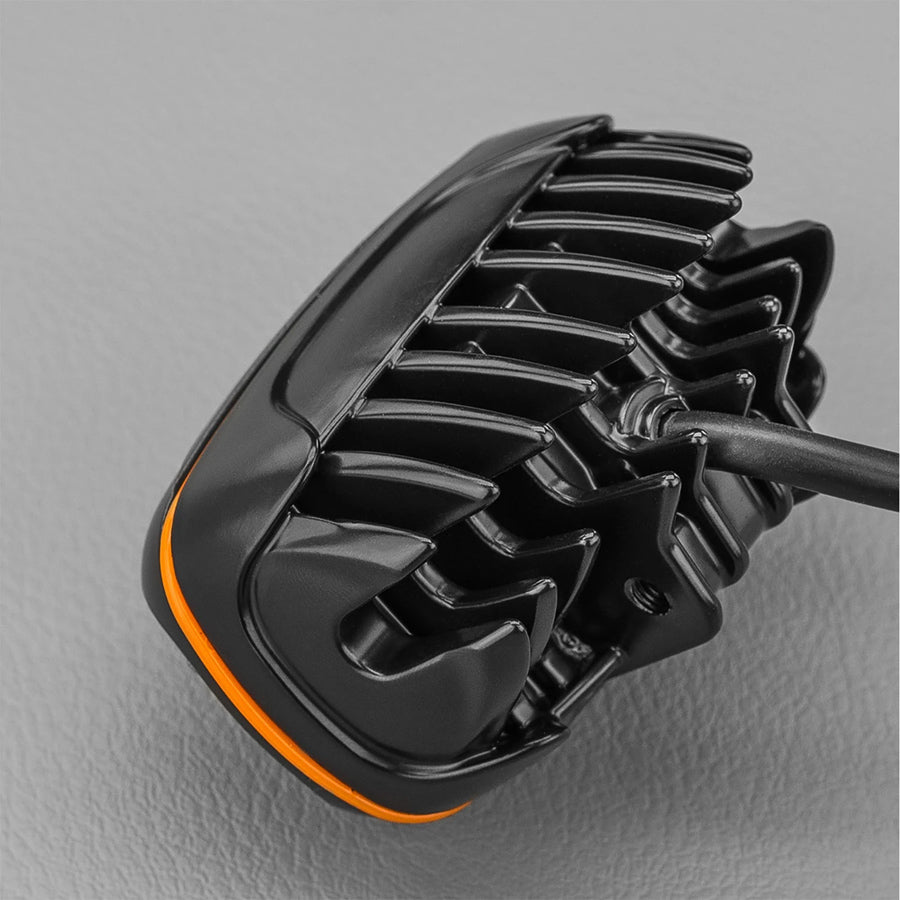

| Housing | Cast aluminium |

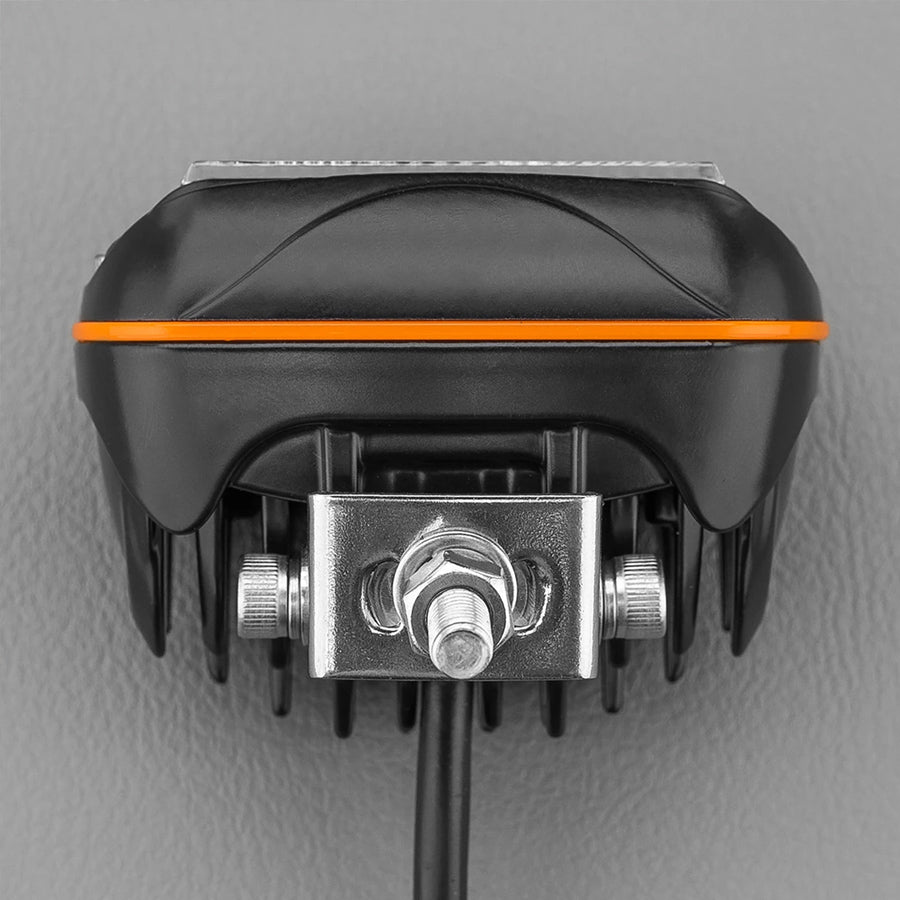

| Mounting | Stainless-steel bracket |
| Dimensions (W × H × D) | 77 × 48 × 55 mm |
| Weight | 0.3 kg |
| Rated lifespan | 50,000+ hours |
What's Included
- 1 × STEDI 10W Mini V2 LED Flood Light (5700 K)
- 2 × M6 bolts
- 1 × nyloc nut and 1 × standard nut
- 1 × flat washer and 1 × lock washer

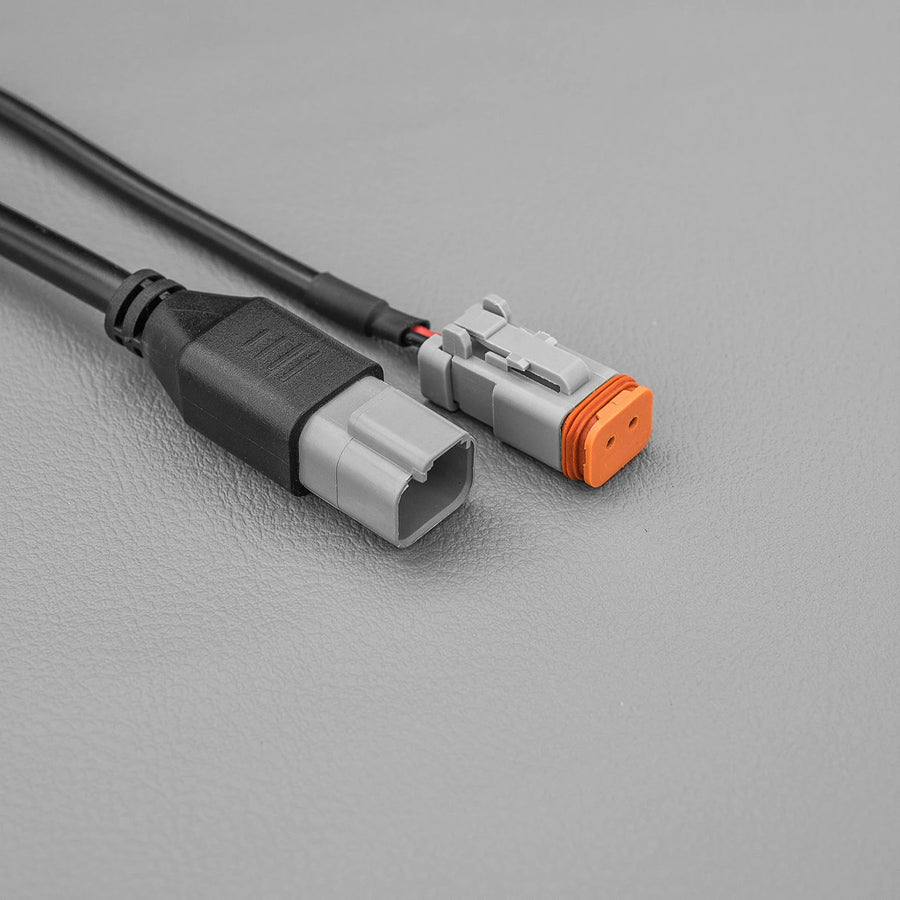

- Male and female Deutsch connectors
CAP-IT INSTALLATION
Buy the Light. Have Cap-it Install It.
A neat install makes all the difference. Ask a participating Cap-it location about mounting, wiring and switching your STEDI lights on your truck or canopy.
Frequently Asked Questions
+Is this a driving light or a work light?
The Mini V2 is a 40° flood work light, designed for nearby illumination rather than long-distance driving.
+Can I use it on a 24 V truck?
Yes. STEDI specifies 12 V and 24 V compatibility.
+Does it come with connectors?
Yes. STEDI lists male and female waterproof Deutsch connectors among the included components.
+How is it mounted?
The package includes mounting hardware and a stainless-steel bracket; confirm clearance and switch/wiring requirements for your vehicle.
THE CAP-IT TAKE
A Lot of Light in a Small Package.
A sensible choice for compact reverse lighting and utility applications. If you need more reach or light output, compare our STEDI G1 and G4 work lights.
