Single Light Wiring Kit (2-Pin, Superseal, 12V)

Single Light Wiring Kit (2-Pin, Superseal, 12V)


Regular price $65.00 CAD
Free Shipping on orders over $200.

Single Light Wiring Kit (2-Pin, Superseal, 12V)
by Lazer Lamps - Made in the UK 🇬🇧

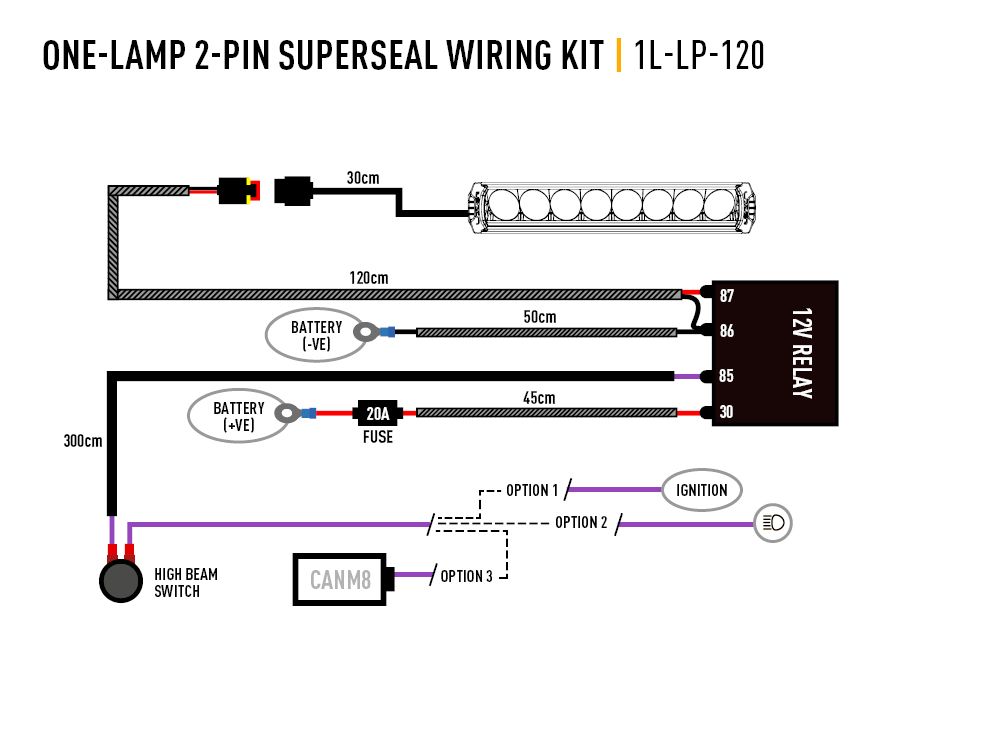

One-Lamp wiring kit for Lazer Lamps High Performance LED lights. The setup is quick, easy, and reliable with 2-pin Superseal connection and no configuration procedures. The kit features a 12V relay (in waterproof housing), fuse, a battery terminal at one end, and 1.2m of flex on the lamp cable, and allows for the operation of Lazer products either in parallel with the standard lighting on the vehicle, and/or via an independent switch which can be mounted inside your vehicle.

All Lazer lamps are sold with a pre-wired female connector attached to the male connector of the lamp harness, to facilitate wiring in to your vehicle system.

  • ST Evolution (All Products)
  • Triple-R 750 Elite (Gen2)
  • Triple-R 850 Elite (Gen2)
  • Triple-R 1000 Elite (Gen2)
  • Linear-6 (Std / Elite)
  • Linear-12 (Std / Elite)
  • Linear-18 (Std / Elite)
  • Linear-36
  • Linear-42
  • Linear-48
  • Sentinel 7''
  • Sentinel 9'' Elite

Product Features

  • One-Lamp Wiring Kit for Lazer Lamps LED High Performance Lights (see product text for compatibility)
  • 1.2m cable length
  • Includes 12V relay and 20 amp fuse
  • Superseal connections
  • Includes optional on/off switch for independent operation of high beam
  • Braided cable sections for added protection in engine bay

Single-Lamp Wiring Kit (2-Pin, Superseal, 12V)

Optimised for use with all LR Series LED lights or ST4 Evolution lig
