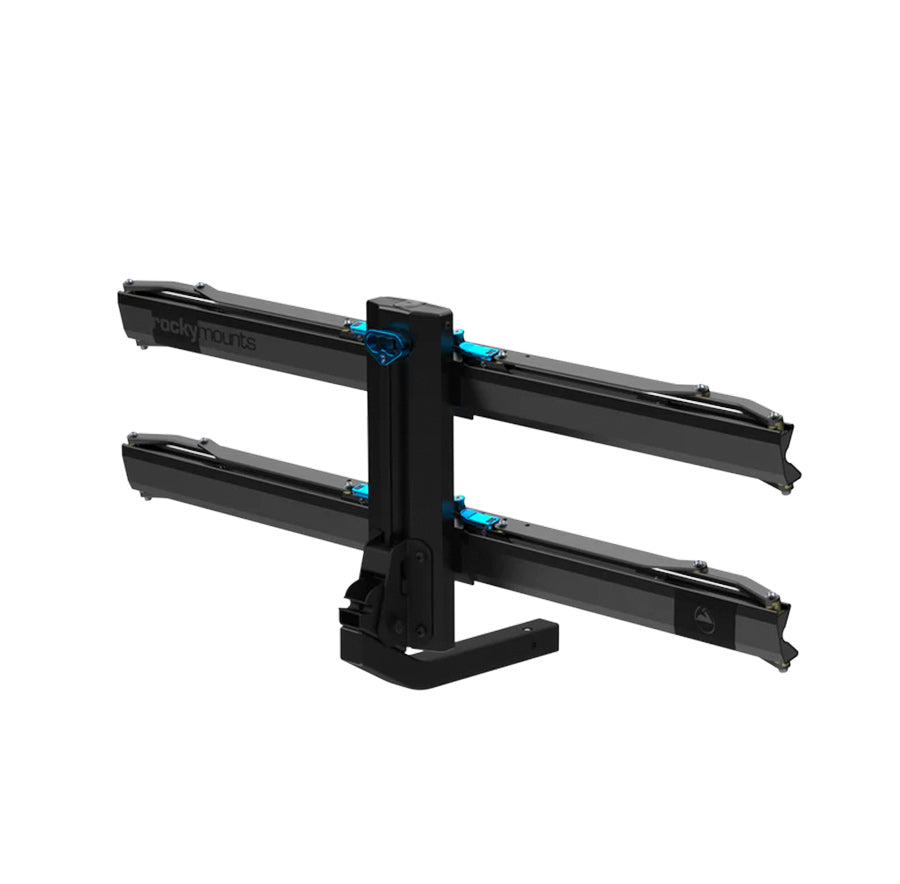

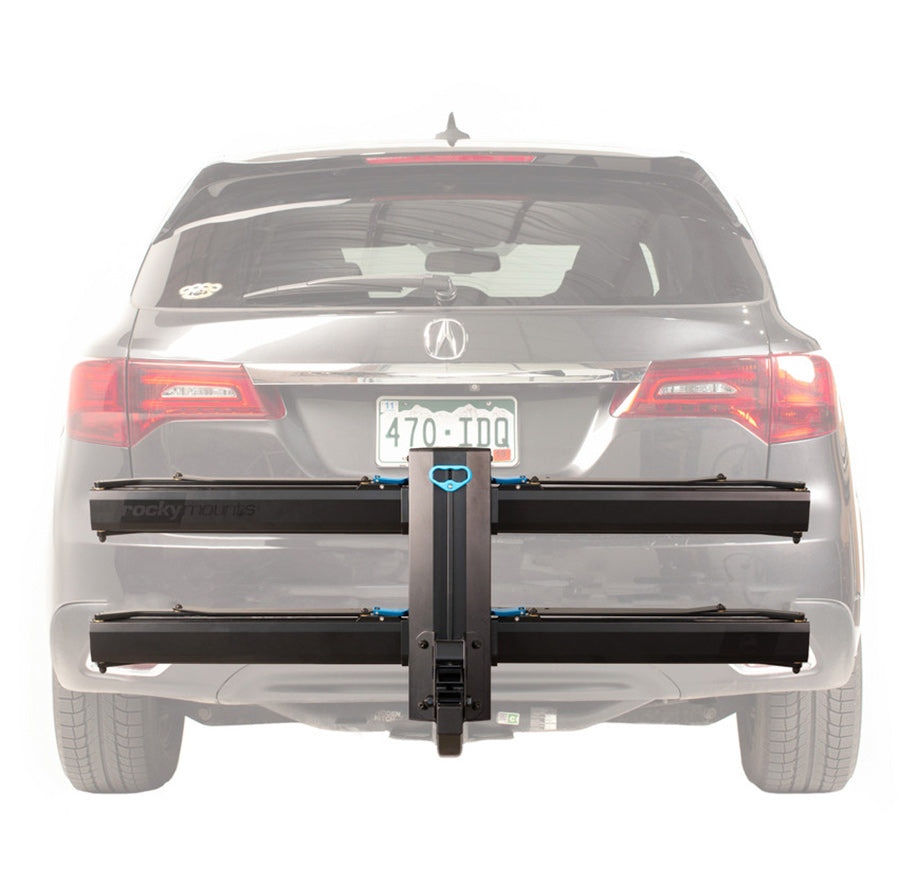

RockyMounts GuideRail 2 Bike Rack
Premium bike protection with zero frame or fork contact.

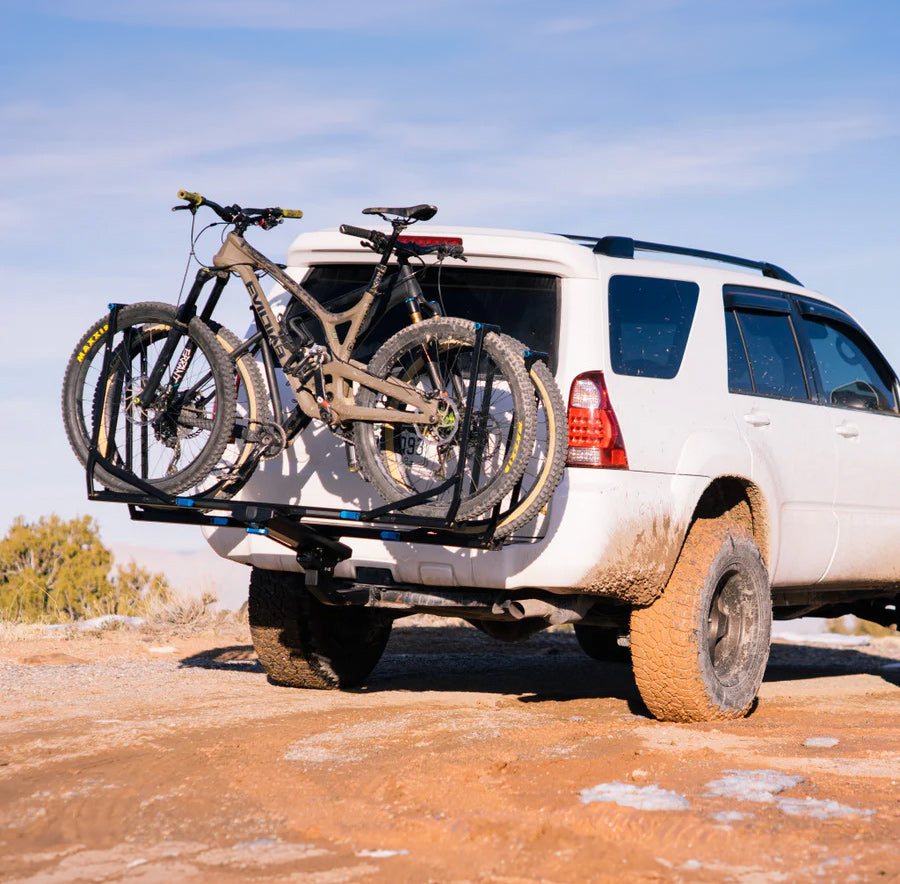

The RockyMounts GuideRail is built for riders who want a stronger, cleaner, and more secure platform hitch rack. Using dual load arms, the GuideRail holds bikes by the wheels only, eliminating contact with the frame and fork.
That makes it an excellent choice for carbon fibre bikes, mountain bikes, road bikes, gravel bikes, and most e-bikes where frame protection matters.
With a 60 lb capacity per bike, premium anti-wobble hitch system, included security chain, and asymmetric bike loading to reduce handlebar interference, the GuideRail is RockyMounts’ premium solution for serious riders.
Why Choose the GuideRail?
-
Zero Frame or Fork Contact
Dual load arms secure each bike by the wheels only, protecting paint, carbon frames, suspension forks, and specialty finishes. -
Premium Platform Rack Design
Minimal plastic, strong construction, and a clean appearance that looks right on modern vehicles. -
Asymmetric Bike Loading
Bikes can be offset to help reduce handlebar, saddle, and component interference. -
E-Bike Compatible
Carries up to 60 lbs per bike, 120 lbs total. -
Tilts for Rear Access
Tilts down 30 degrees to help access your hatch or tailgate. -

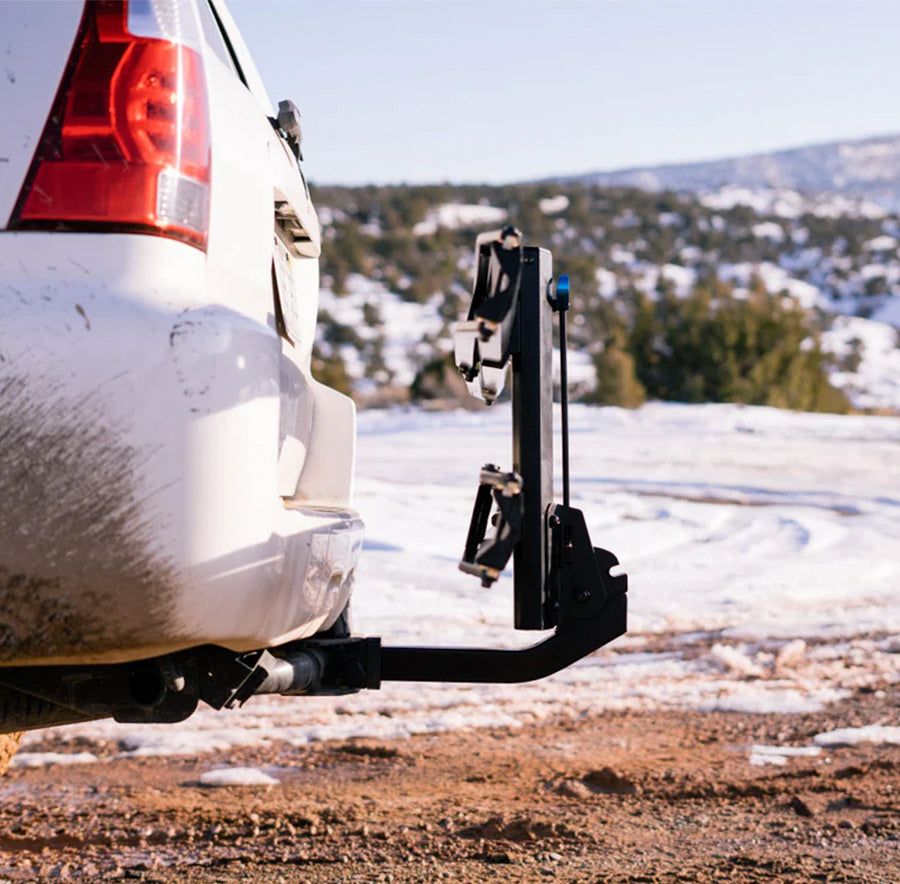

Folds Up When Not in Use
Folds flat against the vehicle for a cleaner profile. -
Premium Security Included
Includes a robust security chain for added peace of mind. -
Stable Hitch Fit

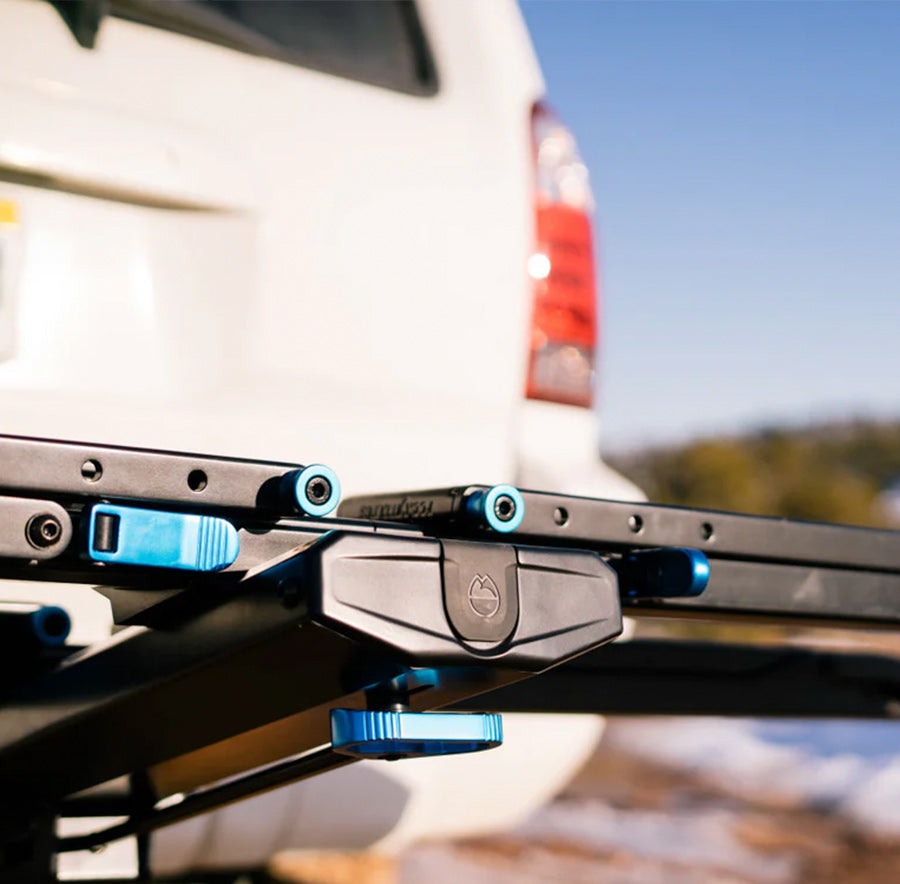

Premium 3-axis anti-wobble hitch system helps reduce movement while driving.
Important Fitment Notes
- 2" Hitch Model: Fits 2" hitch receivers and can be expanded to 3 bikes with the GuideRail Add-On.
- 1.25" Hitch Model: Fits 1.25" hitch receivers and is not compatible with the Add-On.
- Add-On Capacity: 2" model only, up to 45 lbs on the third tray.
- Bike Fender Note: Not compatible with bikes equipped with fenders.
- Cargo Van Note: A fit check is recommended for cargo vans. Depending on hitch placement and handlebar width, an 8" hitch extension may be required.
Specifications
- Bike Capacity: 2 bikes
- Weight Capacity: 60 lbs per bike, 120 lbs total
- Expandable: Yes, 2" hitch version only, up to 3 bikes with Add-On
- Tire Compatibility: 19 mm to 3.0" wide tires
- Wheel Size: 20" to 29"
- Wheelbase Range: 36" to 55"
- Rack Weight: 49 lbs
- Shipping Weight: 61 lbs
Cap-it Take
The GuideRail is the premium choice in the RockyMounts lineup for riders who care about bike protection, stability, and clean design.
Compared to the MonoRail, the GuideRail steps up with dual load arms, zero frame and fork contact, premium security, and a more refined loading system. It is best suited for riders carrying higher-end mountain bikes, road bikes, gravel bikes, carbon bikes, and e-bikes where protecting the bike matters as much as transporting it.
If you want one of RockyMounts’ most refined platform hitch racks, this is the one to choose.
