Old Man Emu MT64 Suspension Kit – Toyota Land Cruiser (2024+)
The Old Man Emu MT64 Suspension Kit is engineered for adventure, offering a bolt-on suspension upgrade with large-bore monotube shocks, adjustable lift height, and digressive valving for smooth control over rough terrain. Designed for the 2024+ Toyota Land Cruiser, this system delivers exceptional ride quality whether you're commuting, towing, or tackling backcountry routes.
Choose from two load-specific configurations to best match your vehicle build—whether you’re running light or hauling gear daily.
Choose Your Suspension Setup:
| Kit Option | Recommended For | Rear Coil Rating | Coil Part # |
|---|---|---|---|
| Medium Load (Most Popular) | Stock or lightly equipped builds | Standard | 3338 |
| Heavy Load (440 lb) | Constant rear load (e.g. drawers, fridge, gear) | 440 lbs constant | 3339 |
🔧 All kits include the same front coilover setup. The only difference is the rear coil spring selection based on load requirements.

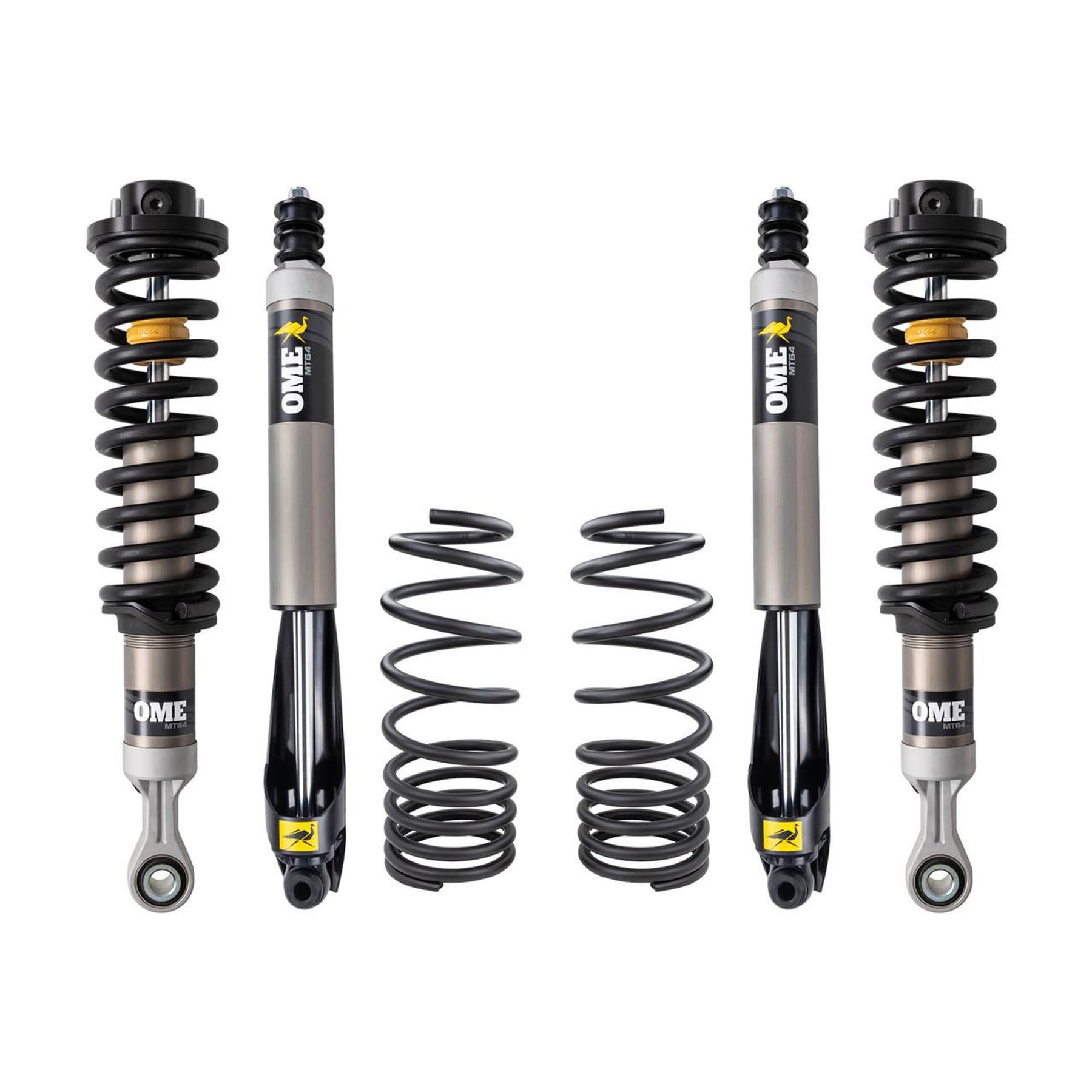

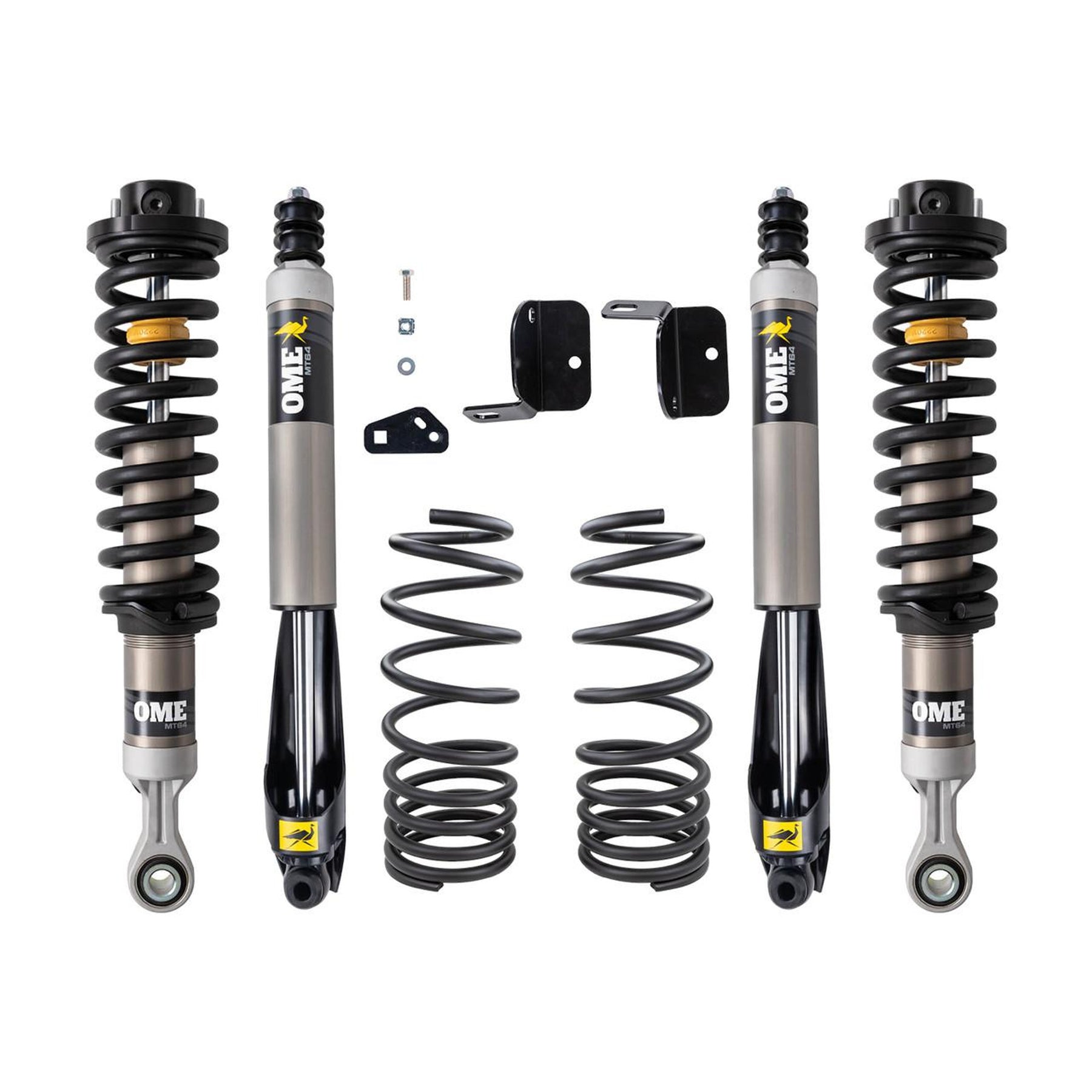

What’s Included in Every Kit:
-
MT64 Front Coilover Struts (LH & RH) - Part #: MT64996003 (x2)
-
MT64 Rear Shocks - Part #: MT64601041 (x2)
-
Rear Coil Springs (based on selected variant) - Part #: 3338 or 3339
-
Brake Line Spacer Kit - Part #: FK134
-
Rear Sway Bar Bracket Kit - Part #: FK137

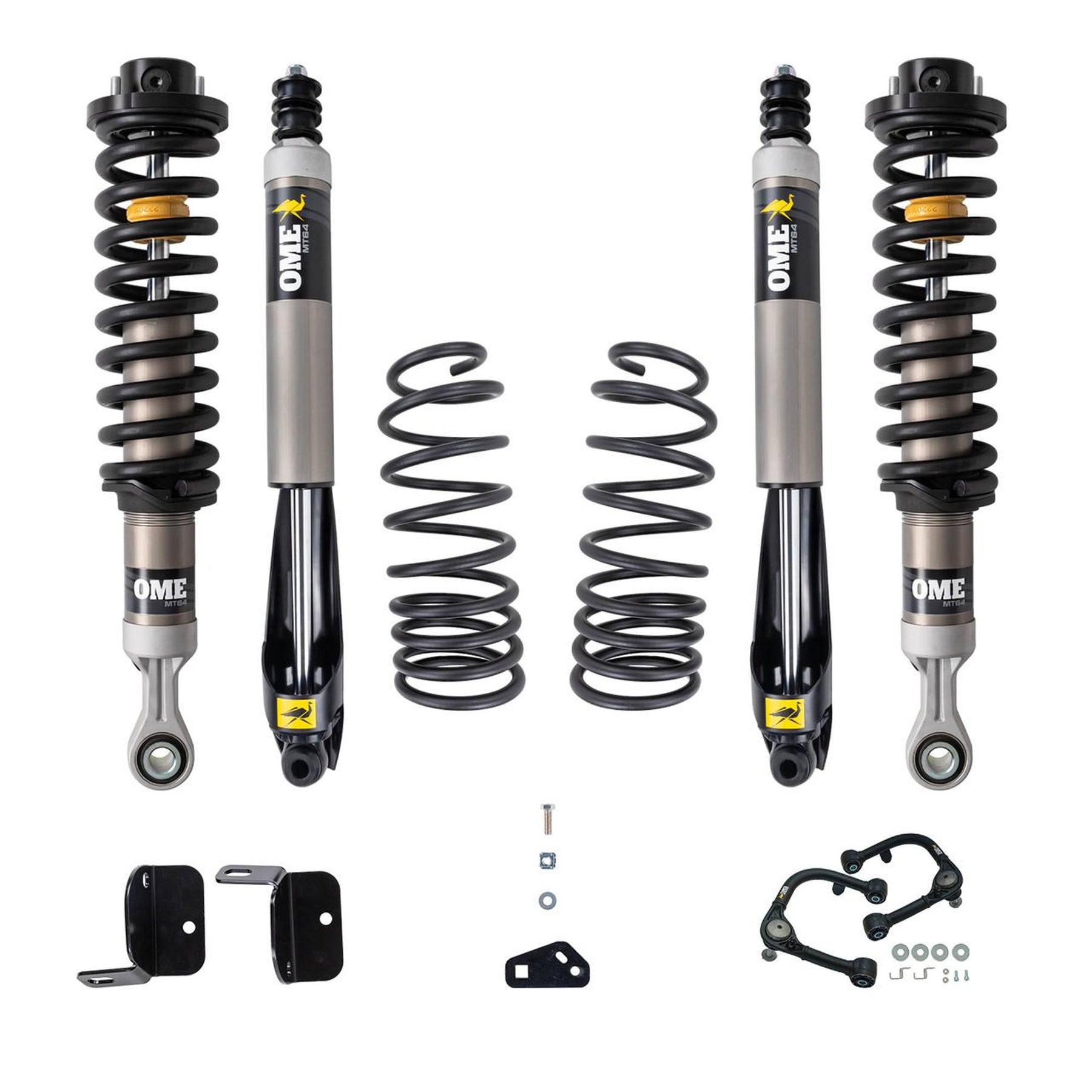

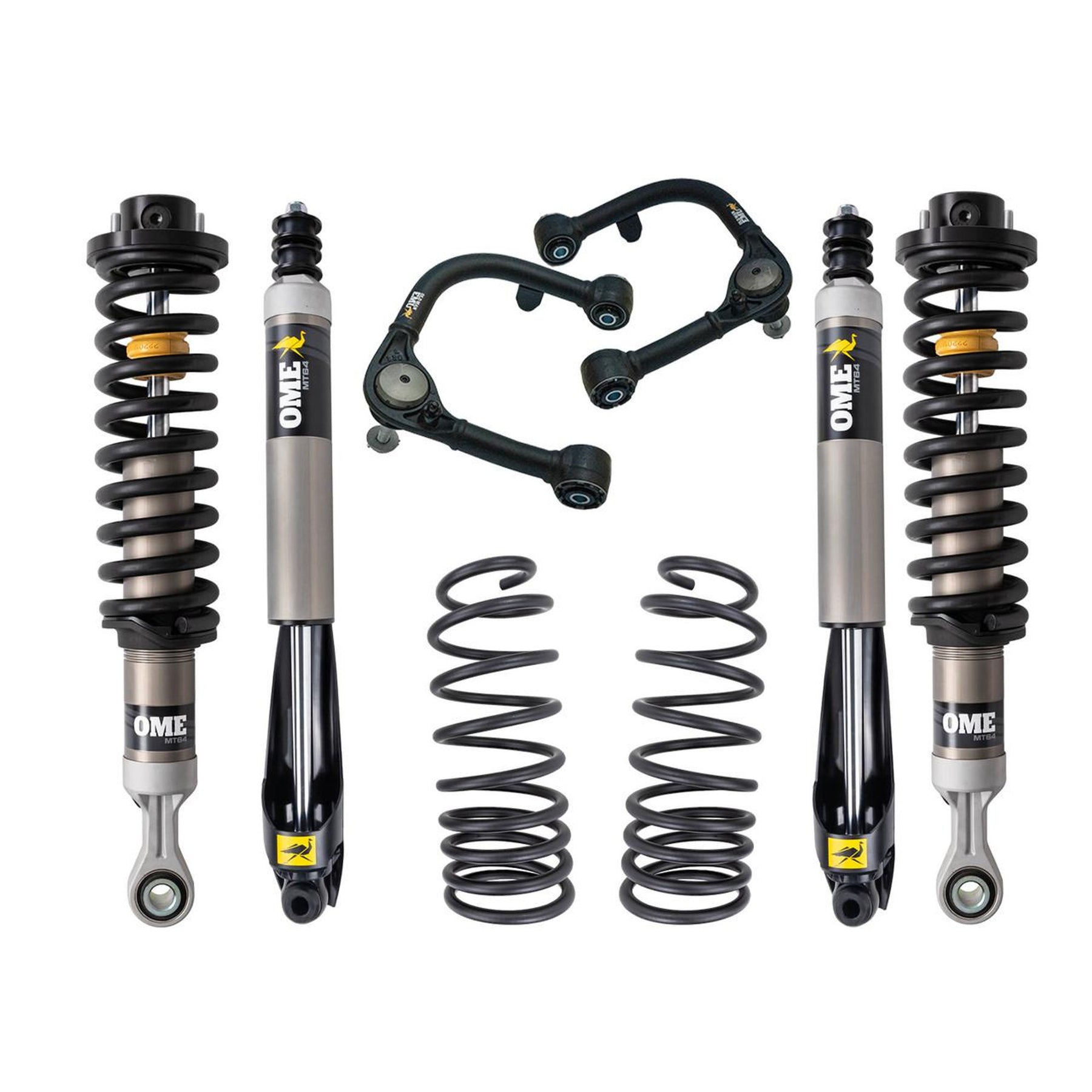

✅ Optional Add-On: ARB Upper Control Arms – Part #: UCA0021
Recommended for vehicles running a 3" front lift to maintain proper geometry and alignment.

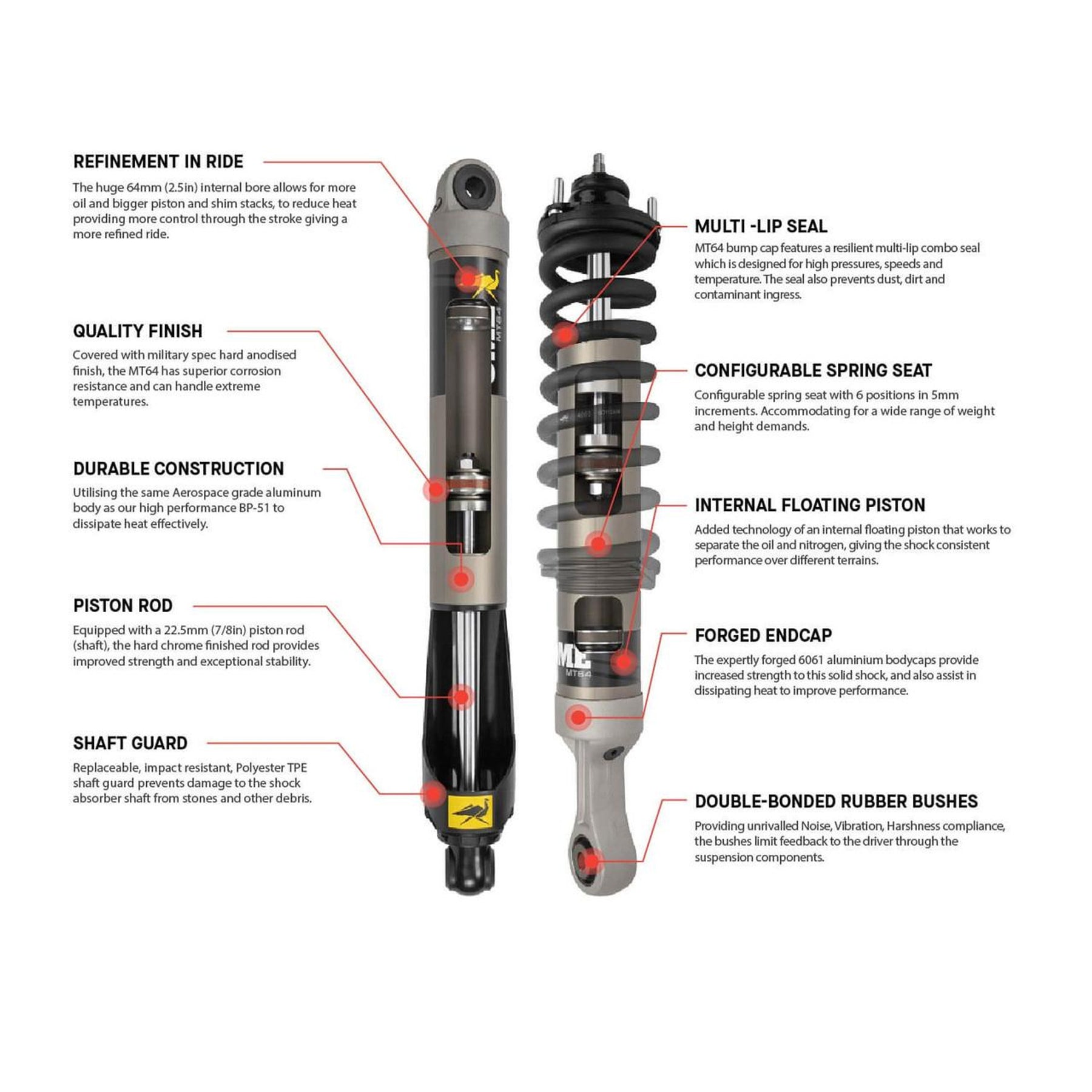

MT64 System Highlights:
-
Front lift range: 1.75" to 3" via 6-position adjustable snap ring
-
Rear lift: 2"
-
2.8" aluminum monotube body for improved oil volume and precise tuning
-
Digressive valving for quick adaptation to terrain changes
-
Hydraulic top-out zone for full-extension damping
-
Aerospace-grade aluminum body: dissipates heat 15x faster than steel
-
Fully assembled coilovers for easy bolt-in installation
-
Tuned specifically for the 2024+ Toyota Land Cruiser (North American spec)
