MAXTRAX Recovery System
A Lightweight Winching Connection.

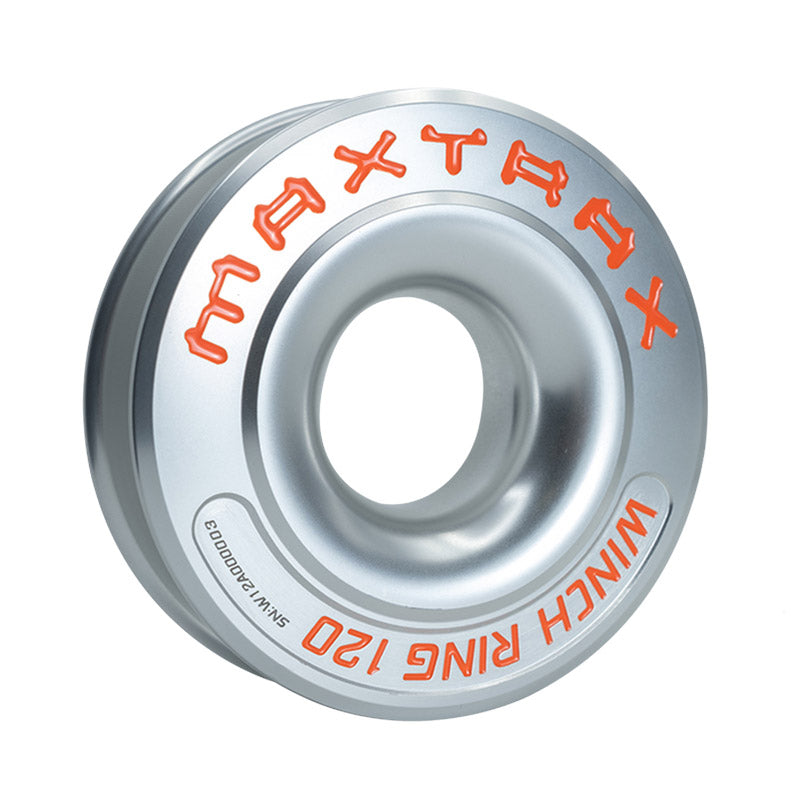

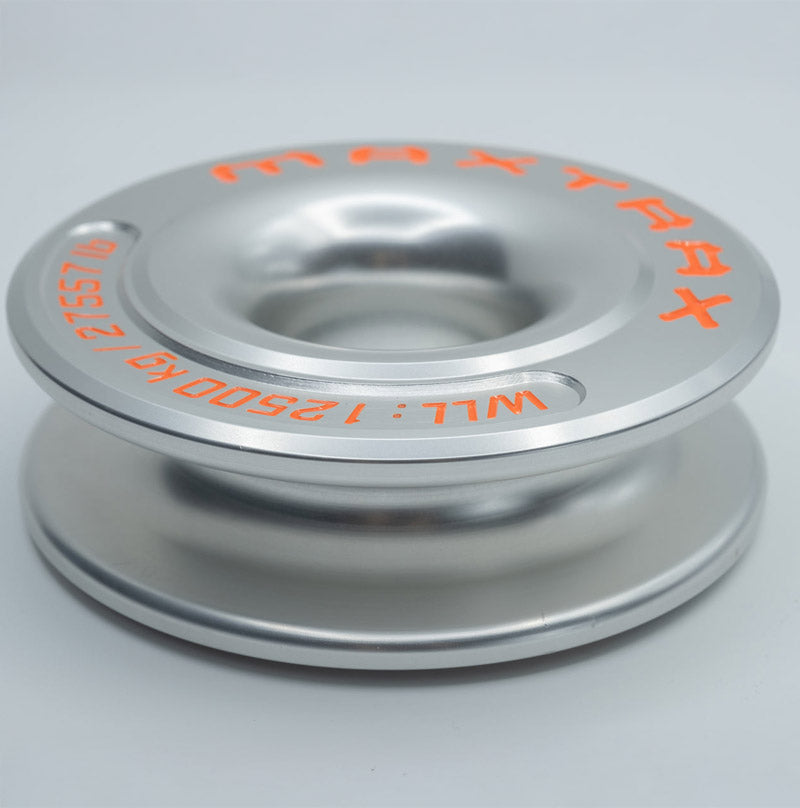

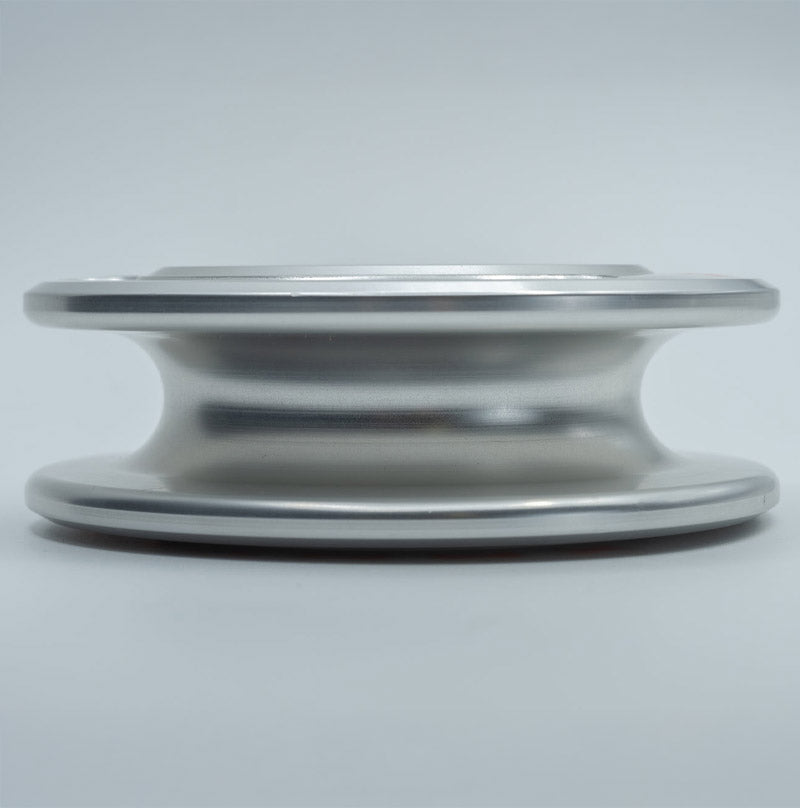

Winch Ring 120 is precision machined from 6061 billet aluminium for synthetic winch rope and soft-shackle recovery setups.
120 mmRecovery-ring diameter.
27,557 lb WLL12,500 kg working load limit.
137,806 lbDestructive test break load.
6061 AluminiumMachined and anodized for corrosion protection.
Built Around Soft Recovery
Winch Ring 120 works with synthetic rope and compatible MAXTRAX soft shackles, giving modern winch setups a lighter alternative to traditional steel-heavy rigging.
Core Shackle → Static Rope → All MAXTRAX →
MAXTRAX at Cap-it
Part of Cap-it's complete MAXTRAX range in Canada, including recovery boards, ropes, shackles, mounts and recovery-system hardware.
Manufacturer Details & Safety Guidance
- Precision engineered from 6061 billet Aluminum.
- Polished and brushed Aluminum finish.
- Anodized finish for corrosion protection.
- 120mm Diameter.
- Designed for use with soft shackles and synthetic winch ropes.
- WLL: 12,500 kg / 27,557 lbs
- Destructive Test Break Load: 62,508 kg / 137,806 lbs
- Fits standard 50mm / 2 inch tow hitch receivers
- Australian designed, engineered and tested
- Backed by a comprehensive Quality Assurance Program, each ring is individually x-rayed for inclusions.
