MAXTRAX Recovery System
Smooth Power When Traction Alone Isn't Enough.

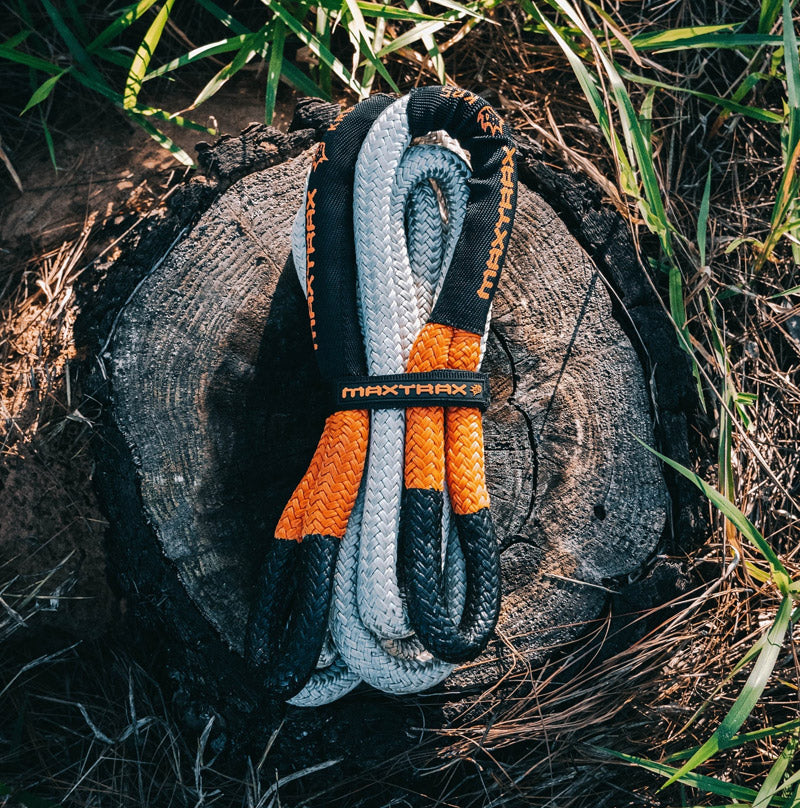

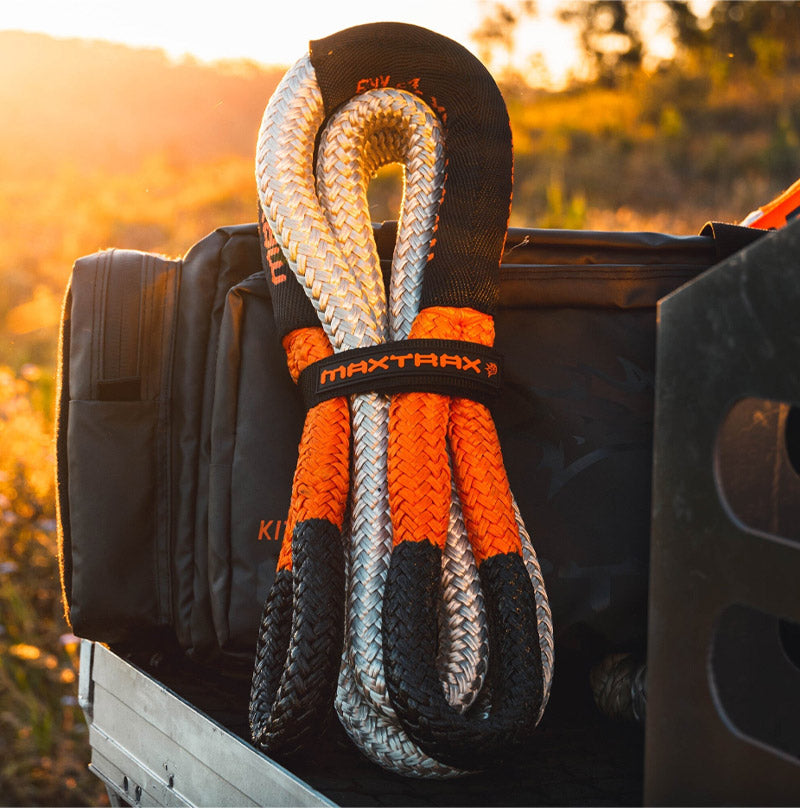

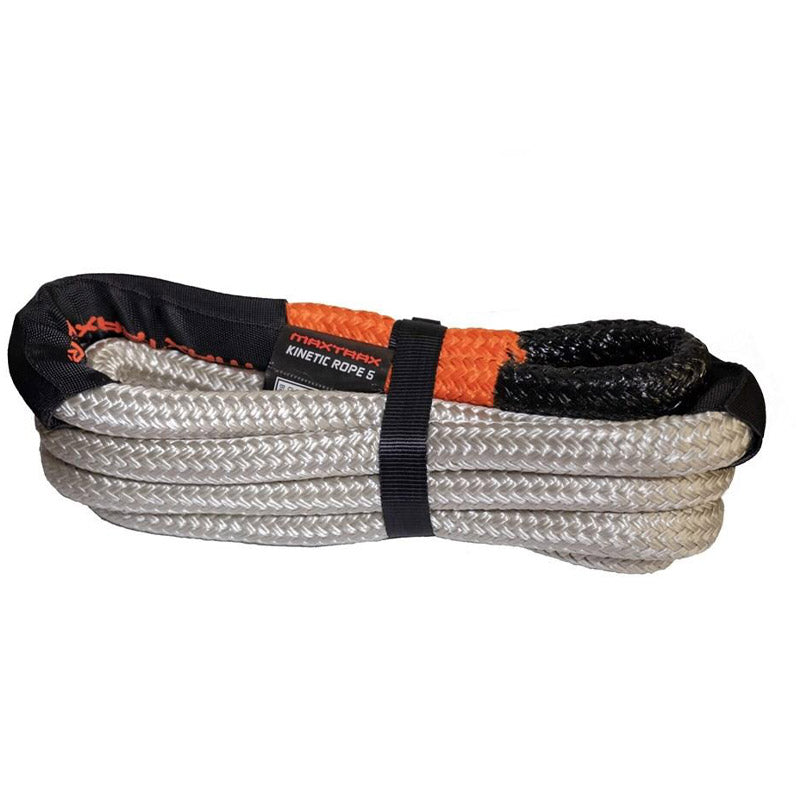

MAXTRAX Kinetic Recovery Rope stretches under load to store and release recovery energy more progressively than a flat snatch strap, helping deliver a smoother vehicle recovery.
Up to 30% ElongationDesigned to absorb and release kinetic energy.
26,455 lb MBSAcross the current rope range.
4 Lengths2 m, 3 m, 5 m and 10 m.
System ComponentDesigned around MAXTRAX soft-recovery hardware.
Choose Your Length
| Length | Best Fit | Weight |
|---|---|---|
| 2 m | Compact / specialized setups | 1.4 kg |
| 3 m | Short working distance | 1.8 kg |
| 5 m | Versatile trail recovery | 2.5 kg |
| 10 m | General truck / overland recovery | 4.3 kg |
Build the System
Fuse ShackleEngineered weak link.
Core ShackleHigh-strength connection.
Hitch 502-inch receiver recovery point.
Rope DampenerLine-control safety component.
Fuse Shackle → Core Shackle → Hitch 50 → All MAXTRAX →
MAXTRAX Canada
Cap-it stocks the MAXTRAX Recovery System in Canada, not just the boards, so the rope, shackles, recovery point and dampener can be selected as one connected setup.
Manufacturer Use, Care & Safety Guidance
The MAXTRAX KINETIC ROPES are designed, as their name suggests, to be the kinetic element during a vehicle recovery. The MAXTRAX KINETIC ROPES produce increased kinetic power compared to flat snatch straps, with up to 30% ELONGATION providing a smoother, safer recovery.
The MAXTRAX KINETIC ROPES have been designed and tested as part of the MAXTRAX RECOVERY SYSTEM. The MAXTRAX RECOVERY SYSTEM is comprised solely of MAXTRAX products and has not been tested with any third party branded products. Critically, if the MAXTRAX RECOVERY SYSTEM is overloaded the MAXTRAX FUSE SHACKLE is designed to be the weakest link, and the expected point of failure. Accordingly, YOU MUST USE a MAXTRAX FUSE SHACKLE in the MAXTRAX RECOVERY SYSTEM during any vehicle recovery. Only use rated recovery points when connecting the MAXTRAX FUSE SHACKLE or MAXTRAX CORE SHACKLE to a vehicle. Before using the MAXTRAX KINETIC ROPES for a vehicle recovery, ensure that any person involved reads and understands ALL THE INFORMATION ON THIS packaging, and on any warning labels attached to the MAXTRAX KINETIC ROPES.
- Visually inspect the MAXTRAX KINETIC ROPES to ensure it is undamaged and in a safe and usable condition.
- Attach the MAXTRAX KINETIC ROPES to the MAXTRAX HITCH, other MAXTRAX KINETIC ROPES, MAXTRAX STATIC ROPE or the vehicle’s rated recovery points using a MAXTRAX CORE SHACKLE or MAXTRAX FUSE SHACKLE.
- MAXTRAX KINETIC ROPES can be used individually or connected using MAXTRAX CORE SHACKLES to make a rope the required length for your particular vehicle recovery scenario
- Place the MAXTRAX RECOVERY DAMPENER over the MAXTRAX KINETIC ROPE or MAXTRAX WINCH ROPE and attach to loop or Shackle.
- Using MAXTRAX 4WD RECOVERY TRACKS to provide a ramp will greatly reduce the forces and loads on all equipment during the recovery.
- Clear the area of bystanders and spectators.
- Commence the recovery by GENTLY taking up the slack in the system.
- If the recovery is initially unsuccessful, try again with SLIGHTLY more momentum.
Materials:
Nylon 66 and Polyester
MAXTRAX Kinetic Rope 2m
Weight: 1.4 kg
Length: 24mm x 2m
MBS: 12000 kg/26455 lb
MAXTRAX Kinetic Rope 3m
Weight: 1.8 kg
Length: 24mm x 3m
MBS: 12000 kg/26455 lb
MAXTRAX Kinetic Rope 5m
Weight: 2.5 kg
Length: 24mm x 5m
MBS: 12000 kg/26455 lb
MAXTRAX Kinetic Rope 10m
Weight: 4.3 kg
Length: 24mm x 10m
MBS: 12000 kg/26455 lb
CARE & MAINTENANCE
The various components of the MAXTRAX RECOVERY SYSTEM are of high quality, but due to the very nature of their potential use, or misuse, they are susceptible to severe wear and tear, and to damage such as nicks, cuts, tears, fraying, burns and abrasion. Always carefully inspect MAXTRAX RECOVERY SYSTEM components before each use for wear and tear, cuts, nicks, abraded, burned, melted and frayed areas. DO NOT USE the product if it is damaged, cut, frayed, burned, melted, abraded or partially unwound OR does not have a clearly legible warning label fitted. To help prolong the life of your MAXTRAX RECOVERY SYSTEM components, they should be washed off, rinsed with clean fresh water and air dried at the earliest opportunity after use. To protect from external environmental weather factors, components should be stored inside the MAXTRAX RECOVERY KIT BAG. Replacement protective sheaths are available from our website.
SAFETY RECOMMENDATIONS
It is recommended that the minimum breaking strength of the strap should be between 2 and 3 times the gross vehicle mass (GVM) of any vehicle it is used with. It is advised that the strap must be suited to the gross vehicle mass (GVM) of the lighter of the 2 vehicles used in the recovery process.
SAFETY INSTRUCTIONS
Use only MAXTRAX Recovery products in the MAXTRAX RECOVERY SYSTEM. YOU MUST ALWAYS USE a MAXTRAX FUSE SHACKLE in the MAXTRAX RECOVERY SYSTEM for each vehicle recovery.
