Old Man Emu BP-51 Suspension Kit – Toyota Land Cruiser (2024+)
The Old Man Emu BP-51 Suspension Kit is ARB’s most advanced suspension upgrade for the 2024+ Toyota Land Cruiser, offering adjustable internal bypass shock technology and a lift that’s tailored to your vehicle’s intended use. Whether you're adding a front bumper, drawer system, rooftop tent—or going all-out with a full overland build—this kit lets you match your suspension to your load and driving conditions.
With adjustable compression and rebound (10 levels each), remote reservoirs for heat dissipation, and position-sensitive damping, BP-51 delivers next-level comfort and control—on and off the road.
Choose Your Suspension Setup:
| Kit Option | Recommended For | Rear Coil Rating | Coil Part # |
|---|---|---|---|
| Medium Load (Most Popular) | Stock or lightly outfitted builds | Standard | 3338 |
| Heavy Load (440 lb) | Constant rear load (e.g. drawers, fridge, gear) | 440 lbs constant | 3339 |
| Heavy Load (880 lb) | Fully outfitted overland builds with roof tents, gear | 880 lbs constant | 3340 |
🔧 All kits include the same front coilovers and shocks. The only difference is the rear coil spring selection based on weight. Choose the right setup to prevent sag and optimize ride quality.

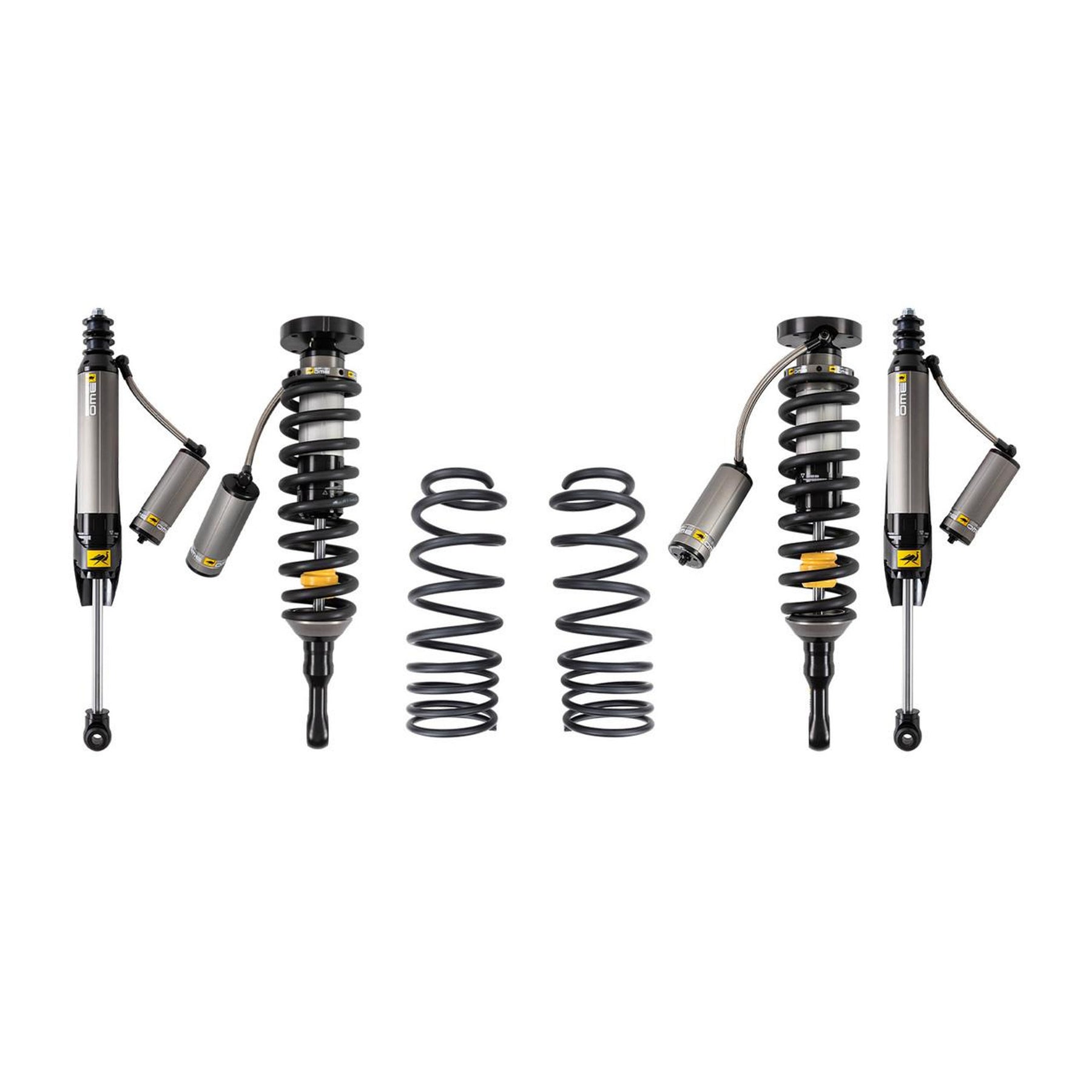

What’s Included in Every Kit:
-
BP-51 Front Coilover Struts (LH & RH)
- Part #: BP5190029L (Driver)
- Part #: BP5190029R (Passenger)
-
BP-51 Rear Shocks (x2)
- Part #: BP5160070
-
Front Fitment Kit
- Part #: VM80010091
-
Rear Fitment Kit
- Part #: VM80010092
-
Rear Coil Springs (based on selected variant)
- Part #: 3338, 3339, or 3340
-
Brake Line Spacer Kit
- Part #: FK134

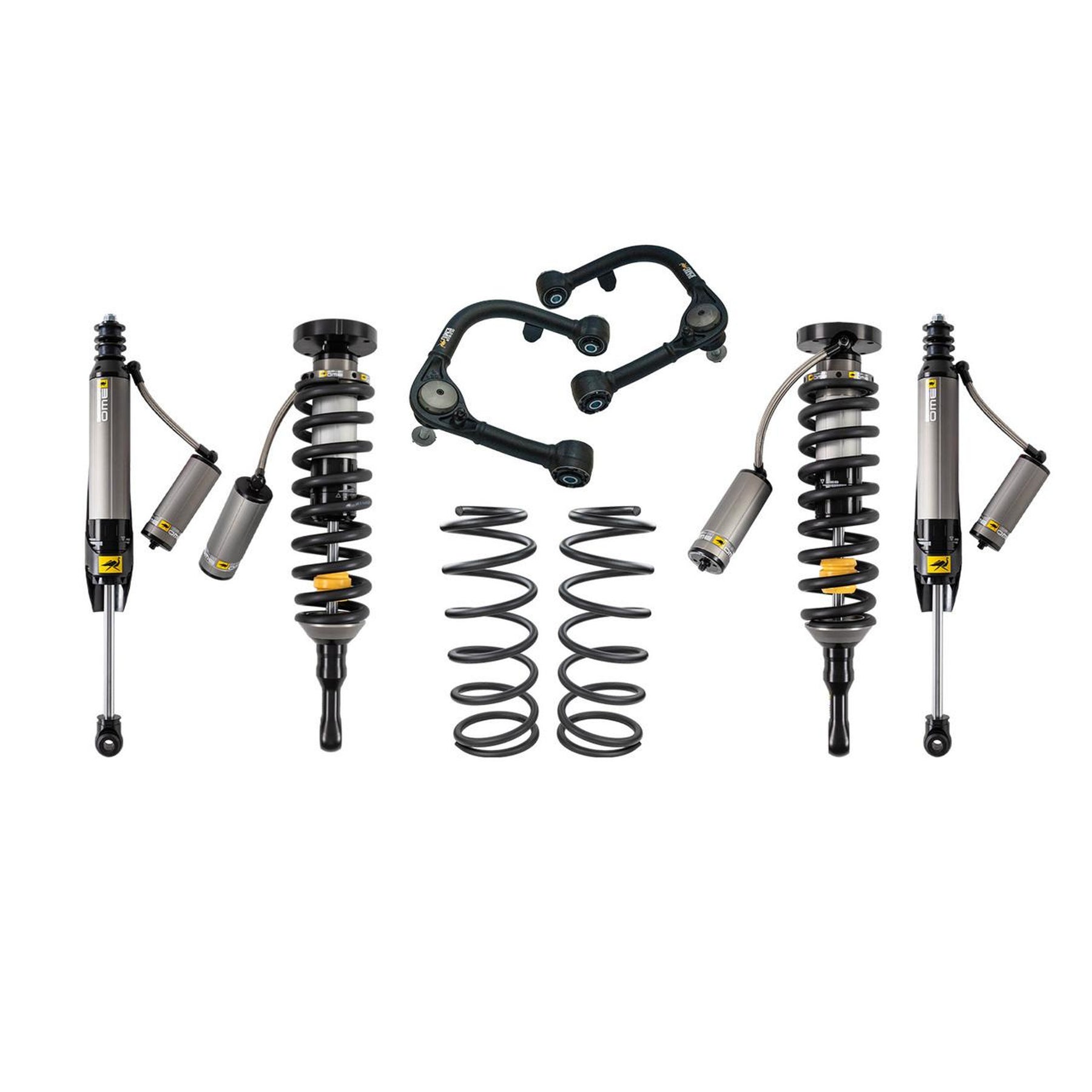

✅ Optional Add-On: ARB Upper Control Arms – Part #: UCA0021
Strongly recommended for vehicles running a 3" front lift to maintain alignment and suspension geometry.

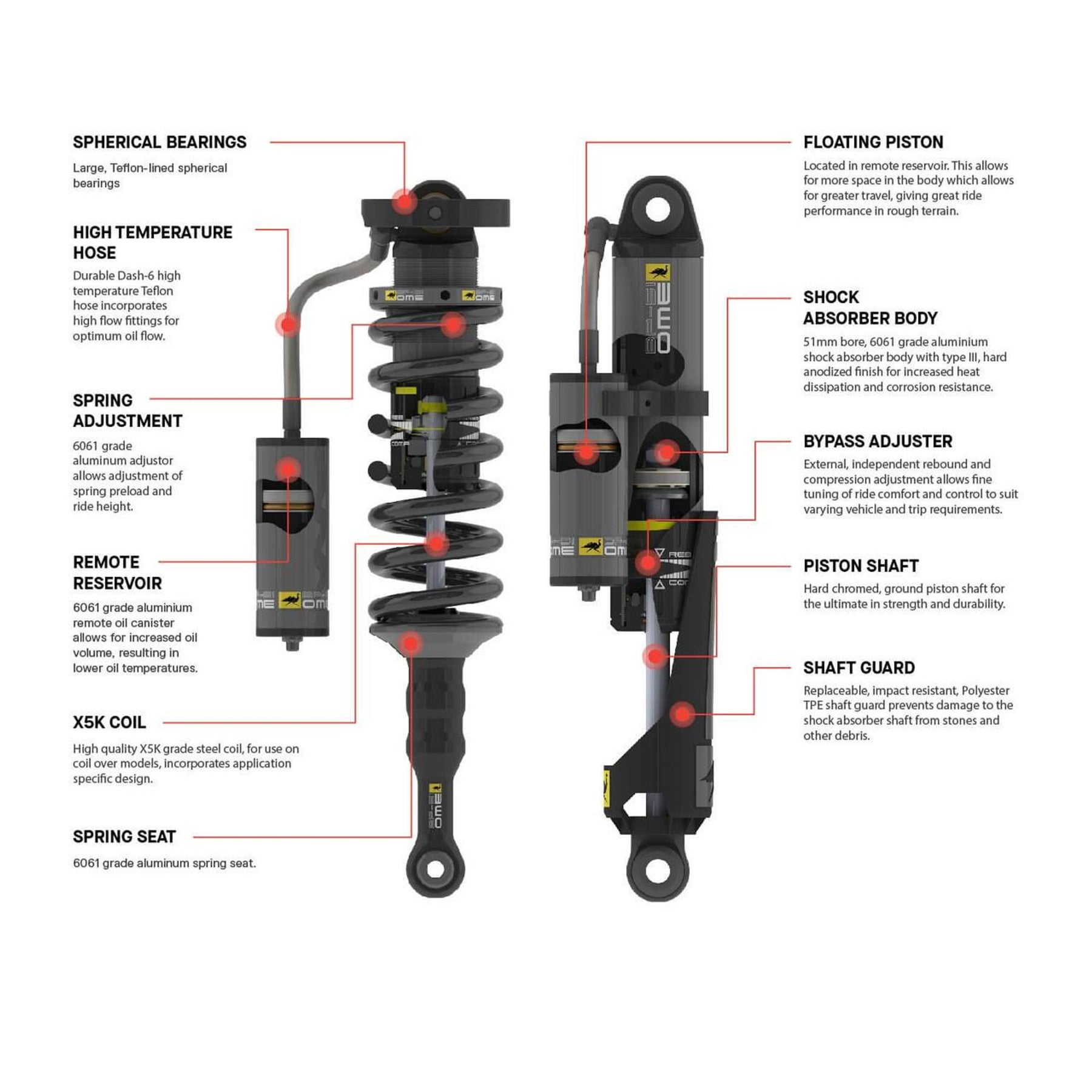

Why BP-51?
-
3" front lift / 2" rear lift
-
Internal bypass shocks with position-sensitive damping
-
On-vehicle adjustability (10-point compression & rebound)
-
Remote reservoirs for cooling during prolonged off-road use
-
Hard anodized 6061 aluminum shock bodies (Type III finish)
-
Tuned for the 2024+ Toyota Land Cruiser (North American spec)
-
Direct replacement for OE and aftermarket setups
-
Fully matched for predictable ride quality & height control
