NEW · ARB AWNING SERIES II
ARB Awning Series II
ARB awnings are back. Hard case. No zippers. Integrated 1,200-lumen lighting.

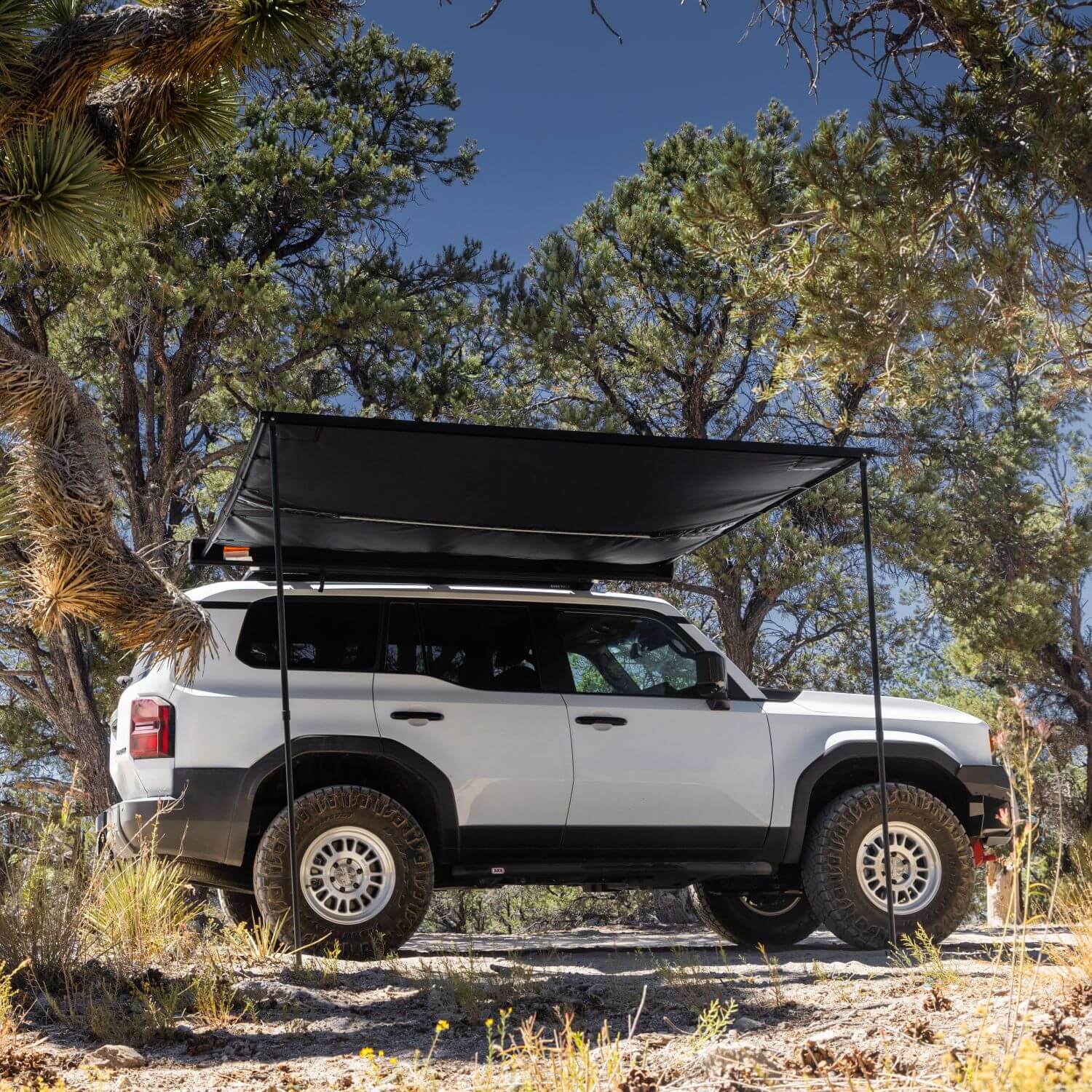

The ARB Awning Series II is the redesigned next generation of ARB's proven vehicle awning, combining a gloss-black powder-coated aluminum housing with upgraded lighting, weather protection and support hardware.
Shock-cord-loaded doors replace the traditional zipper closure, while a pre-mounted LED strip packs away with the awning and provides warm white, cool white and amber lighting at camp.
Available in 2.0m and 2.5m sizes, Series II brings ARB's familiar fast-deploy shade into a cleaner, tougher and more refined hard-case package.
THE NEXT GENERATION OF ARB SHADE
A Familiar ARB Awning, Reworked Where It Matters
ARB has redesigned its previous awning platform rather than simply changing the cover or colour.

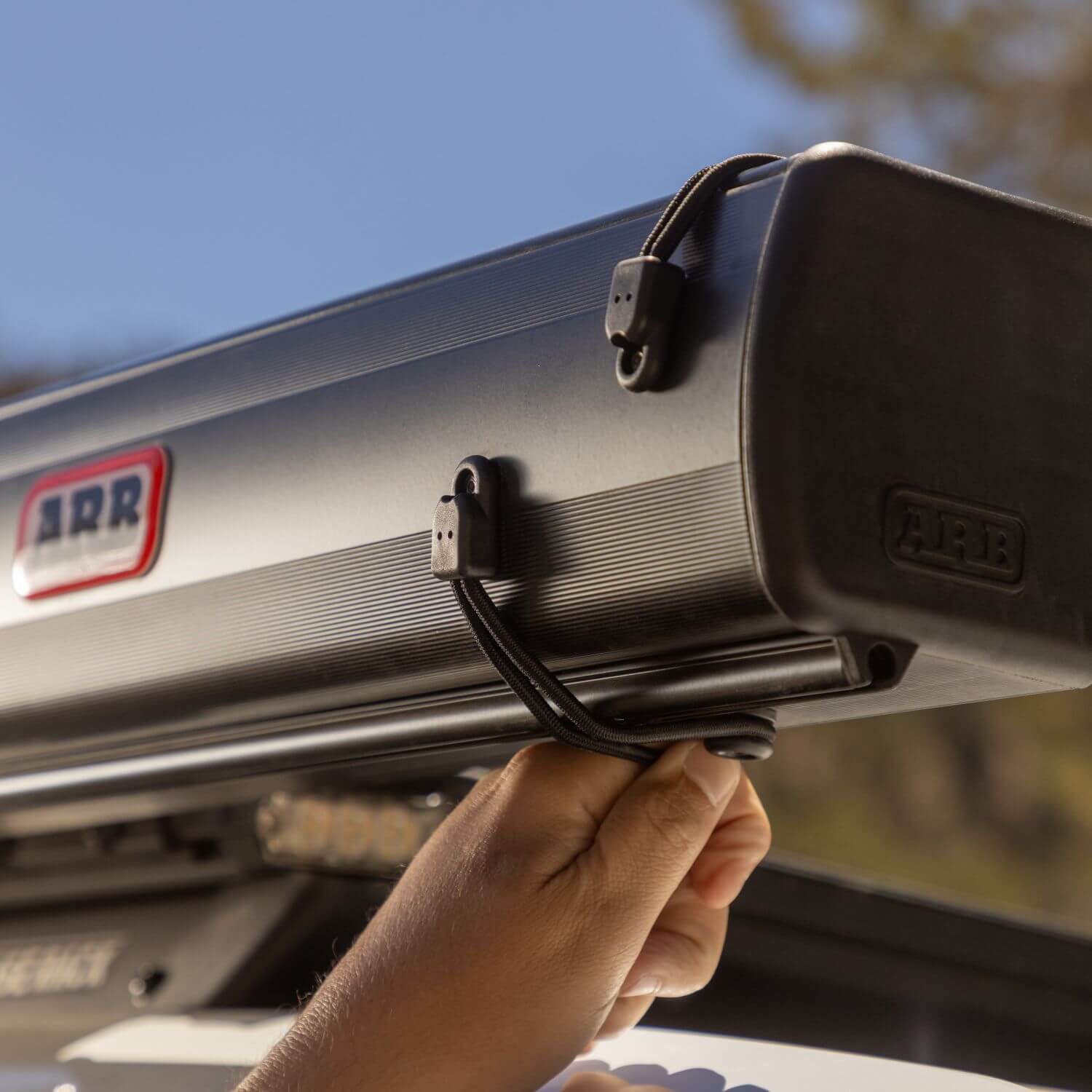

The Series II housing uses shock-cord-loaded opening doors that stay clear of the canvas when deployed. UV-treated marine-grade shock cords keep the housing closed, eliminating zippers that can snag, wear or fail over time.
The awning itself also receives upgraded materials, stronger support hardware and a much more capable integrated lighting system.
Why the ARB Awning Series II Stands Apart

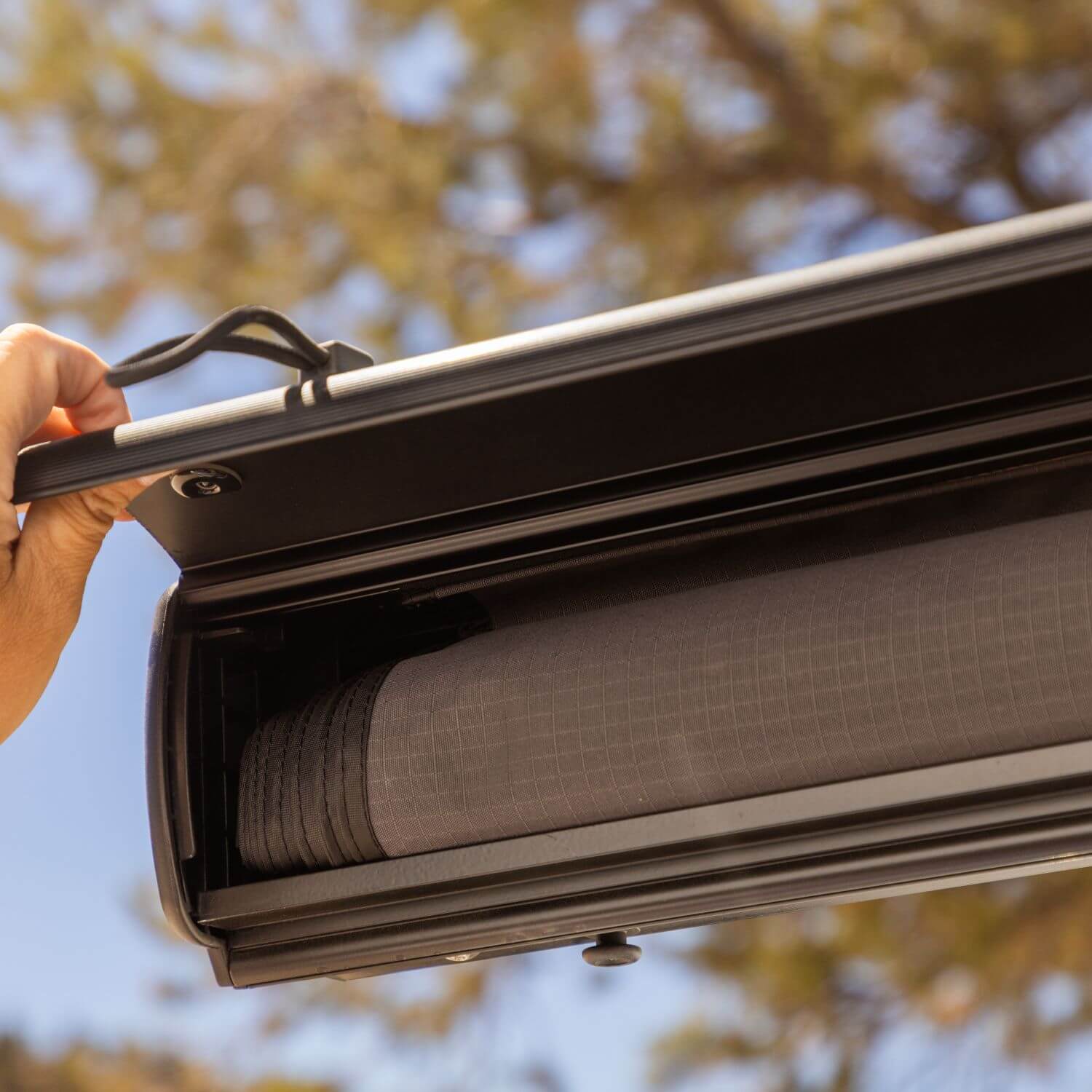

Zipper-Free Hard Case
Gloss-black powder-coated aluminum protects the awning during travel, while shock-cord-loaded doors replace conventional zipper closures.
Integrated 1,200-Lumen LED
The pre-mounted LED strip stays with the awning during pack-down, keeping campsite lighting ready whenever the awning is deployed.
Three Lighting Modes
Choose warm white, cool white or amber lighting using the waterproof digital dimmer switch. Amber provides a softer campsite environment and can help reduce insect attraction.
Built for Weather
300 GSM roof material, a 1,000 mm water-head rating, welded construction and heat-taped seams help keep the shelter ready for changing conditions.
Stronger Support Hardware

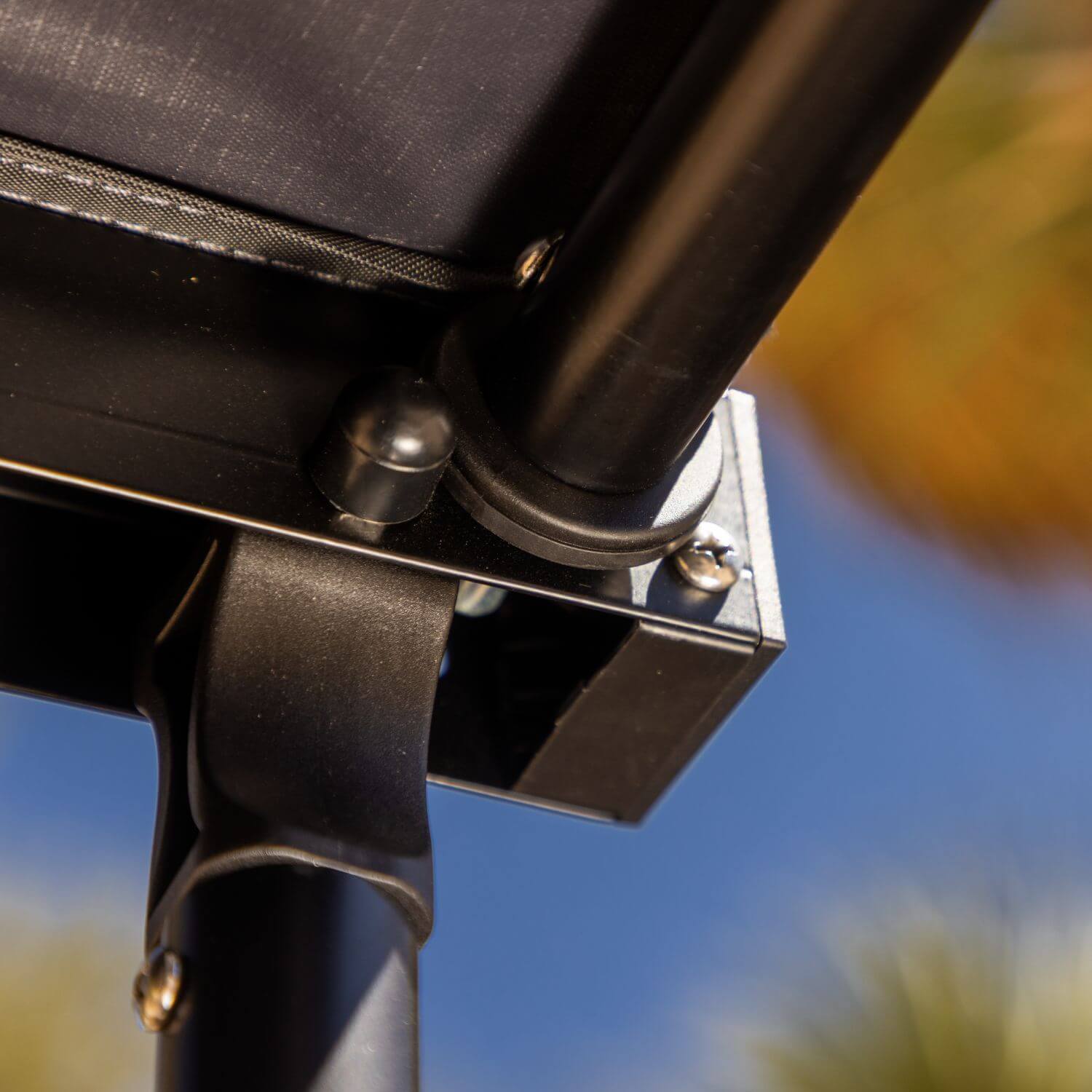

Black aluminum poles and thicker support arms increase strength, while flexible arm joints are designed to reduce stress and cracking.
Two Useful Sizes
Choose the 2.0m Series II for a more compact vehicle setup, or the 2.5m version for maximum side-of-vehicle coverage.
LIGHT THAT PACKS AWAY
Campsite Lighting Is Built Into the Awning

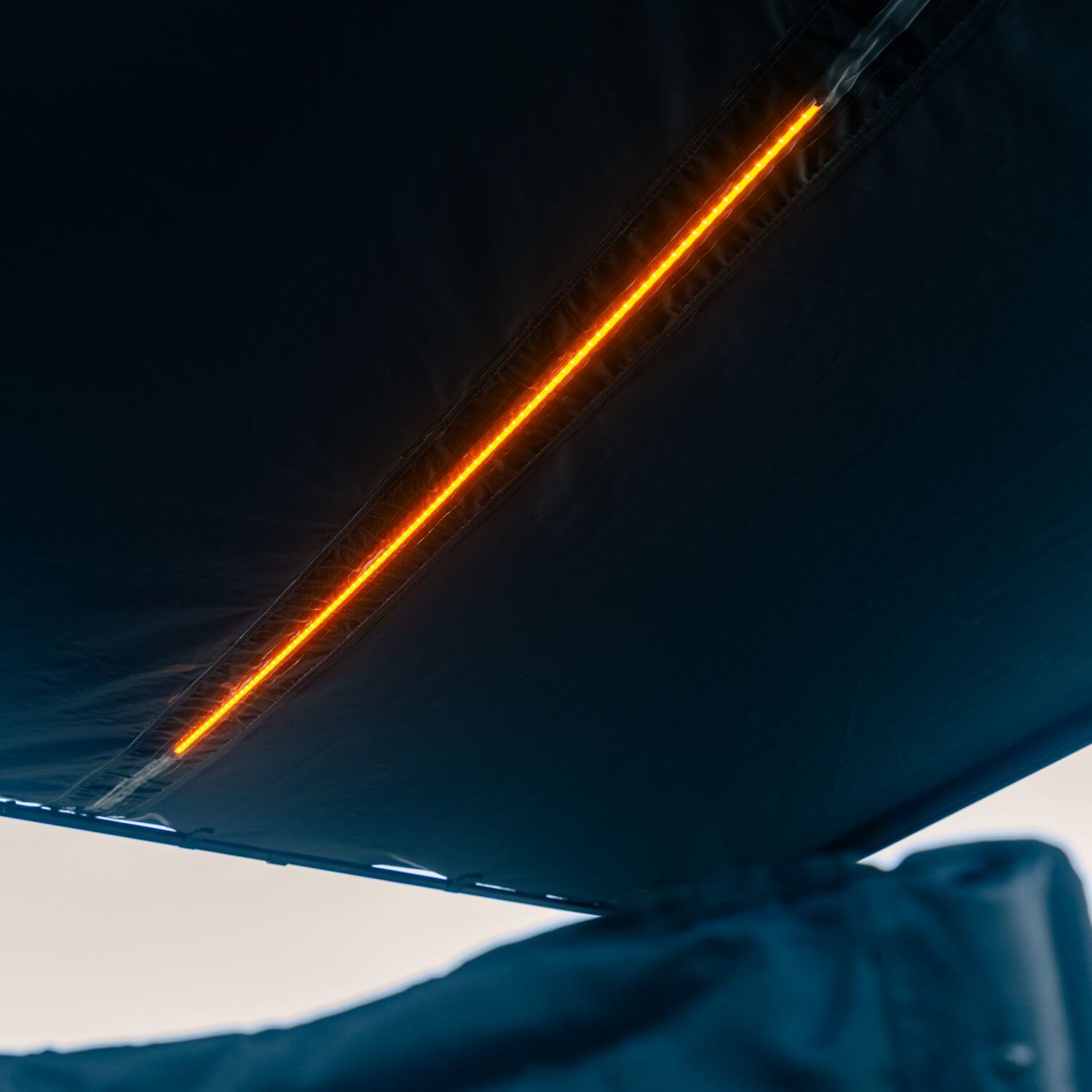

The Series II LED strip is already mounted to the awning, so there is no separate camp-light bar to install, remove or pack.
The waterproof IP58-rated digital dimmer provides warm white, cool white and amber modes, letting you switch between bright task lighting and a softer campsite environment.
ARB rates the integrated strip at 1,200 lumens.
Choose Your ARB Awning Series II
| Part Number | Size | Canadian Retail |
| 814710 | 2.0m / 6.5 ft | $750 CAD |
| 814712 | 2.5m / 8.2 ft | $825 CAD |
Mounting & Installation
The ARB Awning Series II is designed to mount along the side of compatible roof racks, platforms and crossbar systems using suitable awning mounting brackets.
Roof-rack design, bracket spacing, vehicle clearance and mounting height can vary by application. Cap-it can help confirm the correct mounting hardware for your vehicle and rack system.
ARB Awning Series II Specifications
| Available Part Numbers | 814710 / 814712 |
| Available Sizes | 2.0m / 6.5 ft and 2.5m / 8.2 ft |
| Housing | Gloss-black powder-coated aluminum hard case |
| Closure | UV-treated marine-grade shock cords, zipper-free |
| Lighting | Pre-mounted 1,200-lumen LED strip |
| Light Modes | Warm White / Cool White / Amber |
| Dimmer | Water-resistant digital dimmer, IP58 rated |
| Roof Material | 300 GSM |
| Water Rating | 1,000 mm water-head |
| Seams | Welded and heat-taped |
| Poles | Black aluminum |
| Support Arms | Thicker arms with flexible joints |
Frequently Asked Questions
What changed with ARB Awning Series II?
Series II redesigns ARB's previous awning platform with a new hard aluminum housing, zipper-free shock-cord closure, upgraded 1,200-lumen three-colour LED lighting, improved weather construction and stronger support hardware.
Does the light stay attached when the awning is packed?
Yes. The LED strip is pre-mounted and packs away with the awning.
What lighting colours are available?
The integrated light offers warm white, cool white and amber modes through the waterproof digital dimmer.
Why amber lighting?
Amber provides softer campsite lighting and is useful when you want less harsh light around camp. ARB also positions amber mode as helpful for reducing insect attraction compared with bright white lighting.
Which size should I choose?
The 2.0m model is well suited to more compact vehicle and rack setups, while the 2.5m version provides more coverage alongside larger vehicles and camp setups.
Are mounting brackets included?
Mounting requirements depend on the roof rack or crossbar system. Confirm the appropriate ARB or compatible bracket system for your vehicle before installation.
THE CAP-IT TAKE
This Is the ARB Awning We've Been Waiting For
ARB rectangular awnings have always made sense because they're simple, durable and easy to use. Series II keeps that formula but fixes the weak points that matter over years of travel.
The hard case is cleaner and more durable than a traditional soft cover, the zipper-free closure removes a common wear point, and the integrated three-colour lighting is a meaningful upgrade for real camp use.
If you want a traditional side awning without moving into a large 180° or 270° system, the ARB Awning Series II is a very strong fit for daily-driven trucks, SUVs and touring builds.
