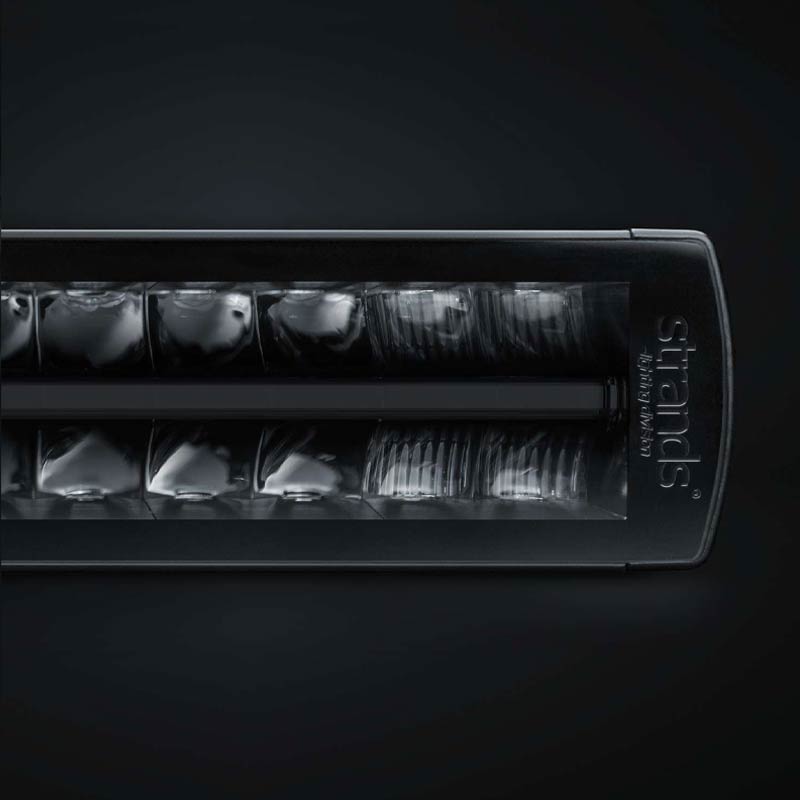

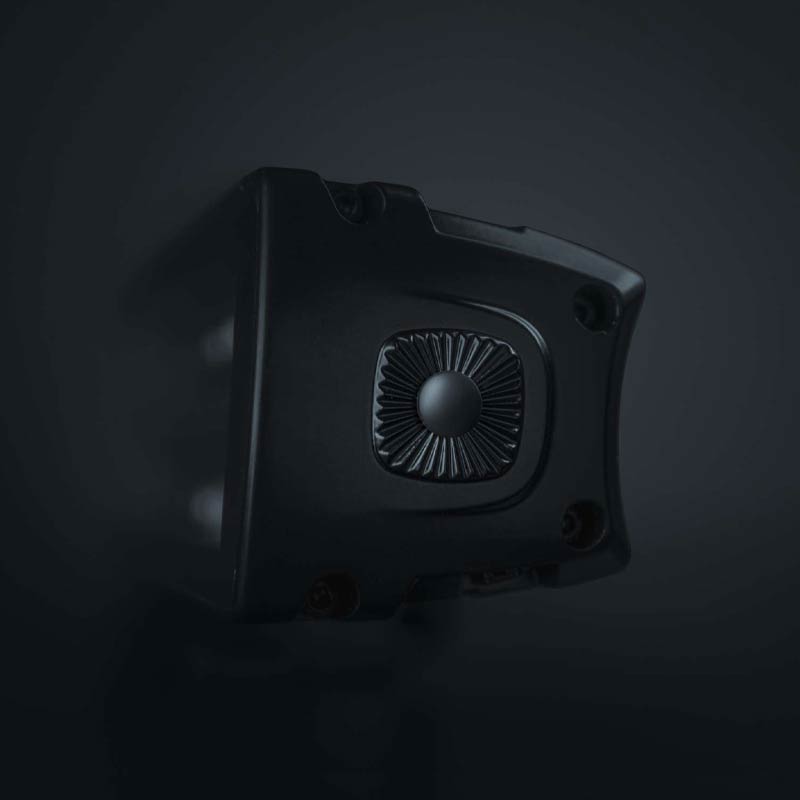

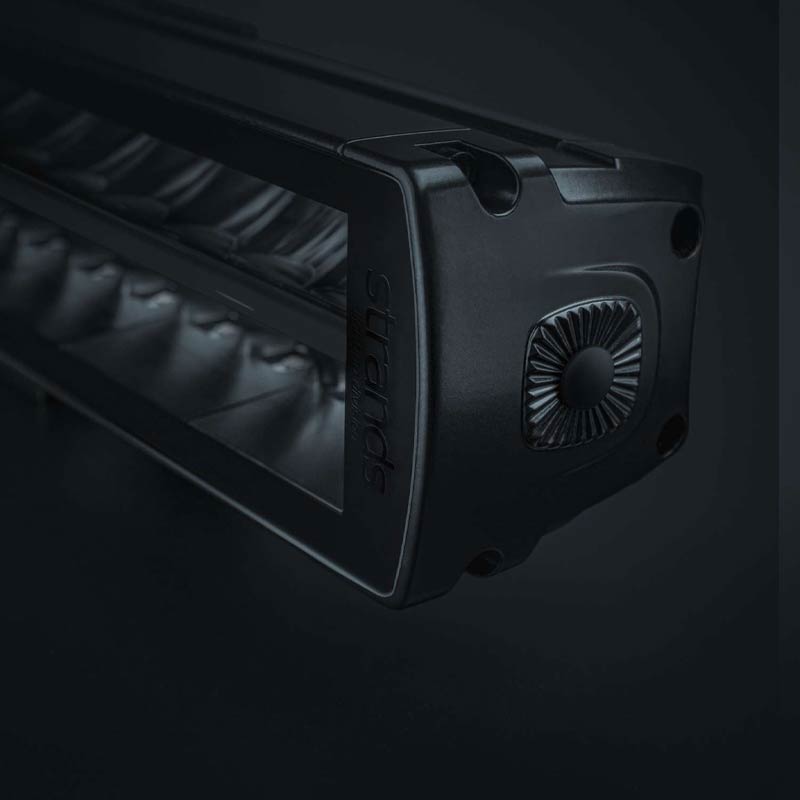

Strands Siberia 32" XPA Double Row Light Bar
Welcome the new Siberia XPA Double Row LED bar. These models have an extended beam pattern with an E-mode and high powered Xperience mode. This means a much higher output than previous LED bars. The greater visual range creates high forward visibility, and the 5700-kelvin color temperature makes the output clear and bright. It is incredibly durable, vibration resistant, and can withstand rough roads and hard use. The new powder coating and IP68/IP69K IP rating ensure high protection against dirt and water. Siberia XPA is covered by Strands Lighting Division's 3-year function warranty. It is E-approved according to R148(R7) and R149(R112), and ECE R10.
The Hello function is incorporated in the 22", 32", 42" and 50" bars. To operate the Hello function: simply flash the light twice in quick succession, and the position lights will activate a dynamic signal.
This light is sold individually and does not include a harness.
Wiring Harness Sold Separately
Specifications:
| VOLTAGE | 10-32V DC |
| CONSUMPTION, XPERIENCE-MODE | 245W |
| CONSUMPTION, E-MODE | 17W |
| CONSUMPTION, POSITION LIGHTS | White:18W, Amber:17.9W |
| ACTUAL LUMEN, XPERIENCE-MODE | 19150 lm |
| ACTUAL LUMEN, E-MODE | 1200 lm |

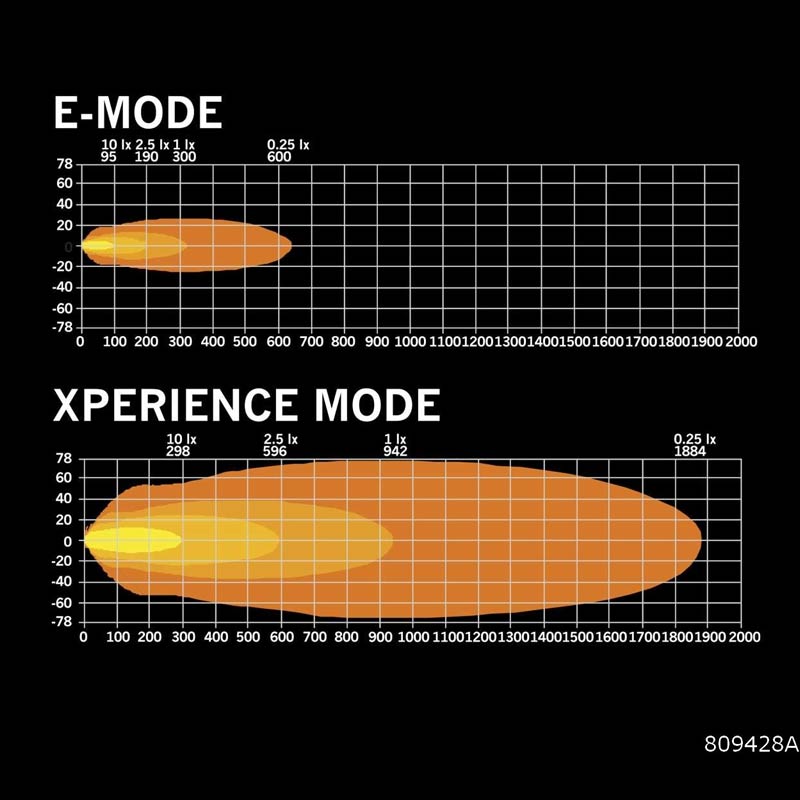

| 1 LUX @, XPERIENCE-MODE | 942 m |
| 1 LUX @, E-MODE | 300 m |
| COLOR TEMPERATURE | 5700K |
| BEAM PATTERN | Long Distance |
| IP-CLASS | IP68/IP69K |
| COLOR LENS | Clear |
| HELLO FUNCTION | Yes |

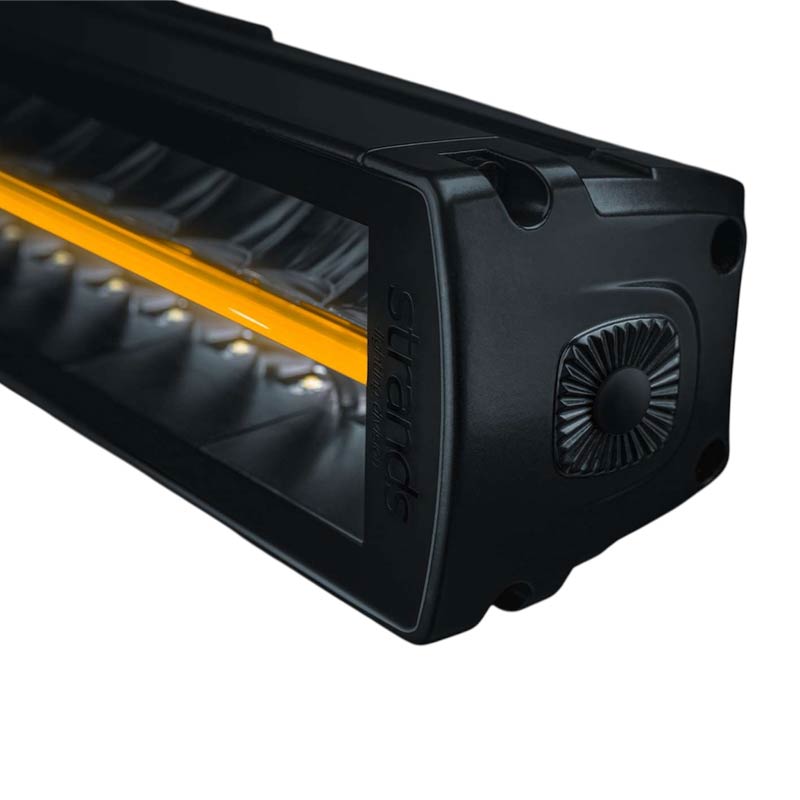

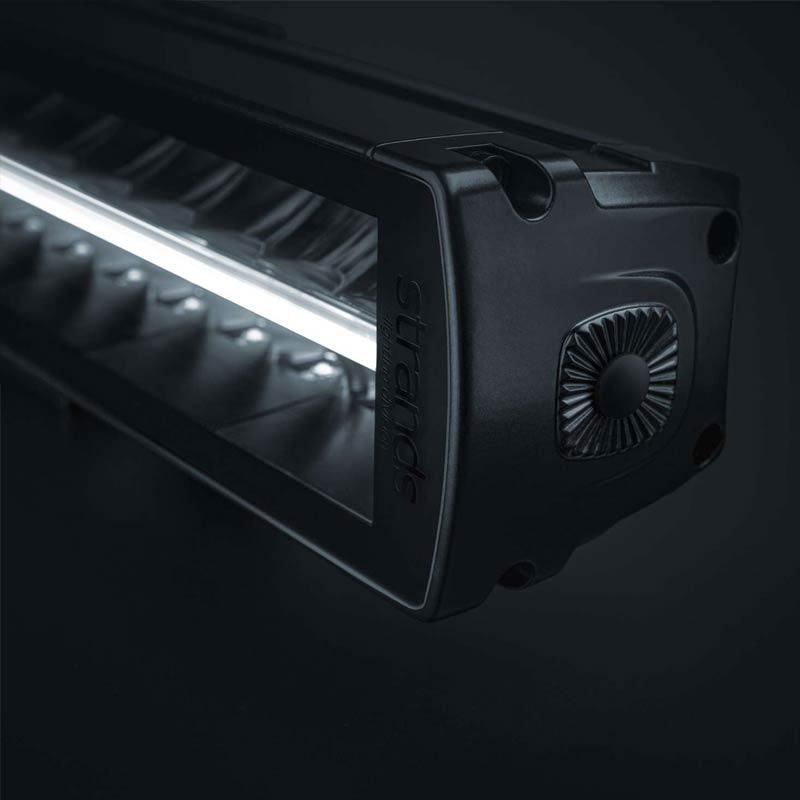

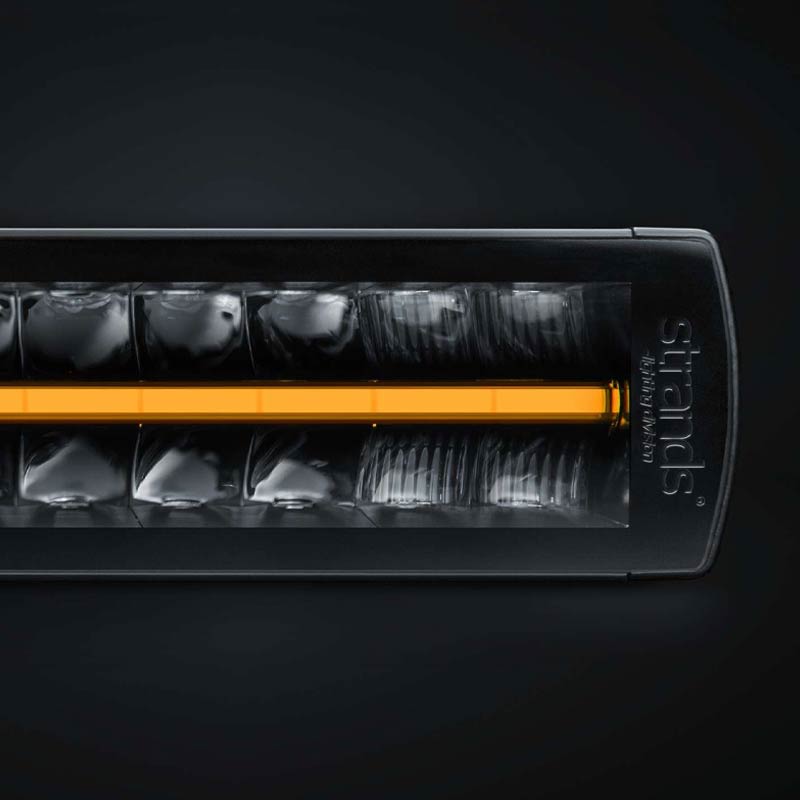

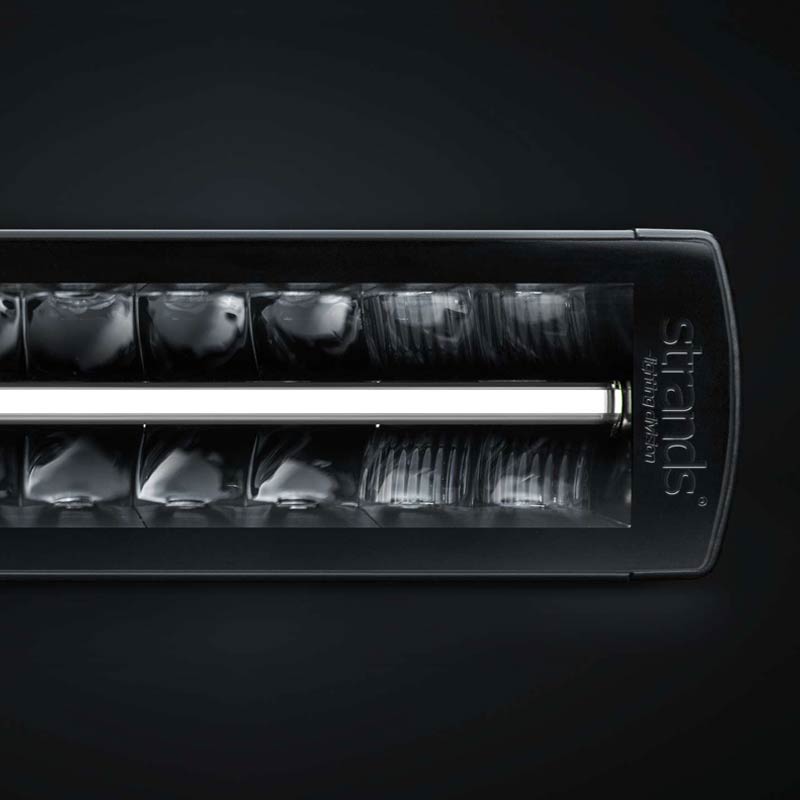

| POSITION LIGHT | White & Amber |
| CONNECTION | Cable |
| CABLE LENGTH | 2500 mm |
| MATERIAL HOUSING | Aluminium |
| MATERIAL LENS | Polycarbonate |

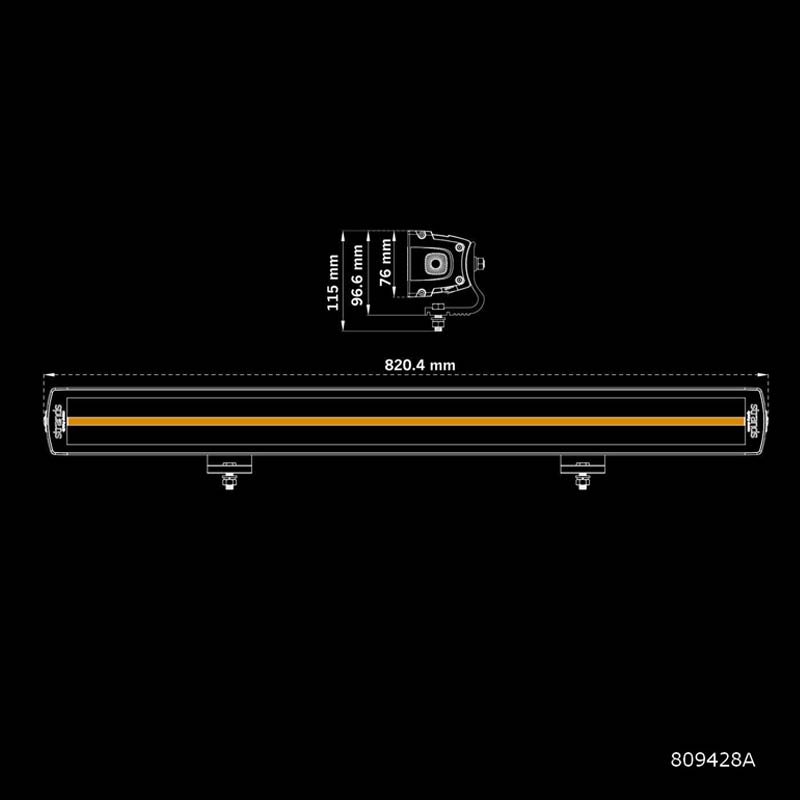

| LENGTH | 820.4 mm |
| DEPTH | 71.6 mm |
| HEIGHT | 76 mm |

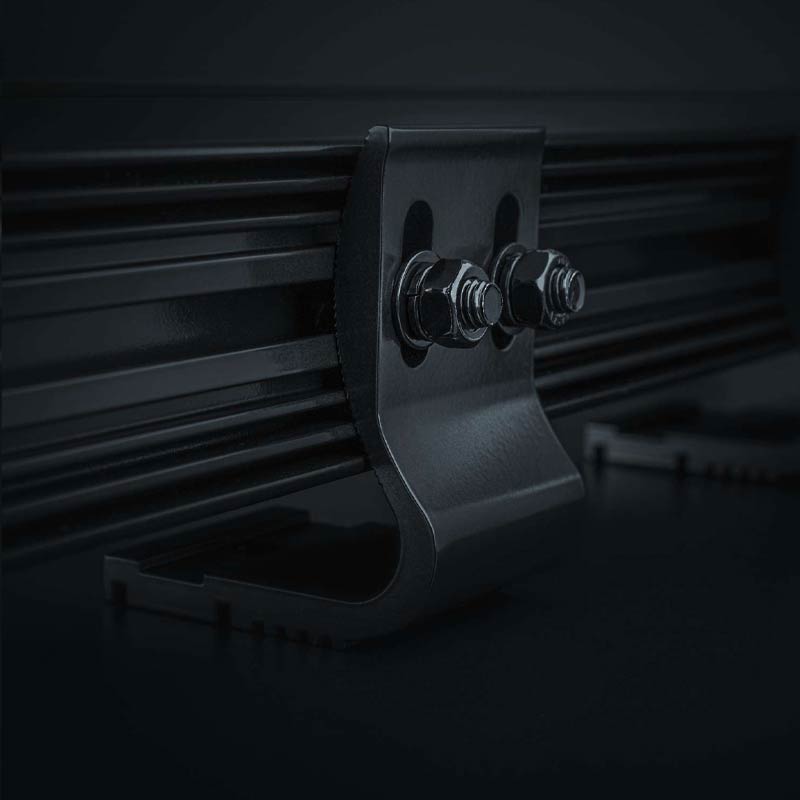

| HEIGHT INCLUDING BRACKET | 96.6 mm |
| OPERATING TEMPERATURE | -30°C - +65°C |
| E-APPROVED | Yes |
| ACCORDING TO ECE REGULATION | R148(R7),R149(R112) |
| EMC-CERTIFICATE | ECE R10 |
