Ram 2012+ Grille Mount Kit

GM-USR1500-01K

Regular price $150.00 CAD
/
Free Shipping on orders over $200.

Ram 2012+ Grille Mount Kit for LR 750 Lights
Triple-R LightsΒ subsidiaryΒ of Lazer Lamps UK

For an OE quality, auxiliary high beam driving light installation, the Triple-R Grille Integration Kits include custom-fit mounting brackets which allow for quick and easy fitting of Lazer High Performance LED driving lights within the front grille of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting road-legal lighting setup remains fully robust and secure, while delivering night-time visibility that leaves little to the imagination.

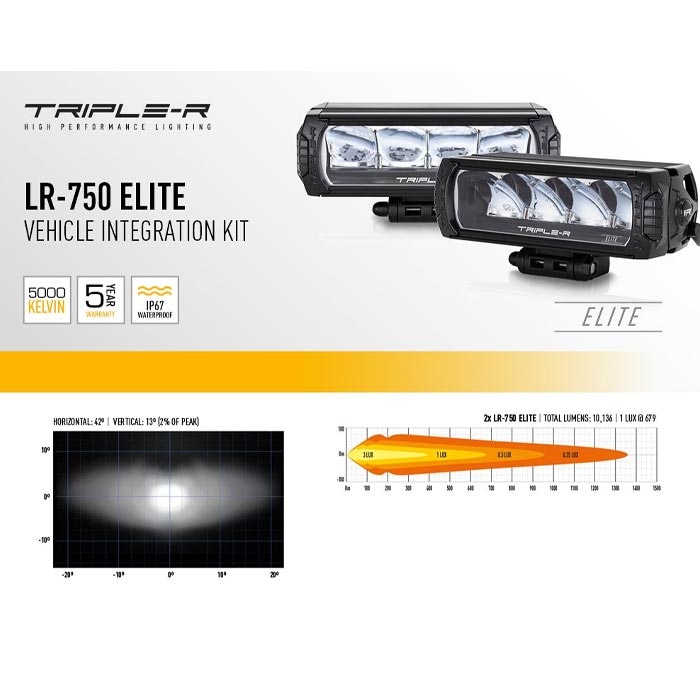

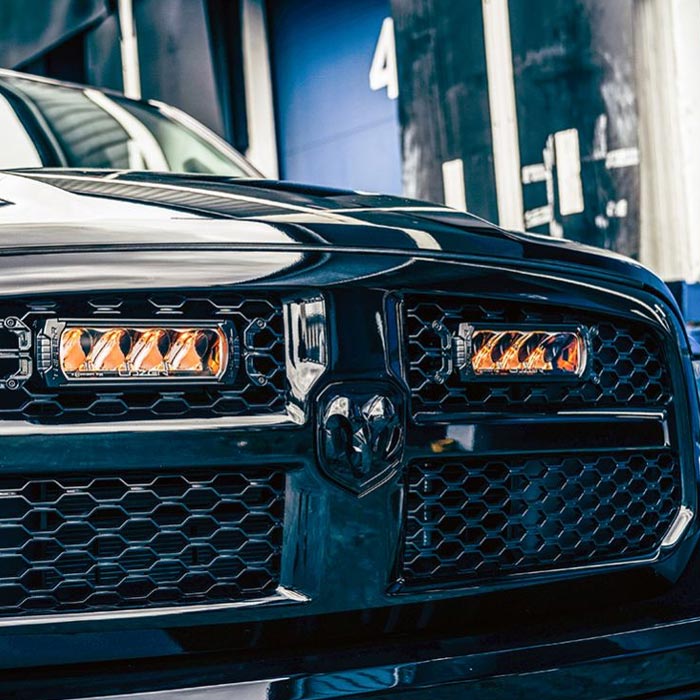

The RAM 1500 kit, for 2012 vehicles onwards is designed to fit a pair of LR-750 (Standard or Elite) High Performance LED driving lights, the brackets are precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year.

Supplied alongside the mounting brackets are a set of cutting guides, designed to facilitate the installation and ensure a perfect fit every time, without removal of the vehicle’s grille or bumper parts.

The RAM 1500 Classic (2012+) Grille Integration Kit is carefully engineered and optimised for use with LR-750 Performance LED driving lights.

  • Bespoke vehicle integration kit for Triple-R LED Driving Light installation

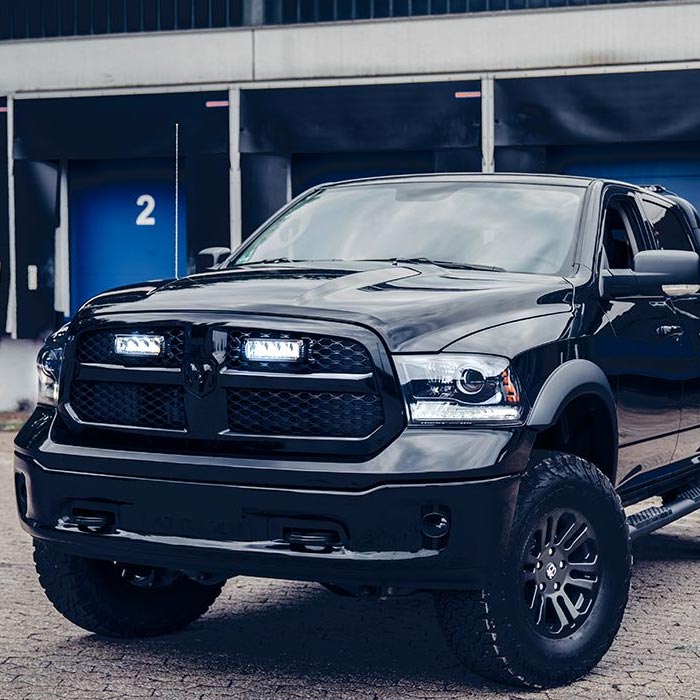

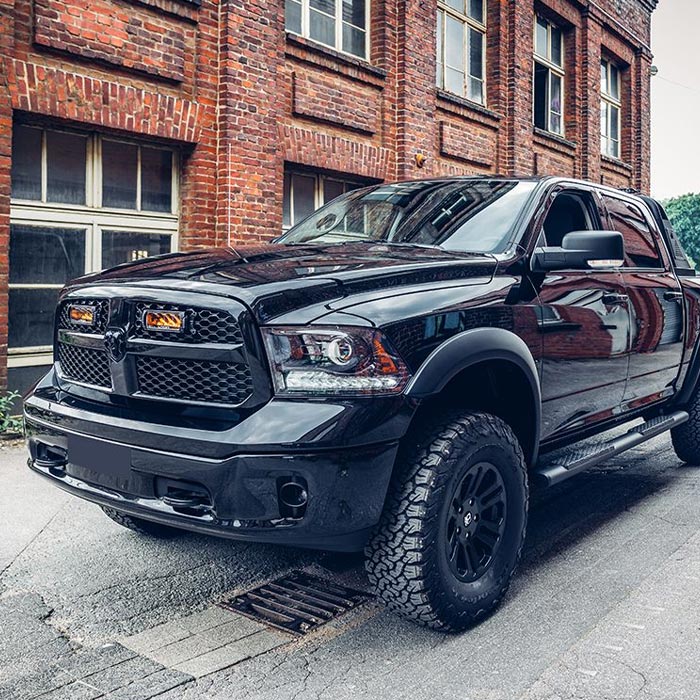

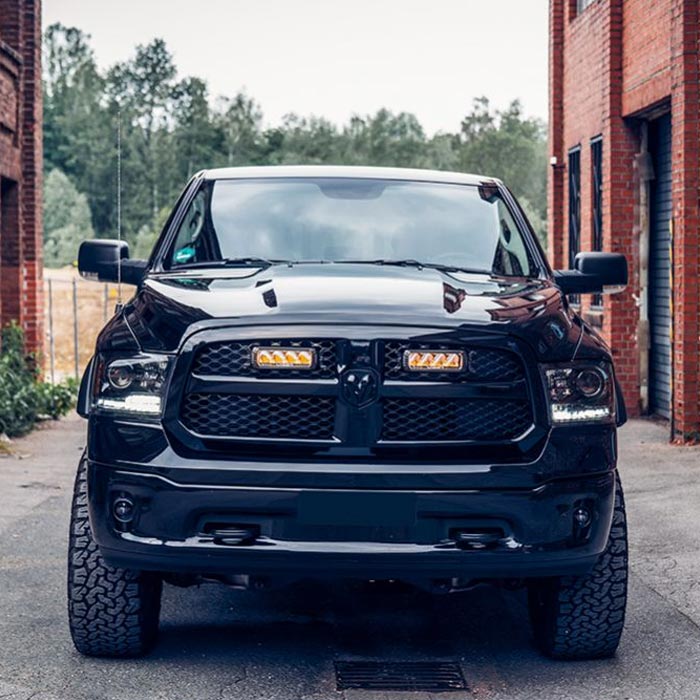

  • Custom fit for RAM 1500 Classic (2012+)
  • For use with LR-750 Performance LED driving lights

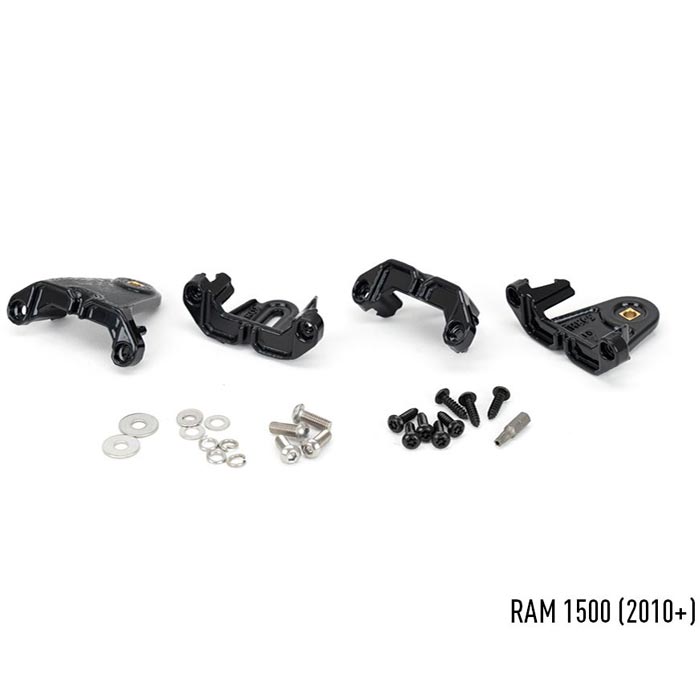

  • Kit includes bespoke mounting brackets and cutting guides
  • Brackets made from high strength, UV -stable, ASA material
  • Fully road-legal
  • 5-year warranty
  • Made in Britain

PLEASE NOTE: LIGHTS AND WIRING HARNESS KIT SOLD SEPARATELY.

Based on: 2x LR-750.Β

Voltage Range 10-32V
LED Life 50,000 hours
Weight 2 kg
HIGH BEAM FUNCTION Β
Total Luminous Flux 9240 Lm
Colour Temperature 5000K
Number of High Output LEDs 2 x 4
Power Consumption 88 Watts
Current Draw (at 14.4V) 6.2 Amps

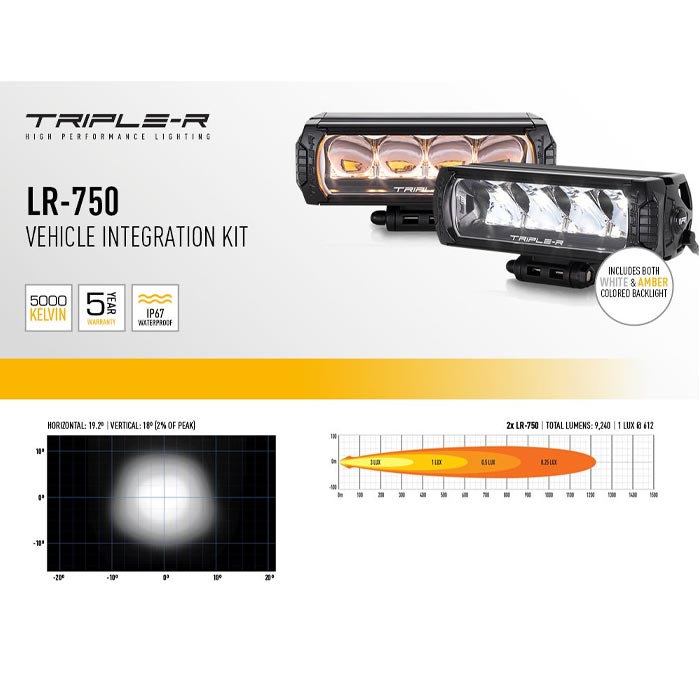

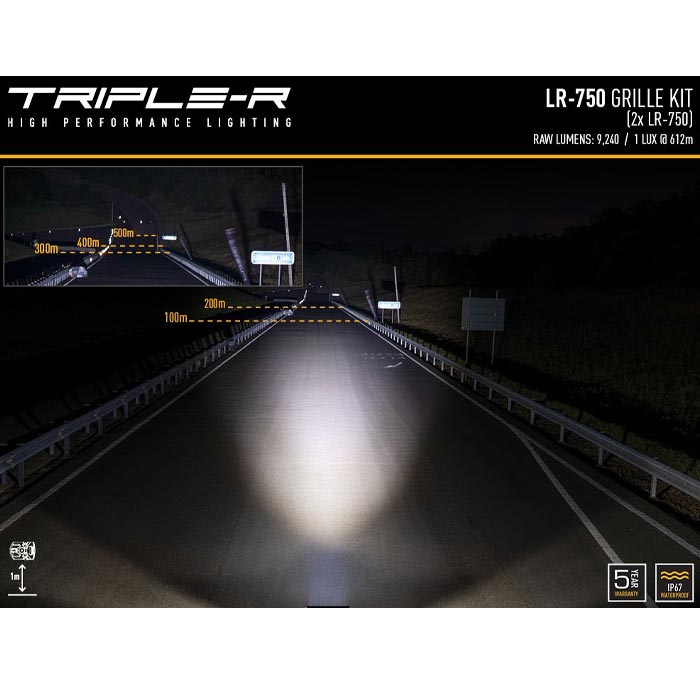

PHOTOMETRIC DATA Β
Horizontal Beam AngleΒ  19 Degrees
0.25 lx Line 1225 metres
0.5 lx Line 866 metres
1 lx Line 612 metres
3 lx Line 354 metres

PLEASE NOTE: LIGHTS AND WIRING HARNESS KIT SOLD SEPARATEL

Sentinel (Standard wi

Optimised for use with all LR Series LED lights or ST4 Evolution lig
