Prinsu Cab Rack | Baja Designs 7 XL Linkable Kit
- Prinsu Cab Rack
Baja Designs 7 XL Linking Kit designed for Prinsu
Prinsu Cab Rack Details:
The rack consists of 2 laser cut side rails constructed of 3/16″ 5052 aluminum plate. These rails have 3 mounting tabs each that will allow you to bolt the rack into the 5 factory mounting holes on each side of the roof. This design allows the addition of this roof rack without drilling or modification to your vehicle. The crossbars are made from a 2″ x 1″ aluminum extrusion that has a top facing T-slot channel. This offers numerous solutions for tie-down options, cargo security, and the addition of accessories such as tool mounts or lighting. All product will come in black. All assembly hardware comes in a black zinc finish so as to match a black paint or powder coat finish on the final product. The rack also includes a 1/8″ 5052 aluminum plate wind deflector to help with aerodynamics and prevent wind noise. Options for integrating a light bar are available. See the Extras/Add Ons page.
The rack is completely modular in that you choose how your rack is configured. Refer to the gallery for an example of standard configurations we have used based on different load sizes and weights. You can also choose the number of crossbars you assemble your rack with. The rack comes standard with 6 cross bars for cargo and 1 additional for mounting of a wind deflector, lightbar or combination of the two.
Weight capacity of the racks varies based on the number of crossbars used and their configuration. We expect all consumers to use good judgment and common sense with the loads they plan to carry using these rack systems.

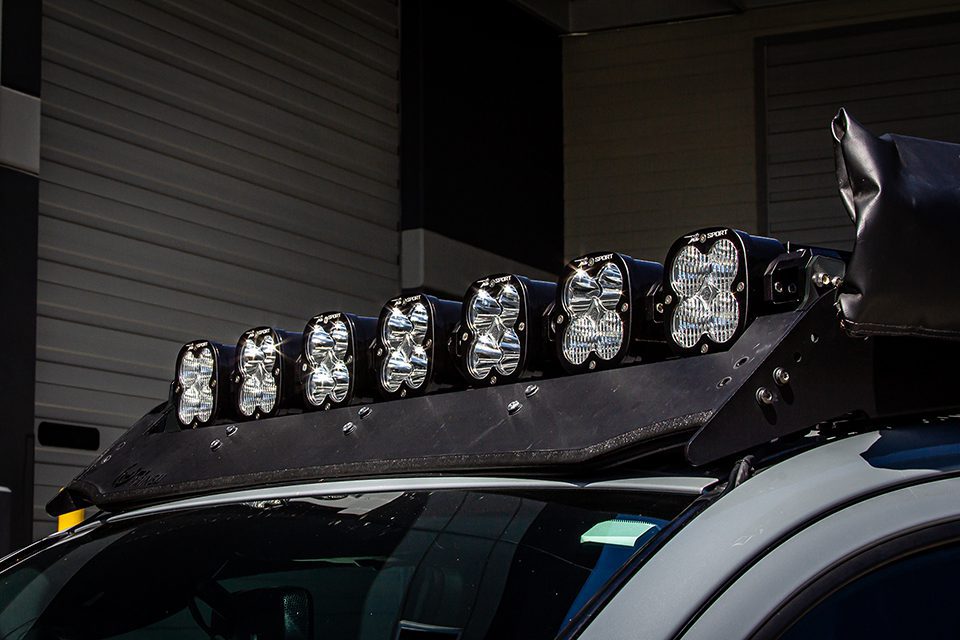

Baja Designs Prinsu Roof Rack 7 XL Linkable Kit
So you've got a Prinsu rack and you want to mount an LED light bar? We've got you covered! The Prinsu racks come with the option for a 40" light bar cutout, for users with this option we've created a turn key kit that includes everything you need to get a performance based lighting solution. This kit utilizes our 7 Light XL Linkable kit that provides you with a crisp 22,050 lumens. In terms of hardware and accessories we include brackets that are proprietary to Prinsu's rack design, all required hardware, a relay harness for the XL Linkable, and Rock Guards. This is an all inclusive kit that will compliment your Prinsu rack along with giving you some serious night time lighting performance.
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Lumens: 22,050 Utilizing 28 LEDs
Wattage/Amps: 182W / 14A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

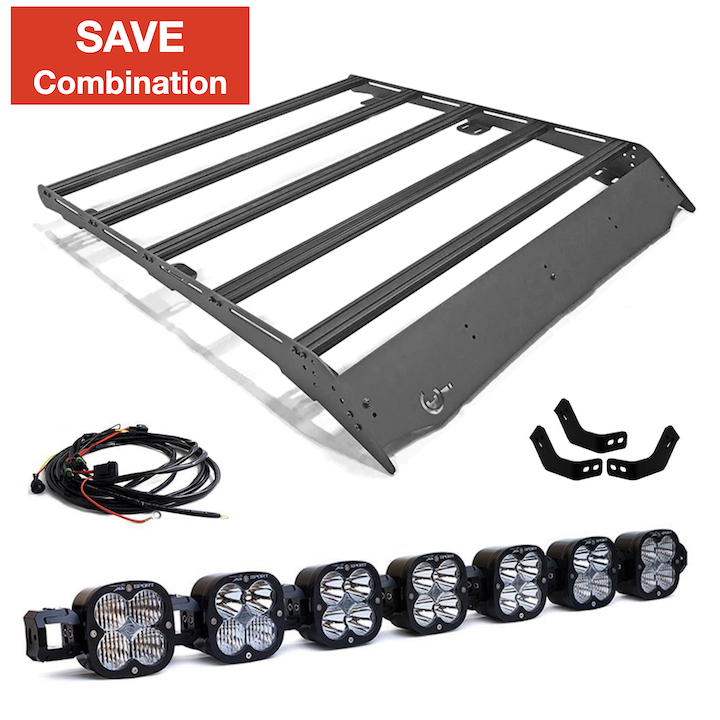

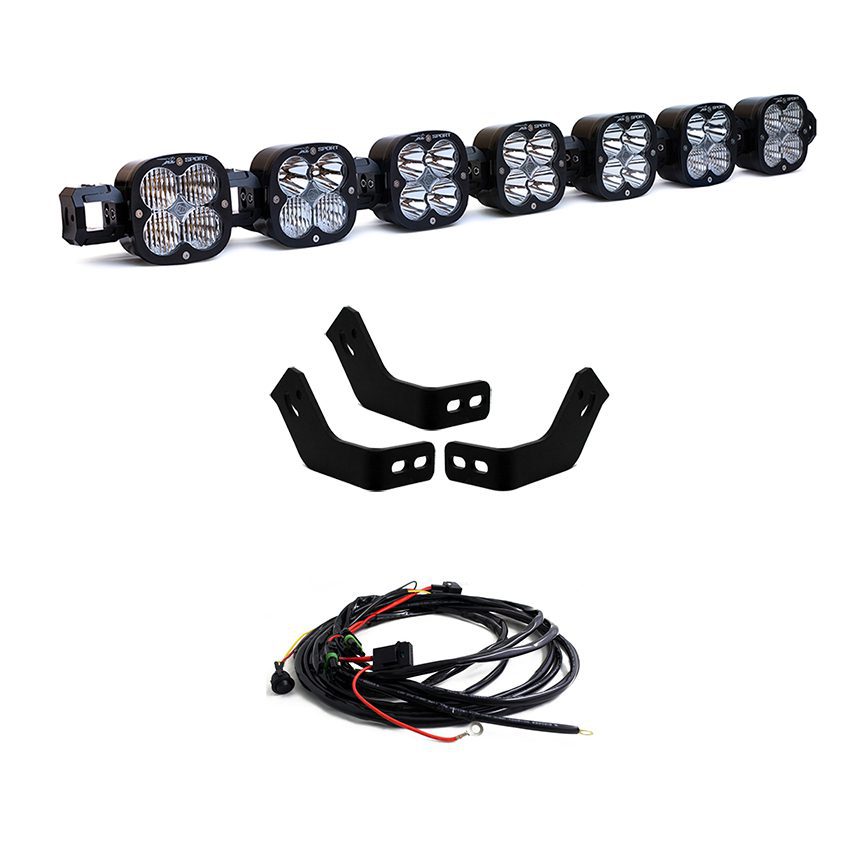

Baja Designs 7 XL Linkable Kit Includes:
- x3 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x7 XL Sport Rock Guards
- Pre-load Center Bracket
- Prinsu Specific Brackets (304 Stainless Steel)
- XL Linkable Harness
