LR-850 Elite

LR6-EL-B

Regular price $615.00 CAD
/
Free Shipping on orders over $200.

LR-850 Elite
Triple-R Lightsย subsidiaryย of Lazer Lamps UK

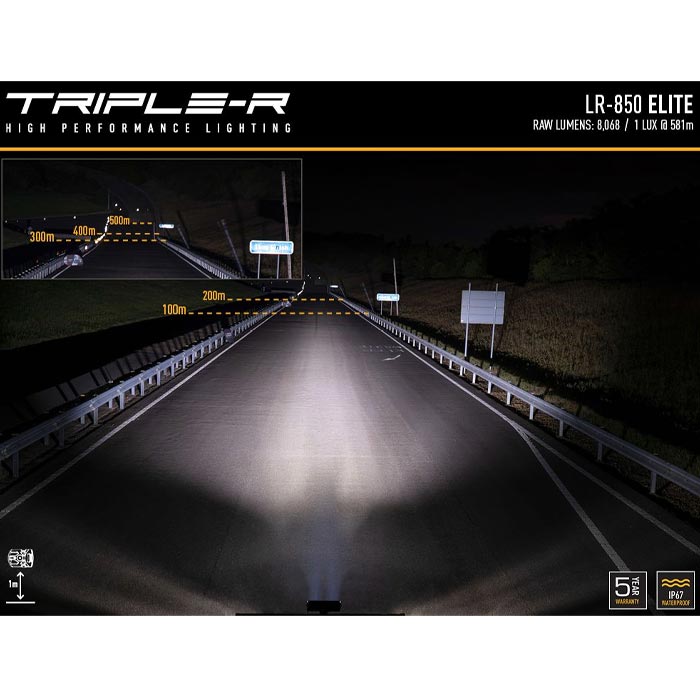

The pinnacle of LED lighting technology upgraded in 2020/1, the LR-850 Elite is simply unrivalled in regards lighting performance, styling, and reliability. Through advanced electronics and material design, high intensity LEDs delivering 1 lux to 581m, and a combination of high efficiency LEDs delivering 42 degrees spread lighting, emit over 8000 raw lumens at a natural 5000k color temperature, for a perfectly tuned beam pattern for all types of off and on-road driving. The clean, contemporary design and refined styling elements of the LR Series make this a product to shine day and night.

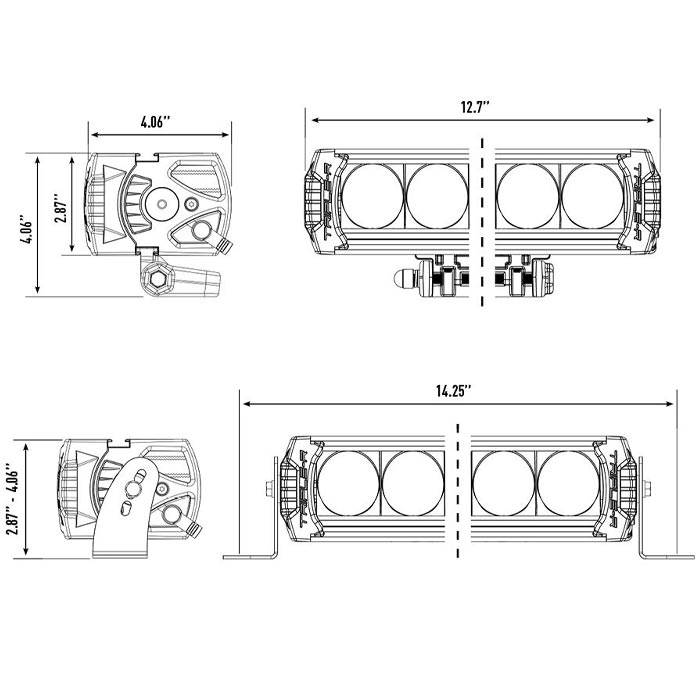

Measuring 13โ€ in length and weighing just 2.4lbs, the LR-850 Elite has long been adopted at the highest level of professional motorsport, yet superior build quality borne out of our in-house design, engineering, and manufacturing ensures no compromise in the LR-850s reliability or longevity. All LR Series lights come with a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many yearsโ€™ time

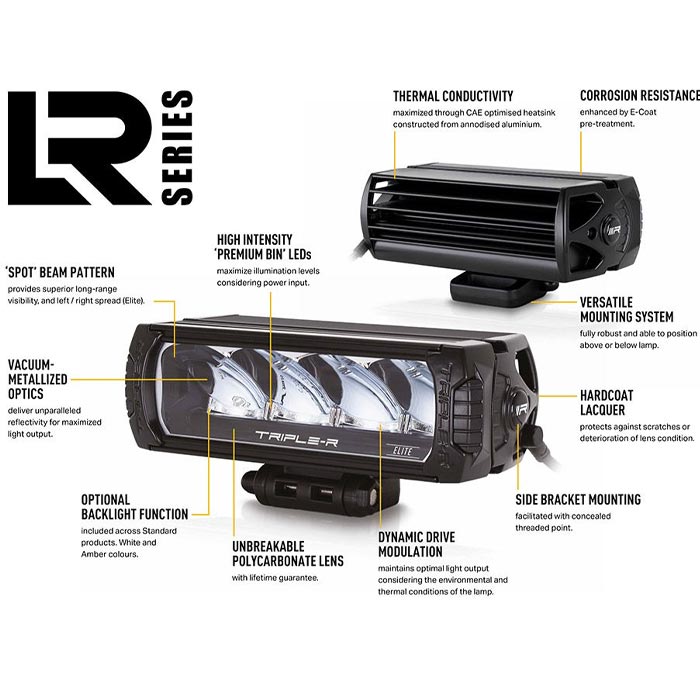

  • Highly efficient LED technologies (upgraded in 2020/21)
  • Ultra-reflective vacuum-metallised optics deliver perfectly tuned beam pattern
  • Contemporary lamp design
  • Includes versatile โ€˜Centre Mountโ€™ mounting system plus integral features to enable side mounting (brackets sold separately)

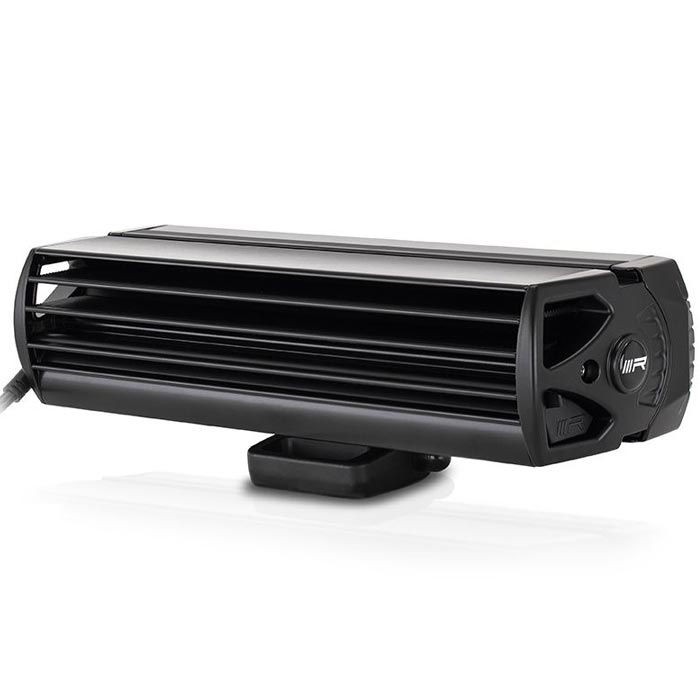

  • CAE optimised heatsink offers improved thermal dynamics
  • Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
  • Electronic thermal management
  • Pressure equalization through GoreTex Breather technology
  • โ€˜Unbreakableโ€™ and hardcoated polycarbonate lens
  • IP67 watertight
  • 5-year warranty
  • Wiring harness kits available
  • Designed & manufactured in the UK

NOT FOR HIGHWAY USE

PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.

Technical Specifications

Based on: 1x LR-850 Elite.

Voltage Range 10-32V
LED Life 50,000 hrs
Weight 2.4 lbs
HIGH BEAM FUNCTION ย
Total Luminous Flux 8068 Lm
Total Driver 'FOV' Flux โ€  5317 Lm
Color Temperature 5000k
Number of High Output LEDs 6
Power Consumption 73 Watts
Current Draw (at 14.4V) 5.1 Amps

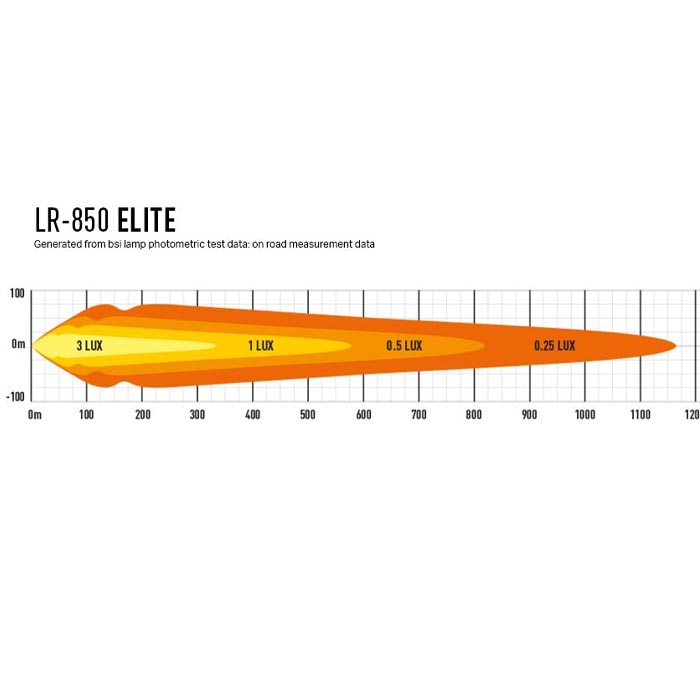

PHOTOMETRIC DATA ย

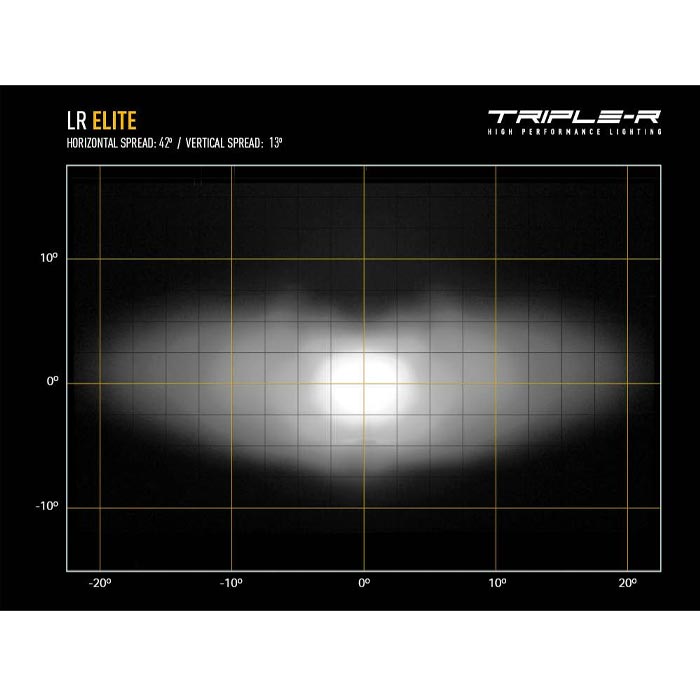

Horiz Beam Angle 42 Deg
0.25 lx Line 1162ย metres
0.5 lx Line 822 metres
1 lx Line 581ย metres
3 lx Line 335 metres

โ€  Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
