LR-850
Triple-R Lightsย subsidiaryย of Lazer Lamps UK

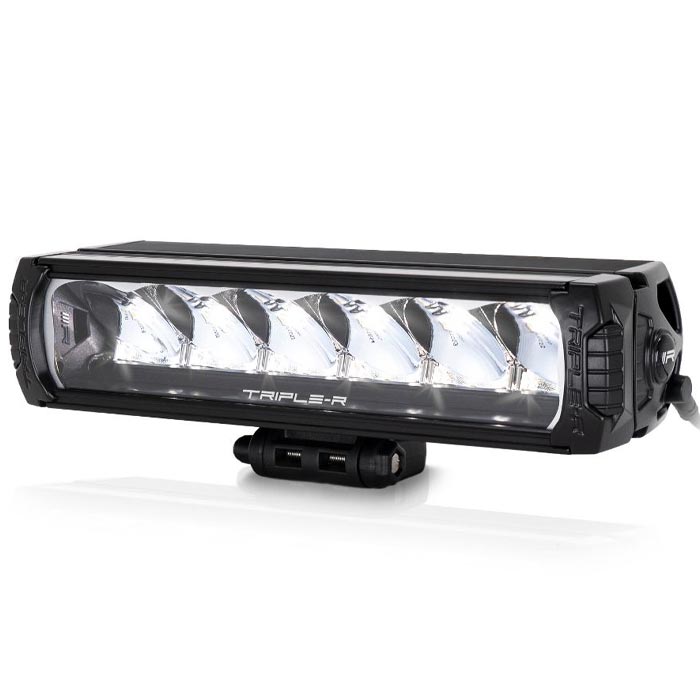

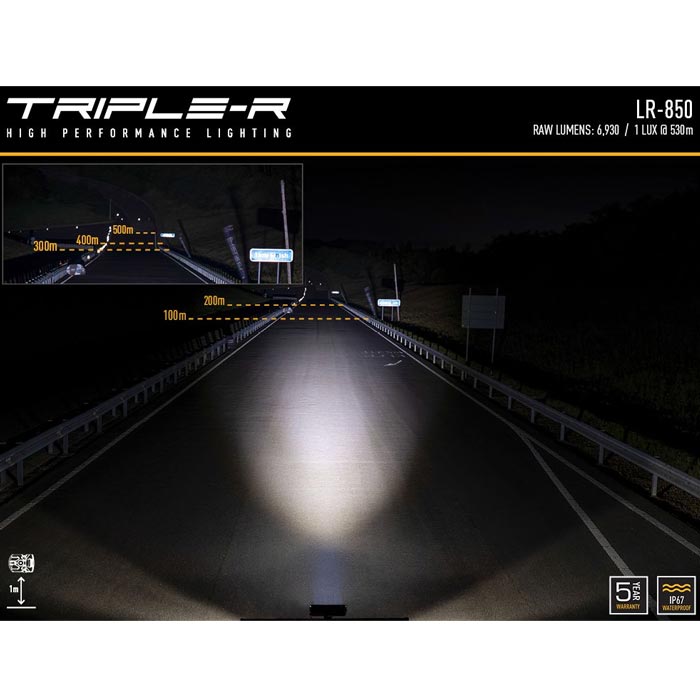

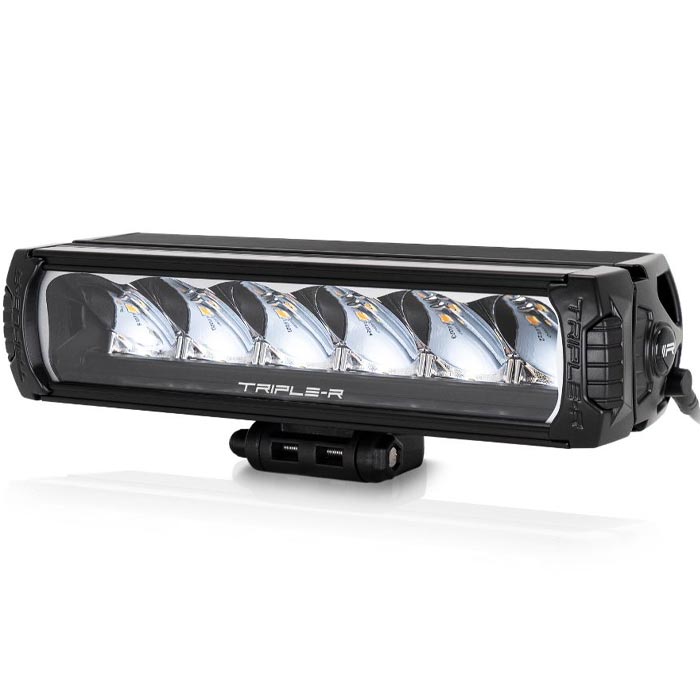

The LR-850 is a versatile high-performance LED light solution delivering a spot beam pattern to an impressive 530m (1 lux). With performance and reliability borne out of development and testing at the highest levels of professional motorsport, the LR-850 is a product to be trusted for all off-road, and on-road applications. With the option to connect white or amber backlight, combined with the refined styling and premium features of the light, this is a product to stand-out day and night.

At 13โ€ in length and weighing just 2.4lbs, the LR-850 is built tough yet delivers a serious punch despite its relatively diminutive proportions. โ€˜Premium binโ€™ high intensity LEDs, upgraded in 2020/1, deliver 6930 raw lumen at a natural 5000k color temperature. The long-range lighting is supplemented by a 19 degree spread of light ensuring a comfortable night drive experience, even over prolonged periods of time.

Like all aspects of the products design, nothing has been left to chance in pursuit of the best lighting performance, while also maximising the lights longevity and reliability. All LR Series lights come with a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many yearsโ€™ time.

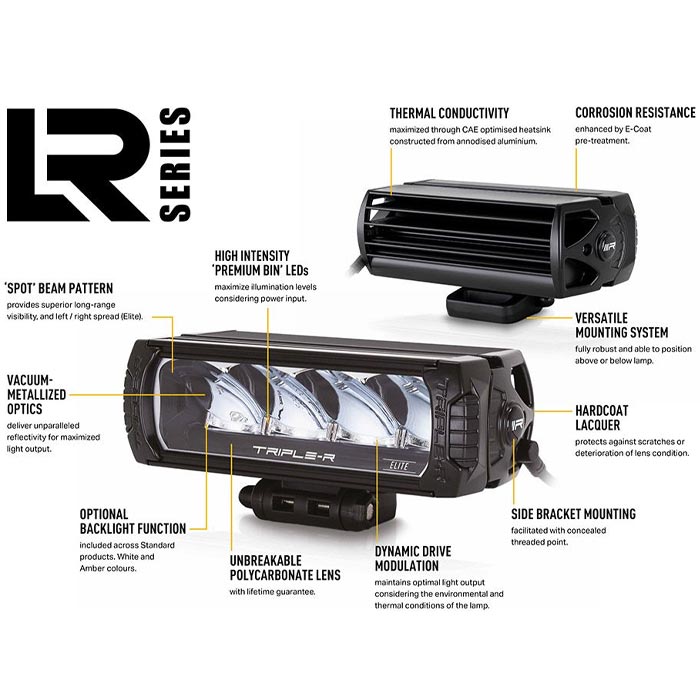

Highly efficient LED technologies (upgraded in 2020/21)

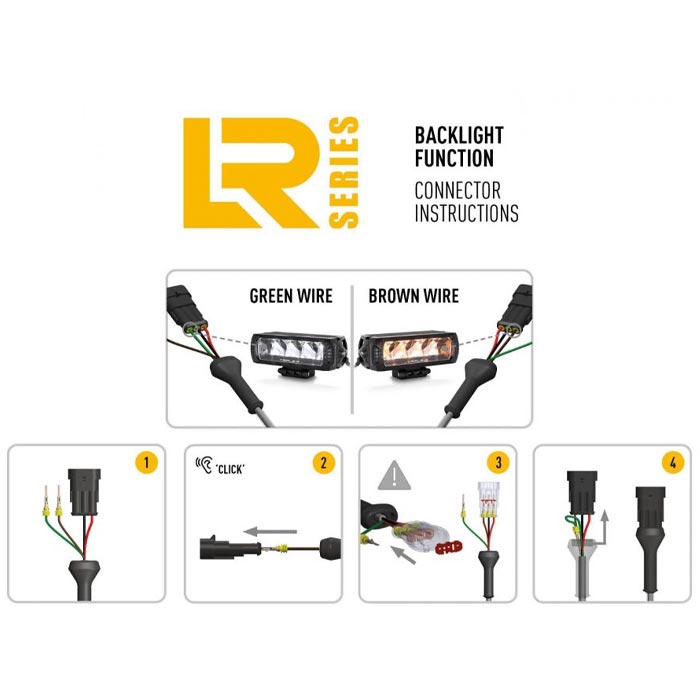

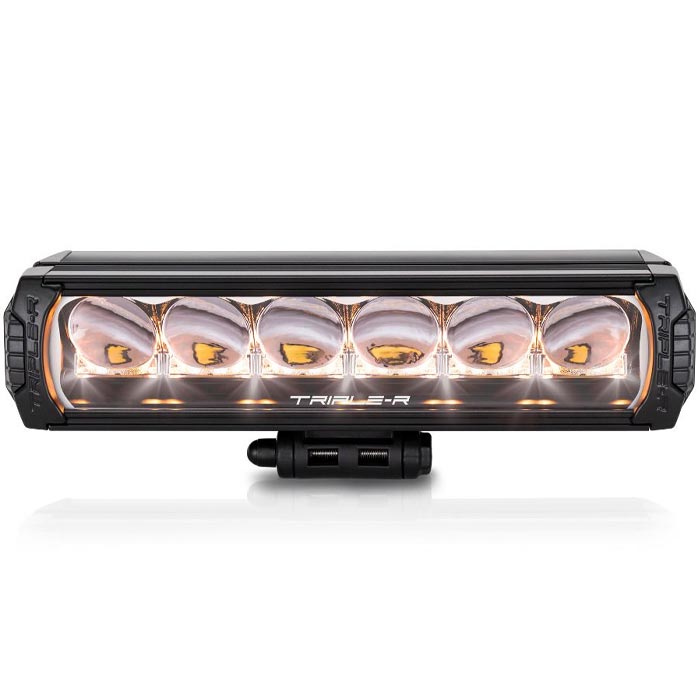

Integrated white or amber backlight function

Ultra-reflective vacuum-metallised optics deliver spot beam pattern

Contemporary lamp design

Includes versatile โ€˜Centre Mountโ€™ mounting system plus integral features to enable side mounting (brackets sold separately)

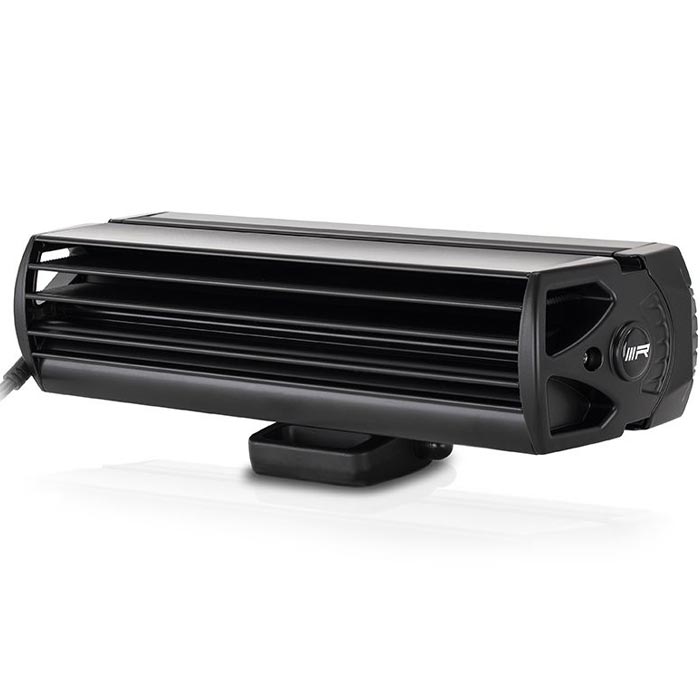

CAE optimised heatsink offers improved thermal dynamics

Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection

Electronic thermal management

Pressure equalization through GoreTex Breather technology

โ€˜Unbreakableโ€™ and hardcoated polycarbonate lens

IP67 watertight

5-year warranty

Wiring harness kits available

Designed & manufactured in the UK


NOT FOR HIGHWAY USE

PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.

Technical Specifications

Based on: 1x LR-850.

Voltage Range 10-32V
LED Life 50,000 hours
Weight 2.4lbs
HIGH BEAM FUNCTION ย
Total Luminous Flux 6930 Lm
Total Driver 'FOV' Flux โ€  4179 Lm
Color Temperature 5000k
Number of High Output LEDs 6
Power Consumption 66 Watts
Current Draw (at 14.4V) 4.6 Amps

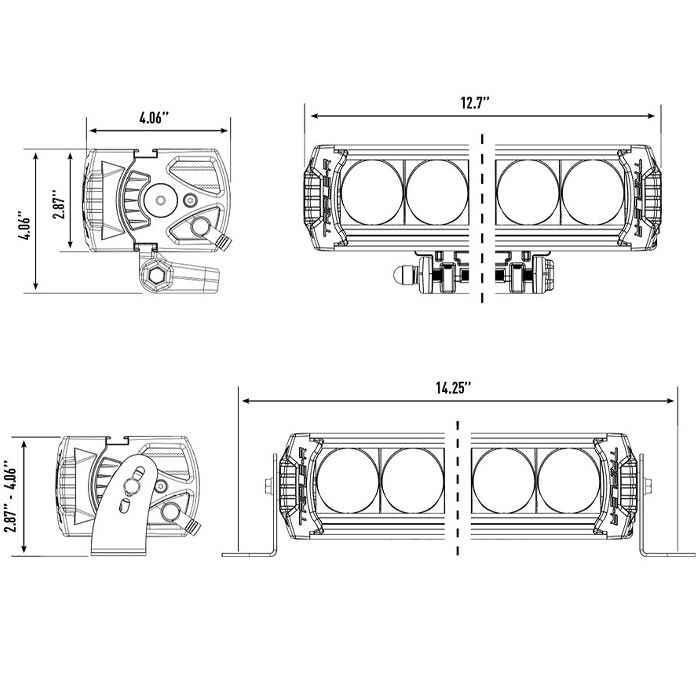

DIMENSIONS ย
Length 12.7"
Depth 4.06"
Height 2.87"

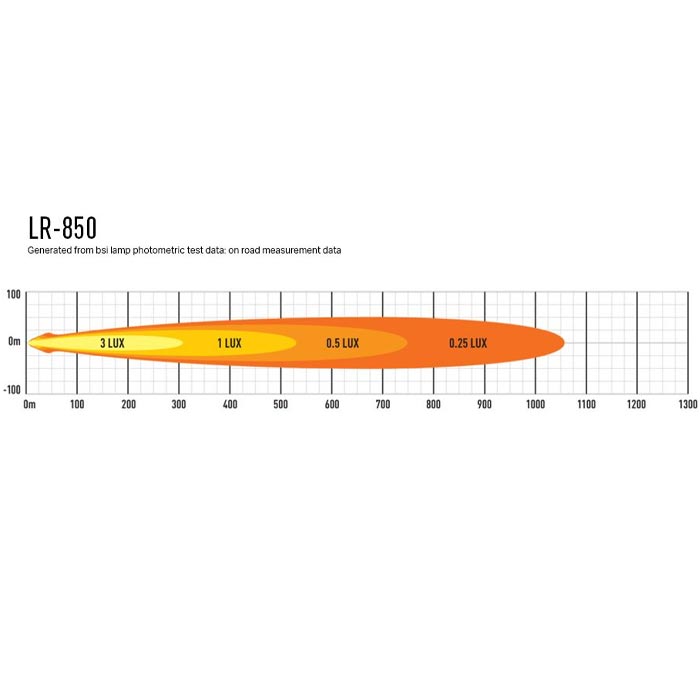

PHOTOMETRIC DATA ย

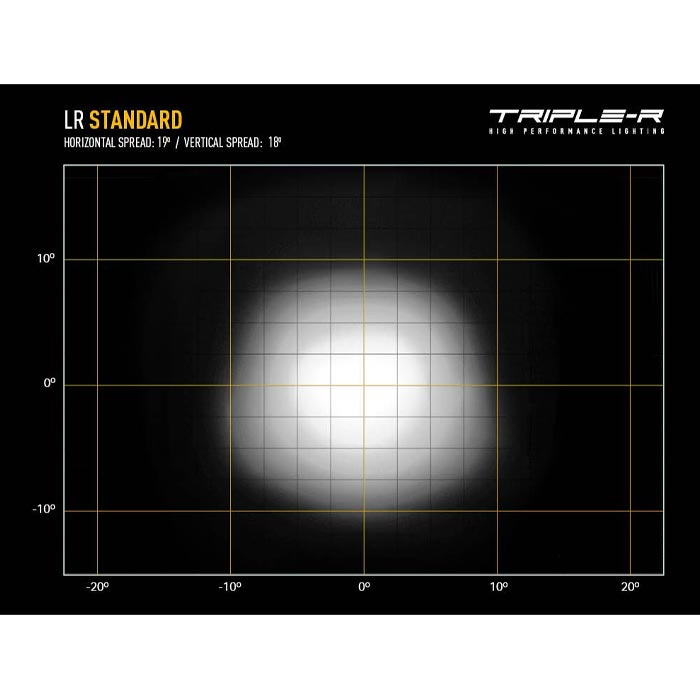

Horiz Beam Angle 19 Deg
0.25 lx Line 1061 metres
0.5 lx Line 750 metres
1 lx Line 530 metres
3 lx Line 306 metres

โ€  Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
