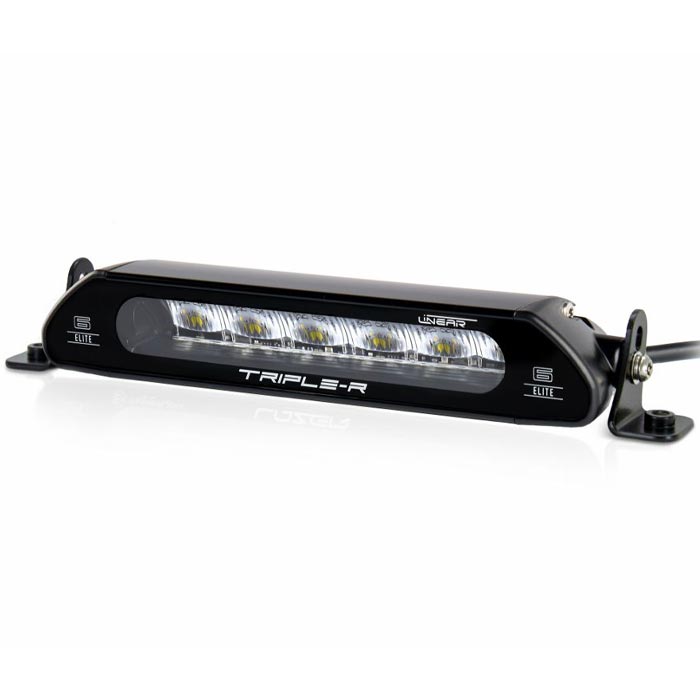

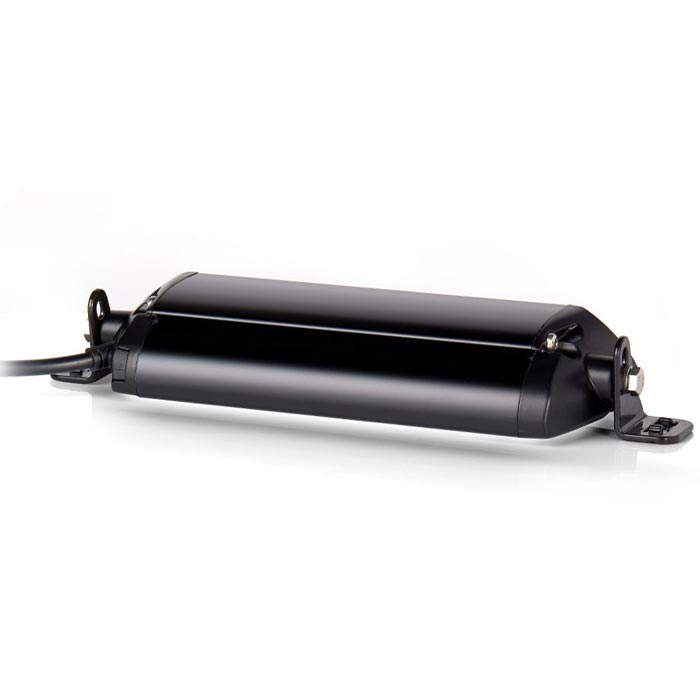

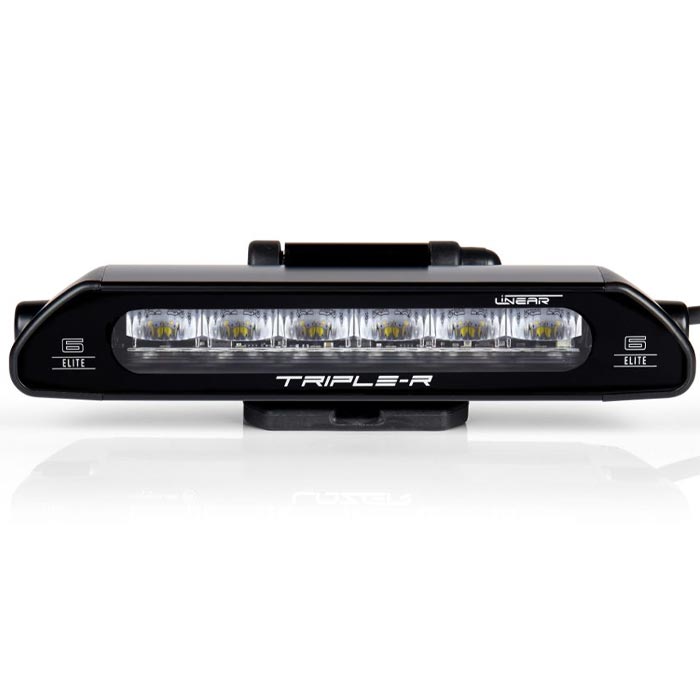

Linear-6 Elite

LNR-EL-6

Regular price $350.00 CAD
/
Free Shipping on orders over $200.

Linear-6 Elite
Triple-R Lightsย subsidiaryย of Lazer Lamps UK

The Linear-6 Elite utilizes a combination of 12x highly efficient 3W LEDs which combine to deliver 4,050 raw lumens, and 1 lux to over 280m. Impressive considering the lamp weighs a little over 1lbs and has power consumption of just 42W. Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (42 degrees spread). The color temperature of the light at 5000K is carefully selected for its natural appearance proven to reduce driver fatigue.

At a little over 9โ€ in length and under 2โ€ in height, the Linear-6 Elite is easy to fit in tight and confined spaces, while the clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while stainless steel anti-theft fasteners means the light will stay safe and secure.

Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many yearsโ€™ time.

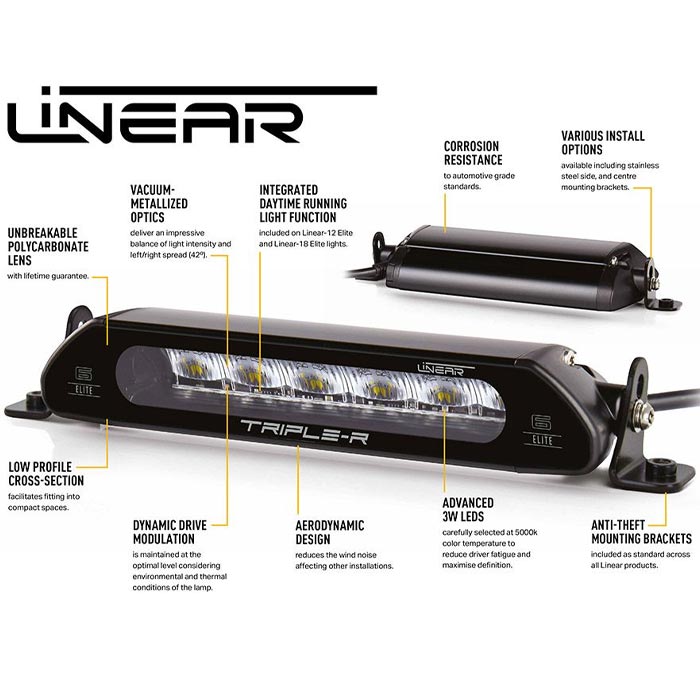

  • Combination of highly efficient 3W โ€˜premium binโ€™ LEDs
  • Vacuum-metallized optics deliver wide spread of light
  • Flexible mounting options โ€“ anti-theft mounting brackets included
  • Sleek, low profile design facilitates installation
  • Electronic thermal management
  • Pressure equalization through GoreTex Breather technology
  • โ€˜Unbreakableโ€™ polycarbonate lens with hardcoat lacquer
  • IP67 watertight
  • 5 year warranty
  • Supplied with male/female connectors (pre-wired)
  • Designed & manufactured in UK

PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.

Based on: 1x Linear-6 Elite.

Voltage Range 10-32V
LED Life 50,000 hours
Weight 1.1 lbs
HIGH BEAM FUNCTION ย
Total Luminous Flux 4050 Lm
Total Driver 'FOV' Fluxย โ€  2884 Lm
Color Temperature 5000K
Number of High Output LEDs 12
Power Consumption 42 Watts
Current Draw (at 14.4V) 2.9 Amps

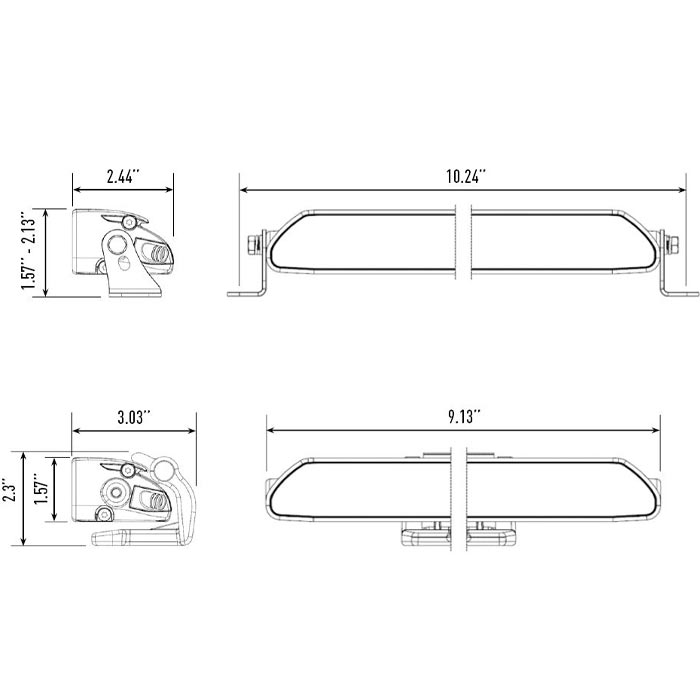

DIMENSIONS ย
Width 9.13"
Depth 2.44"
Height 1.57"

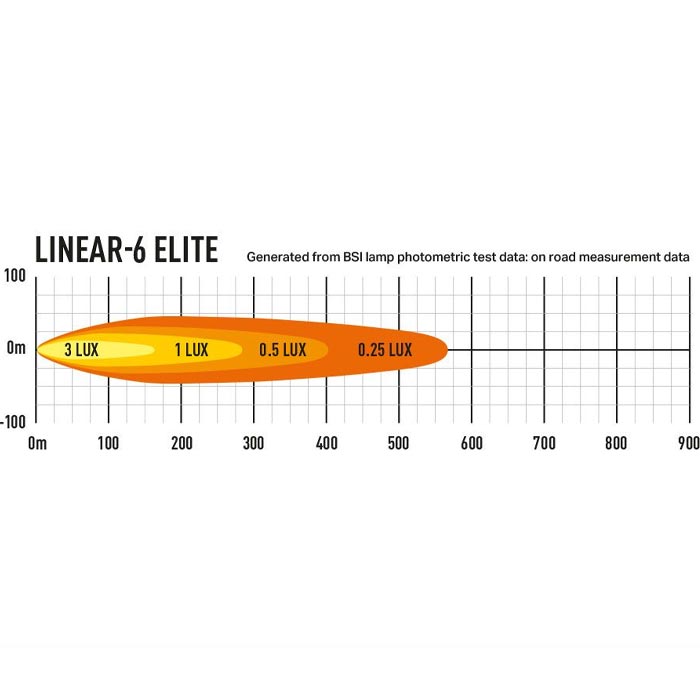

PHOTOMETRIC DATA ย

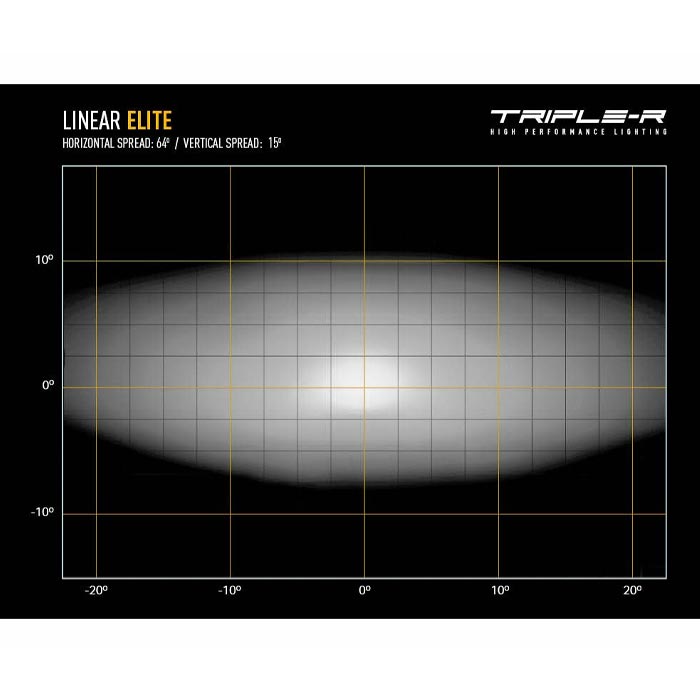

Horizontal Beam Angle 64 degrees
0.25 lx Line 563 metres
0.5 lx Line 398 metres
1 lx Line 282 metres
3 lx Line 163 metres

โ€  Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
