Linear-12 Elite


Regular price $540.00 CAD
Free Shipping on orders over $200.

Linear-12 Elite
Triple-R Lights subsidiary of Lazer Lamps UK

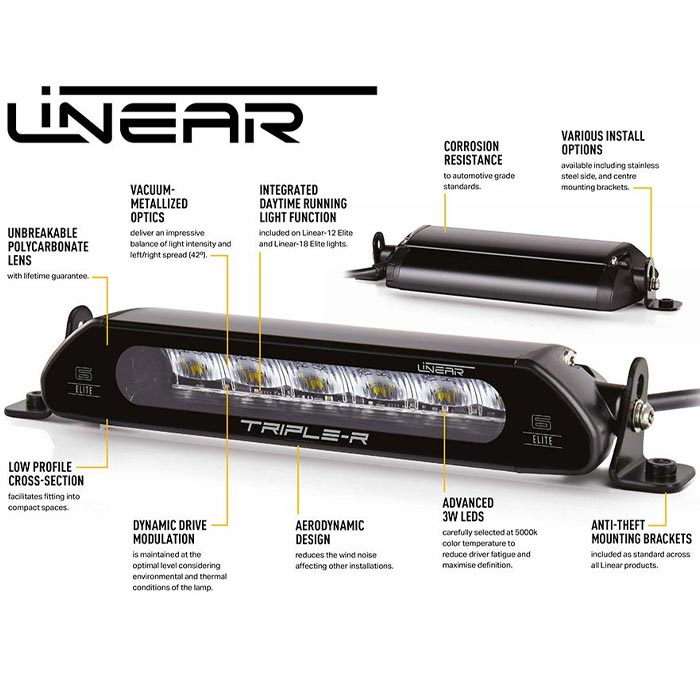

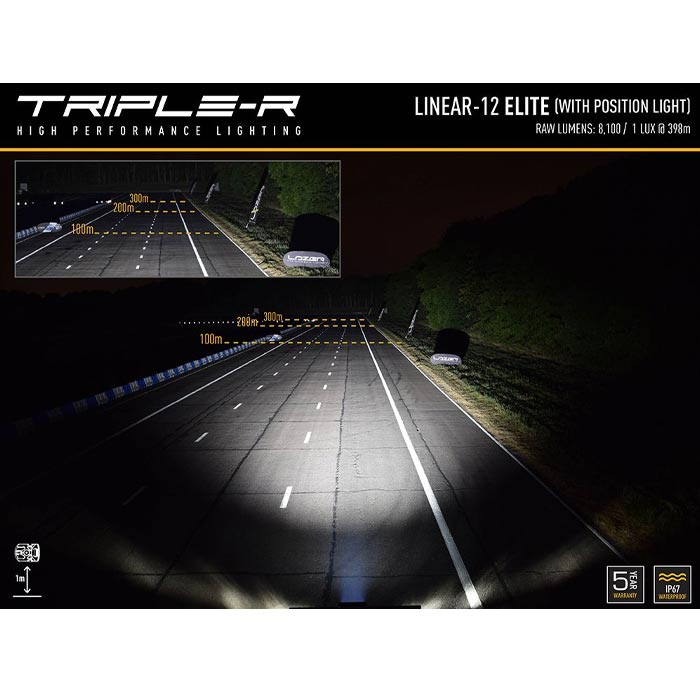

The Linear-12 Elite utilizes a combination of 24x highly efficient 3W LEDs which combine to deliver 8,100 raw lumens, and 1 lux to just under 400m. Impressive considering the lamp weighs under 2lbs and has power consumption of just 84W. Vacuum-metallized high-reflectivity optics are carefully designed and engineered in-house utilizing the latest CAD design and light simulation software, to deliver optimum light distribution in a drive beam pattern (42 degrees spread). The color temperature of the light at 5000K is carefully selected for its natural appearance proven to reduce driver fatigue. Integrated Daytime Running Lights provide a unique appearance to the light.

At 15” in length and under 2” in height, the Linear-12 Elite is easy to fit in tight and confined spaces, while the clean design of the Linear range provides for a premium look to impress on any vehicle. Supplied stainless steel side brackets allow flexibility in the mounting location and position, while anti-theft fasteners means the light will stay safe and secure.

Like all Triple-R light bars the Linear range benefits from a comprehensive 5 year warranty, and a lifetime guarantee on the polycarbonate lens. Dynamic control modulation, which regulates the light output considering any extreme environmental and thermal conditions of the lamp, helps protect the electronic components from heat damage, and ensures the light performs as well today as it will in many years’ time.

  • Combination of highly efficient 3W ‘premium bin’ LEDs
  • Integrated Daytime Running Lights
  • Vacuum-metallized optics deliver wide spread of light
  • Flexible mounting options – anti-theft mounting brackets included
  • Sleek, low profile design facilitates installation
  • Electronic thermal management
  • Pressure equalization through GoreTex Breather technology
  • ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
  • IP67 watertight
  • 5 year warranty
  • Supplied with male/female connectors (pre-wired)
  • Designed & manufactured in UK


Technical Specifications

Based on: 1x Linear-12 Elite (with DRL).

Voltage Range 10-32V
LED Life 50,000 hours
Weight 1.8 lbs
Total Luminous Flux 8100 Lm
Total Driver 'FOV' Flux † 5767 Lm
Color Temperature 5000k
Number of High Output LEDs 24
Power Consumption 84 Watts
Current Draw (at 14.4V) 5.8 Amps

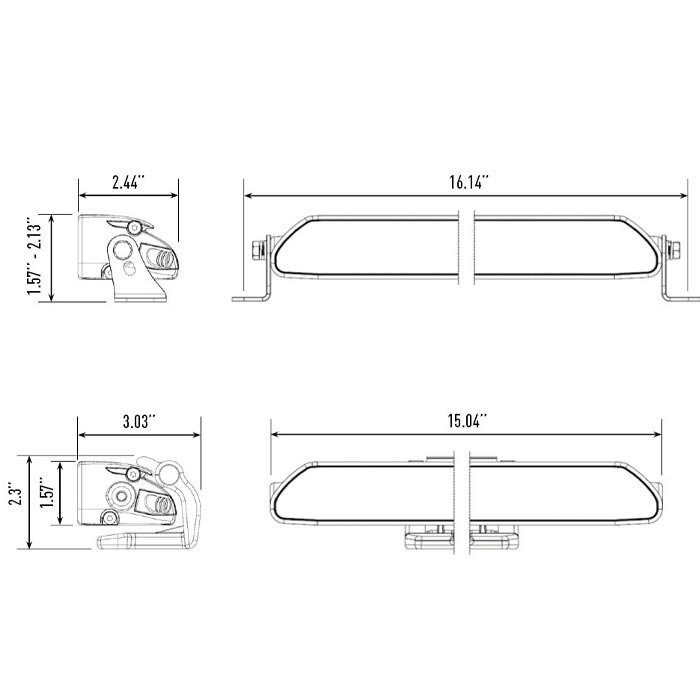

Width 15.0"
Depth 2.44"
Height 1.57"

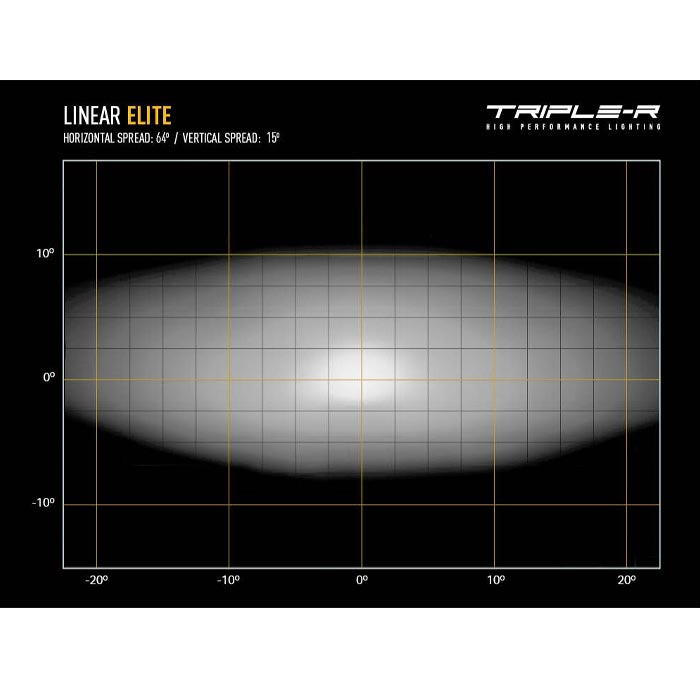

Horizontal Beam Angle  64 Degrees

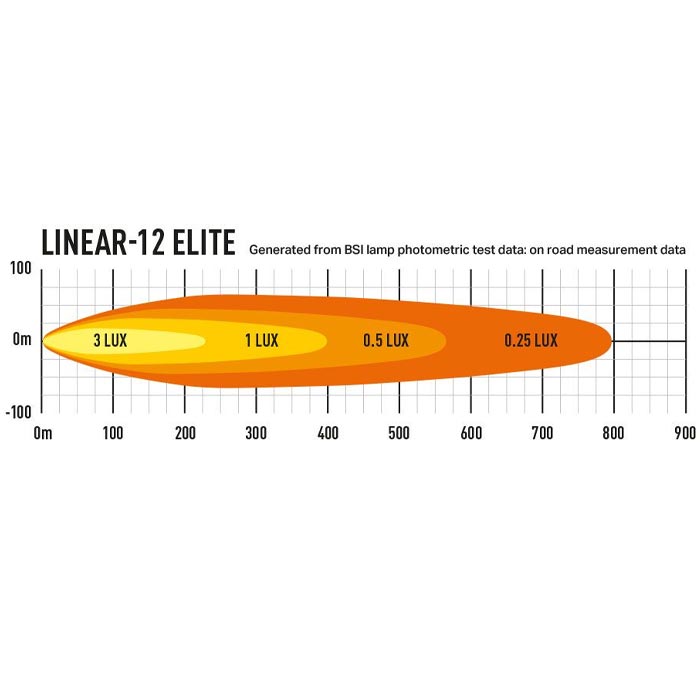

0.25 lx Line 796 metres
0.5 lx Line 563 metres
1 lx Line 398 metres
3 lx Line 230 metres

† Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down.
