Ford Ranger Lariat 2019+ Grille Mount Kit

GM-USFRL-02K

Regular price $250.00 CAD
/
Free Shipping on orders over $200.

Ford Ranger 2019+ Grille Mount Kit for LR 750 Lights
Triple-R LightsΒ subsidiaryΒ of Lazer Lamps UK

For an OE quality, auxiliary LED light bar installation, the Triple-R Grille Integration Kits are custom-fit mounting brackets which allow for quick and easy fitting of Triple-R LED light bars within the front grille of a growing number of the most popular road cars, pick-up trucks, and light commercial vehicles. Designed to blend seamlessly within the original styling of each vehicle, the resulting setup remains fully robust and secure.

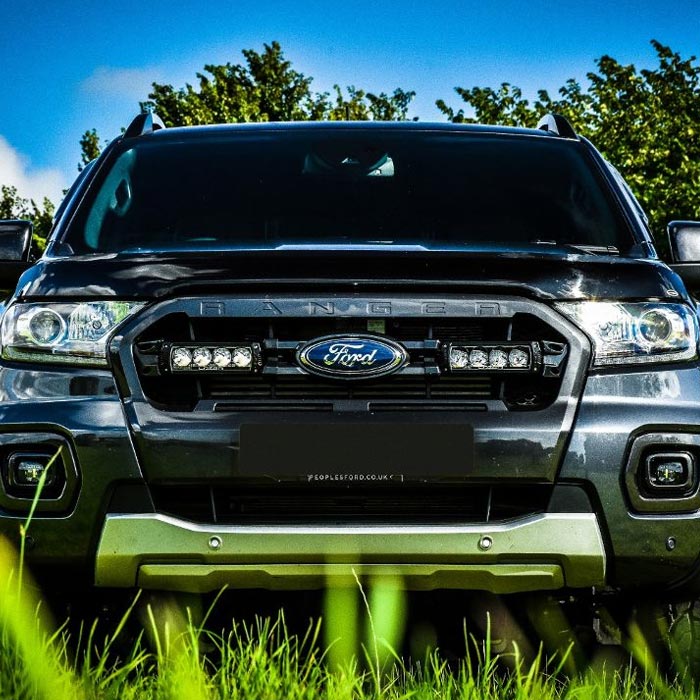

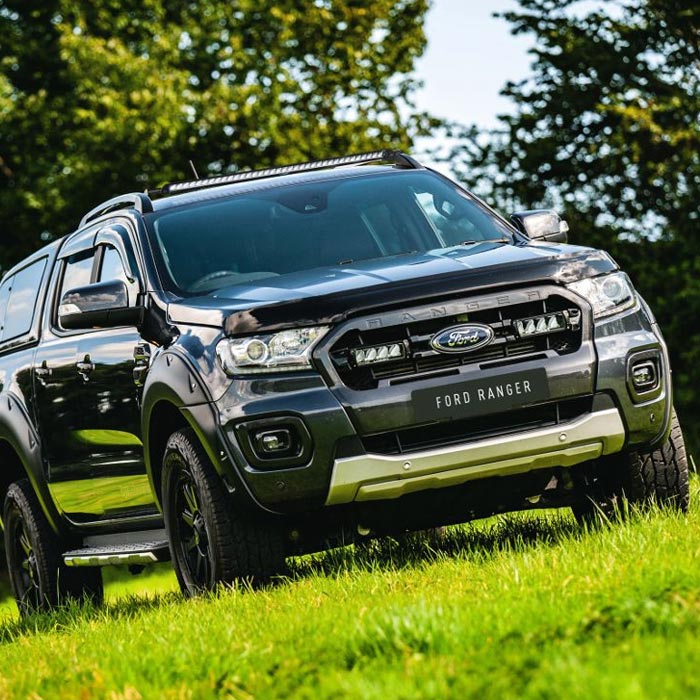

The Ford Ranger Lariat (2019+) integration kit is meticulously designed and engineered to fit a pair of LR-750 High Performance LED lights. The 4x mounting brackets are precision-engineered to engage perfectly with the standard centre grille on the vehicle, with added strength and security provided by the supplied self-tapping (plastic) screws. Made from ASA material, known for its excellent strength and UV stability, the brackets are fully weather and chemical resistant to ensure your installation remains in great condition year after year. The fitting is quick and simple and can be completed with the original grille left on the vehicle. Supplied cutting guides facilitate a perfect install every time.

  • Custom-fit mounting bracket kit for LR-750 LED lights installation
  • To fit Ford Ranger Lariat (2019+)

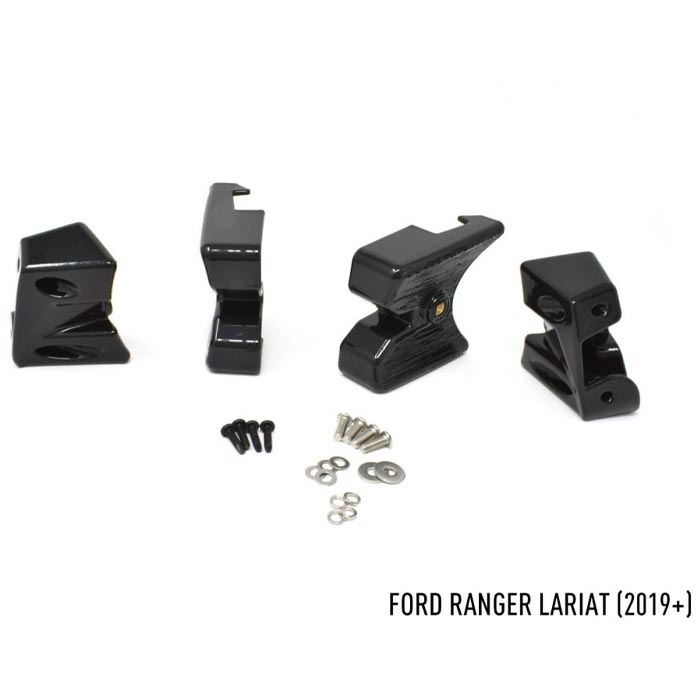

  • Kits include: 4x brackets, cutting guides, and fasteners
  • Installation completed using original grille left on the vehicle
  • Made from high strength, UV-stable, ASA material
  • 5-year warranty
  • Made in UK

PLEASE NOTE: LIGHTS AND WIRING HARNESS KIT SOLD SEPARATELY.

Based on: 2x LR-750.Β

Voltage Range 10-32V
LED Life 50,000 hours
Weight 2 kg
HIGH BEAM FUNCTION Β
Total Luminous Flux 9240 Lm
Colour Temperature 5000K
Number of High Output LEDs 2 x 4
Power Consumption 88 Watts
Current Draw (at 14.4V) 6.2 Amps

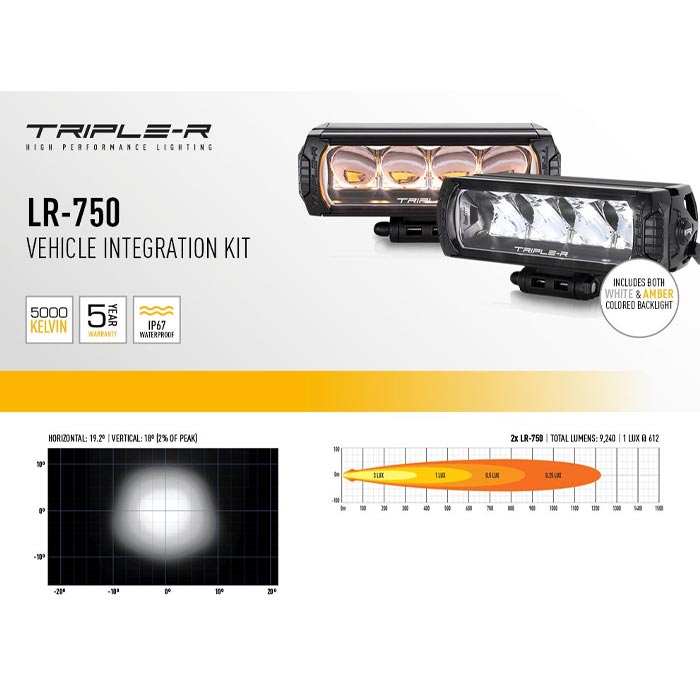

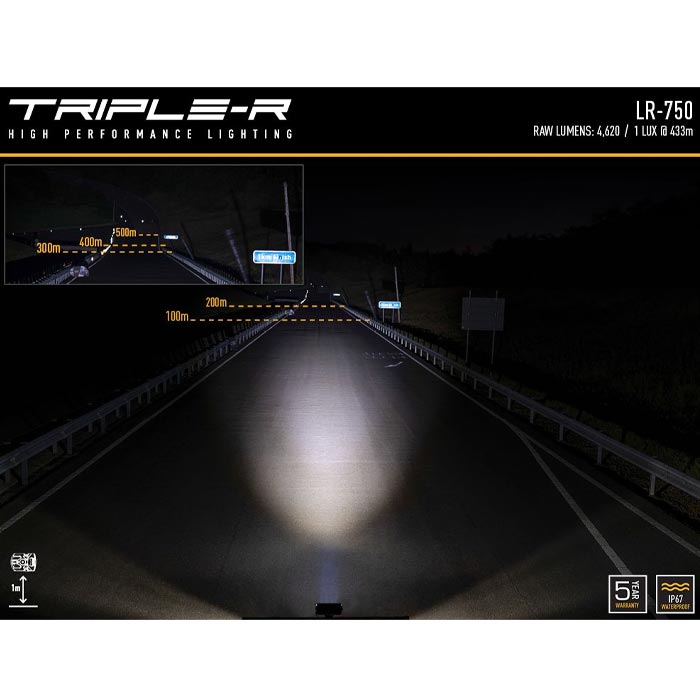

PHOTOMETRIC DATA Β
Horizontal Beam AngleΒ  19 Degrees
0.25 lx Line 1225 metres
0.5 lx Line 866 metres
1 lx Line 612 metres
3 lx Line 354 metres

PLEASE NOTE: LIGHTS AND WIRING HARNESS KIT SOLD SEPARATEL

Sentinel (Standard wi

Optimised for use with all LR Series LED lights or ST4 Evolution lig
